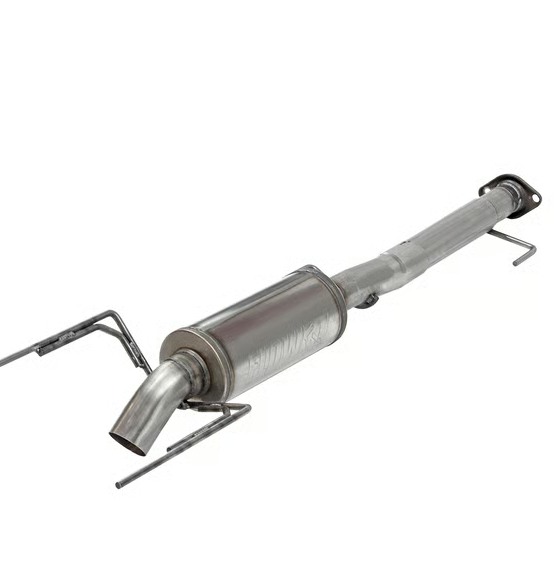

Flowmaster introduces our Flow FX Extreme stainless steel cat-back exhaust system for the 2003-2024 Toyota 4Runner with the 4.0-liter engine. This system uses a Flow FX series muffler for an aggressive sound level and increased performance. 3.00-inch mandrel bent 409 stainless steel tubing allows for maximum exhaust flow and durability. The system has a turndown style, dump exit right after the muffler to eliminate the over-axle tailpipe. This elimination of the tailpipe helps improve ground clearance and departure angle when you are driving in more extreme off-road situations. This system produced max dyno gains of 4 hp and 5 lb-ft at the rear wheels. All of the necessary hardware is included, and factory-mounting locations are used for an easy installation. Backed by Flowmaster's Lifetime Limited Warranty.
Features:
- FlowFX Series performance muffler offers an aggressive sound level and increased performance
- 409 stainless steel construction delivers extra durability and improved long-term corrosion resistance

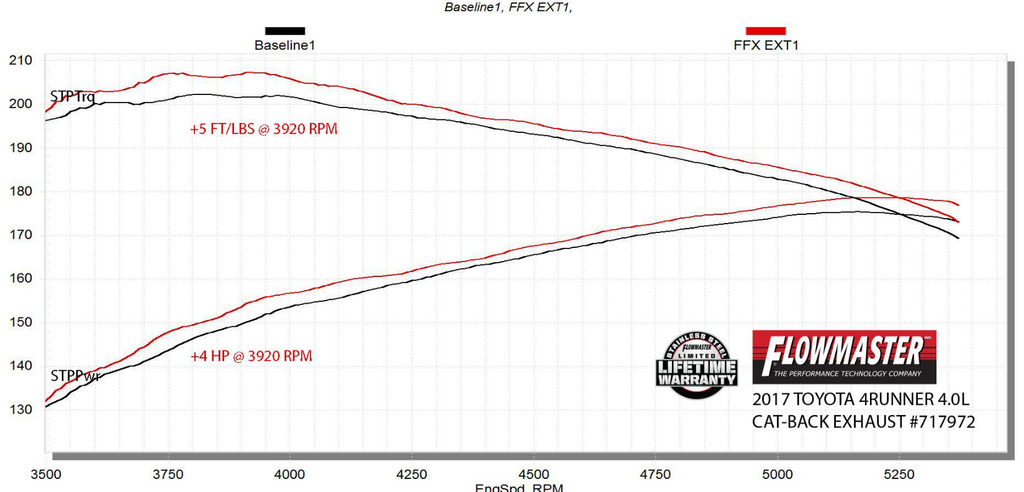

- Max dyno gains of 4 hp and 5 lb-ft at the rear wheels
- 3.00-inch 16-gauge mandrel bent stainless steel tubing helps maintain maximum exhaust flow for better power
- Includes all necessary hardware for an at home installation
- Dump style exit allows for better ground clearance when in extreme off-road conditions
- Uses factory hanger locations for easy installation
- Lifetime Limited Warranty
| Brand |
Flowmaster |
| Catalytic Converter Quantity |
0 |
| Category |
Exhaust |
| Clamping Type |
Flat Band |
| Clamps Included |
Yes |
| Emission Code |
5 |
| Exhaust Series |
FlowFX |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Tip Color |
Silver |
| Exhaust Tip Connection |
Welded |
| Exhaust Tip Cut |
Straight |
| Exhaust Tip Diameter |
3.00 IN |
| Exhaust Tip Edge |
Slash Cut |
| Exhaust Tip Finish |
Natural |
| Exhaust Tip Intercooled |
No |
| Exhaust Tip Material |
409 Stainless Steel |
| Exhaust Tip Quantity |
1 |
| Exhaust Tip Resonated |
No |
| Exhaust Tip Shape |
Round |
| Exhaust Tip Wall |
Single Wall |
| Exit Position |
SOD (Single Out Dump) |
| Exit Style |
Single Out Dump |
| Finish |
Natural |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| Hangers Included |
Yes |
| Inlet Type |
Flanged |
| Main Piping Diameter |
3.00 IN |
| Material |
409 Stainless Steel |
| Mount Type |
Uses factory hangers |
| Mounting Bracket Included |
No |
| Muffler Body Diameter |
6.00 IN |
| Muffler Body Length |
14.00 IN |
| Muffler Body Material |
409 Stainless Steel |
| Muffler Body Shape |
Round |
| Muffler Color |
Silver |
| Muffler Finish |
Natural |
| Muffler Flanged Inlet |
No |
| Muffler Flanged Outlet |
No |
| Muffler Inlet Connection |
Slip-Fit |
| Muffler Inlet Diameter |
3.00 IN |
| Muffler Inlet Inside Diameter |
3.00 IN |
| Muffler Inlet Location |
Center |
| Muffler Inlet Outside Diameter |
3.13 IN |
| Muffler Material |
409 Stainless Steel |
| Muffler Outlet Diameter |
3.00 IN |
| Muffler Outlet Quantity |
1 |
| Muffler Overall Length |
40.00 IN |
| Muffler Part Number |
Kit Only |
| Muffler Quantity |
1 |
| Muffler Series |
FlowFX |
| Muffler Shape |
Round |
| Muffler Type |
Absorption |
| part type |
Exhaust System Kit |
| Pipe Material |
409 Stainless Steel |
| Product Type |
Exhaust System |
| Single Dual |
Single |
| Sound Level |
Aggressive |
| Spring Bolt Kit Included |
No |
| Sub Category |
Exhaust and Tail Pipes |
| System Type |
Cat-back |
| Tail Pipe Outlet Outside Diameter |
3.00 IN |
| Tail Pipe Quantity |
1 |
| Tail Pipe Tapered Outlet |
No |
| Tip Cut |
Turndown |
| Tip Diameter |
3.00 IN |
| Tip Edge Style |
Cut |
| Tip Shape |
Round |
| Tip Style |
Not Included |
| Tubing Diameter |
3.00 IN |
| Tubing Material |
409 Stainless Steel |
| Type |
Cat-Back |
| Valve Included |
No |
| Valve Type |
Not Applicable |
| UPC |
090127129739 |
