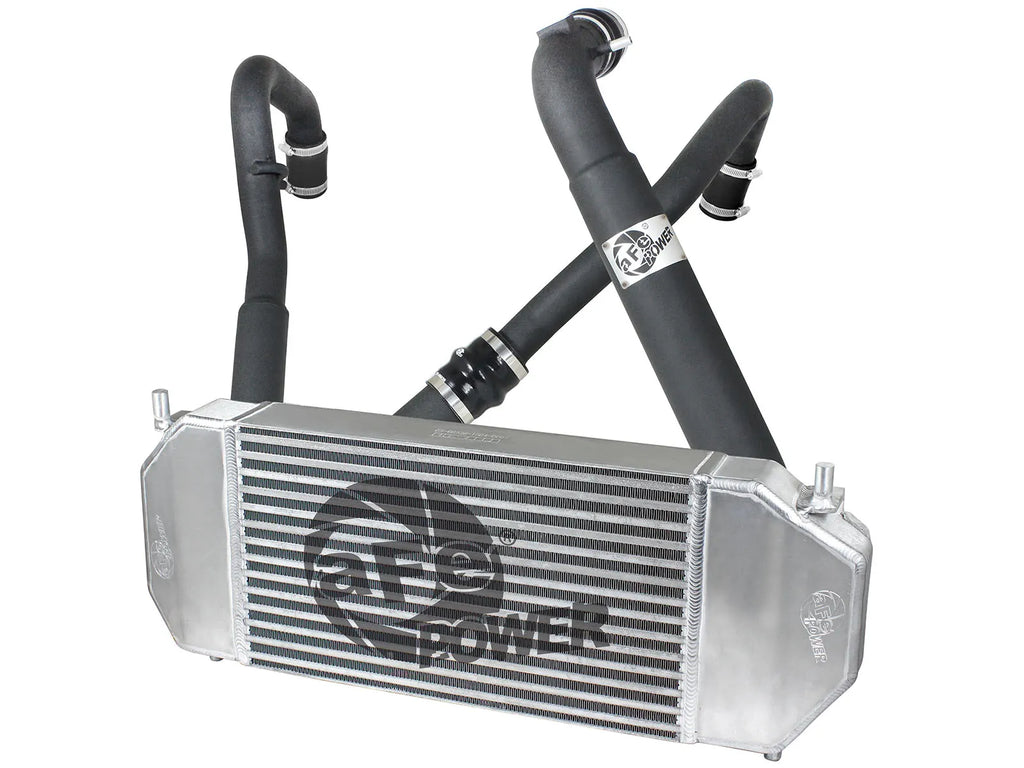

aFe Bladerunner Intercooler with Tubes 2015 - 2017 Ford F-150 V6 2.7 (tt)

46-20202-B

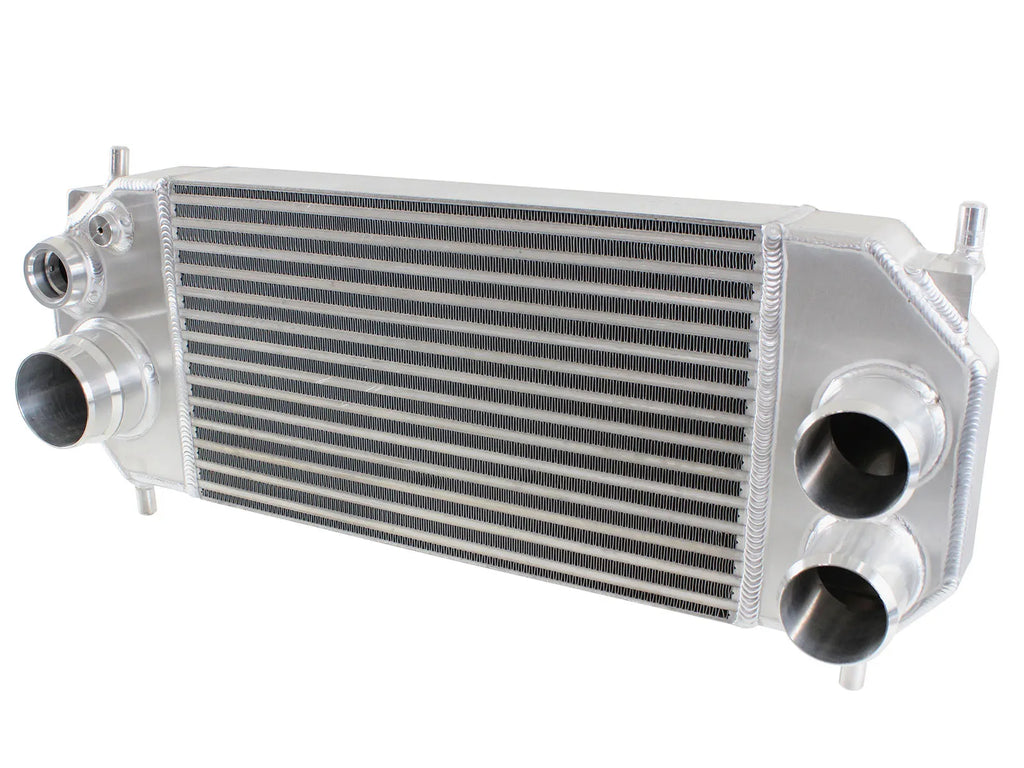

This BladeRunner GT intercooler's bar and plate core design is larger than stock, outflowing the OE intercool setup for more power.

• Outflows Stock Intercooler and Tube Set by 14%
• Heavy-Duty 3/16" TIG-Welded Aluminum End Tanks
• 3" Bar and Plate Core Allows for Greater Airflow and Increased Heat Dissipation
• Powder-Coated 2" to 2-1/2" Hot Side and 3-1/2" to 3" Cold Side Mandrel-Bent Aluminum Tubing
• Includes Premium Clamps, 5-Ply Reinforced Silicone Couplings, and Billet Aluminum Quick Connect Adapter
• Uses Factory Mounting Locations and Includes all Necessary Hardware for a Hassle-Free Installation

End Tanks:
The unique BladeRunner end tanks are constructed out of 3/16'' TIG-Welded aluminum plates.

3" Bar and Plate Core Design:
The use of the bar and plate core design allows for greater airflow.

Billet Aluminum Inlet/Outlets:
This BladeRunner Intercooler uses dual 2-1/2" inlets and a 3" outlet for superior strength and durability.

TIG-Welded:
100% TIG-welded by certified craftsmen for race proven strength and durability. TIG-welding provides the strongest welds reducing stress cracks.

Flow and Performance:
aFe POWER's hot side tubes are constructed from 2 and 2-1/2" mandrel-bent aluminum tubing and the cold side tube is constructed from 3-1/2" and 3 mandrel-bent aluminum tubing for maximum flow then, powder-coated for a nice finish. Smooth transition bends decrease turbulence and minimize pressure loss, while increasing horsepower and torque. Together this kit outflows the factory intercooler and tube set up.

Condensation Drain:
The intercooler includes a 1/8" NPT brass breather vent, which drains condensation from the intercooler. The port can also be plugged using the included 1/8" NPT plug.

aFe POWER Badging:
A unique laser-cut aFe POWER logo plate is welded-onto the intercooler tubes for an aggressive style.

Installation Is A Snap:
Lines up directly to factory mounting locations and comes complete with hi-temp 5-ply reinforced silicone couplings and high quality stainless steel clamps for a secure fit.
