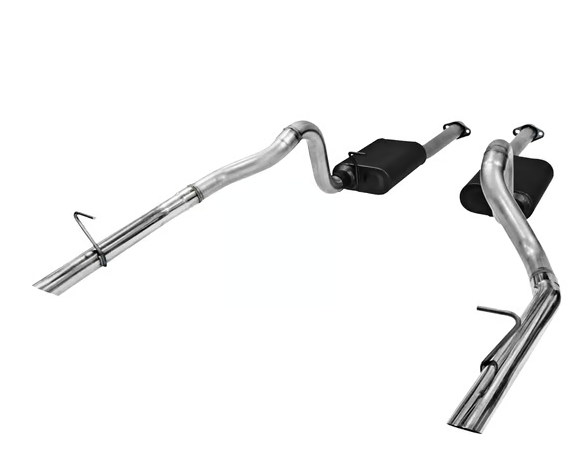

Our American Thunder® exhaust system for 1986-1993 Ford Mustang LX (Fox body) with the 5.0L engine is a bolt-on emissions legal system. Features free-flowing 2.50-inch mandrel-bent stainless steel inlet pipes flowing into a pair of Super 44® Series mufflers for that deep iconic sound of the 5.0L engine. The 2.50-inch mandrel-bent stainless steel tailpipes use the factory hanger locations for a quick and easy installation and the system is finished off with a pair of long 2.50-inch 304 stainless steel tips for that show car look. Includes all necessary parts, hardware and easy to follow instructions and is covered by our Lifetime Limited Warranty. Note: Fits coupes and convertibles. Also fits 1986 Ford Mustang GT models with 5.0L engine
Features:
- Includes Hangers and Hardware for Easy Installation
- Mandrel-bent 16-gauge Stainless Steel Tubing
- Aggressive Sound Exterior Exhaust Tone
- Dyno Tuned for Maximum Performance
- Super 44 Series Performance Mufflers
- Uses the Factory Hanger Locations
- 304 Stainless Steel Tailpipes
- Lifetime Limited Warranty
- Easy Installation
| 2WD/4WD |
2WD |
| Brand |
Flowmaster |
| Catalytic Converter Quantity |
0 |
| Category |
Exhaust |
| Clamping Type |
Flat Band |
| Clamps Included |
Yes |
| Emission Code |
5 |
| Exhaust Series |
American Thunder |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Tip Color |
Silver |
| Exhaust Tip Connection |
Welded |
| Exhaust Tip Cut |
Angled |
| Exhaust Tip Diameter |
2.50 IN |
| Exhaust Tip Edge |
Slash Cut |
| Exhaust Tip Finish |
Polished |
| Exhaust Tip Intercooled |
No |
| Exhaust Tip Length |
24.50 IN |
| Exhaust Tip Material |
304 Stainless Steel |
| Exhaust Tip Quantity |
2 |
| Exhaust Tip Resonated |
No |
| Exhaust Tip Shape |
Round |
| Exhaust Tip Wall |
Single Wall |
| Exit Position |
Dual Out Rear |
| Exit Style |
Dual Out Rear |
| Finish |
Natural |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| Hangers Included |
Yes |
| Heat Shield |
No |
| Inlet Diameter |
2.50 IN |
| Inlet Type |
Clamp-On |
|
Weld-On |
| Main Piping Diameter |
2.50 IN |
| Material |
409 Stainless Steel |
| Mounting Bracket Included |
No |
| Muffler (Left) Body Height |
4.00 IN |
| Muffler (Left) Body Length |
13.25 IN |
| Muffler (Left) Body Width |
9.50 IN |
| Muffler (Left) Type |
Chambered |
| Muffler (Right) Body Height |
4.00 IN |
| Muffler (Right) Body Length |
13.25 IN |
| Muffler (Right) Body Width |
9.50 IN |
| Muffler (Right) Type |
Chambered |
| Muffler Body Height |
4.00 IN |
| Muffler Body Length |
13.25 IN |
| Muffler Body Material |
409 Stainless Steel |
| Muffler Body Shape |
Oval |
| Muffler Body Width |
9.50 IN |
| Muffler Finish |
Black High-Temperature Paint Finish |
| Muffler Flanged Inlet |
Yes |
| Muffler Flanged Outlet |
No |
| Muffler Inlet Connection |
Loose Flange |
| Muffler Inlet Inside Diameter |
2.50 IN |
| Muffler Inlet Outside Diameter |
2.63 IN |
| Muffler Outlet Connection |
Slip-Fit |
| Muffler Outlet Quantity |
1 |
| Muffler Part Number |
Kit Only |
| Muffler Quantity |
2 |
| Muffler Series |
Super 44 Series |
| Muffler Type |
Chambered |
| Outlet Diameter |
2.50 IN |
| part type |
Exhaust System Kit |
| Pipe Material |
409 Stainless Steel |
| Product Type |
Exhaust System |
| Single Dual |
Dual |
| Sound Level |
Aggressive |
| Spring Bolt Kit Included |
No |
| Sub Category |
Exhaust and Tail Pipes |
| System Type |
Cat-back |
| Tail Pipe Outlet Outside Diameter |
2.50 IN |
| Tail Pipe Quantity |
2 |
| Tail Pipe Tapered Outlet |
No |
| Tip Diameter |
2.50 IN |
| Tip Quantity |
2 |
| Tip Shape |
Round |
| Tubing Diameter |
2.50 IN |
| Type |
Cat-Back |
| Valve Included |
No |
| Valve Type |
Not Applicable |
| UPC |
700042022427 |
