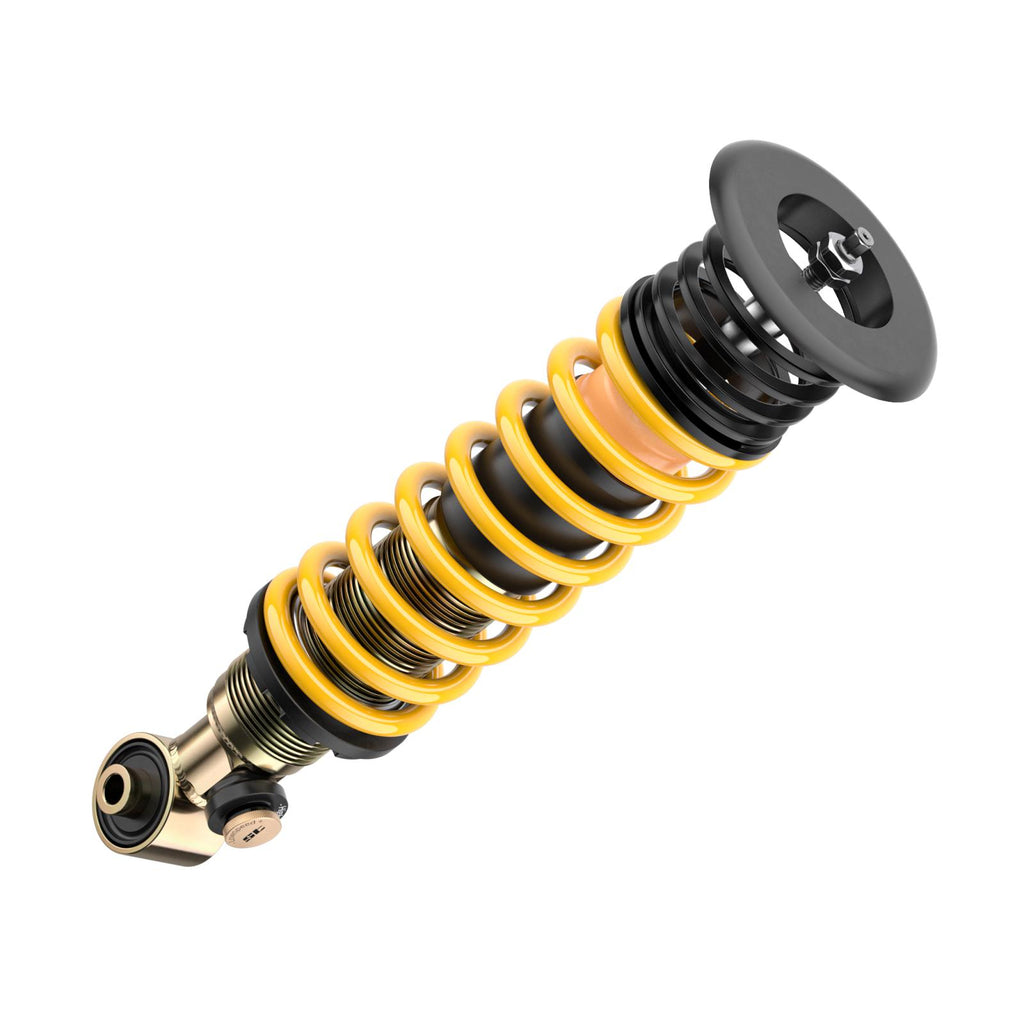

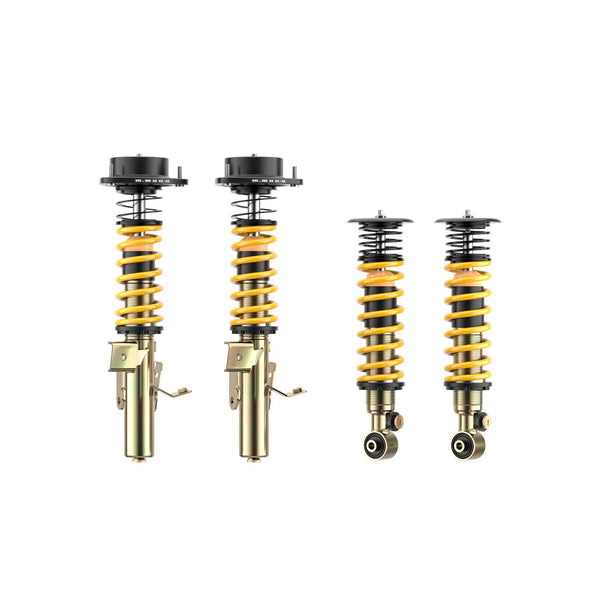

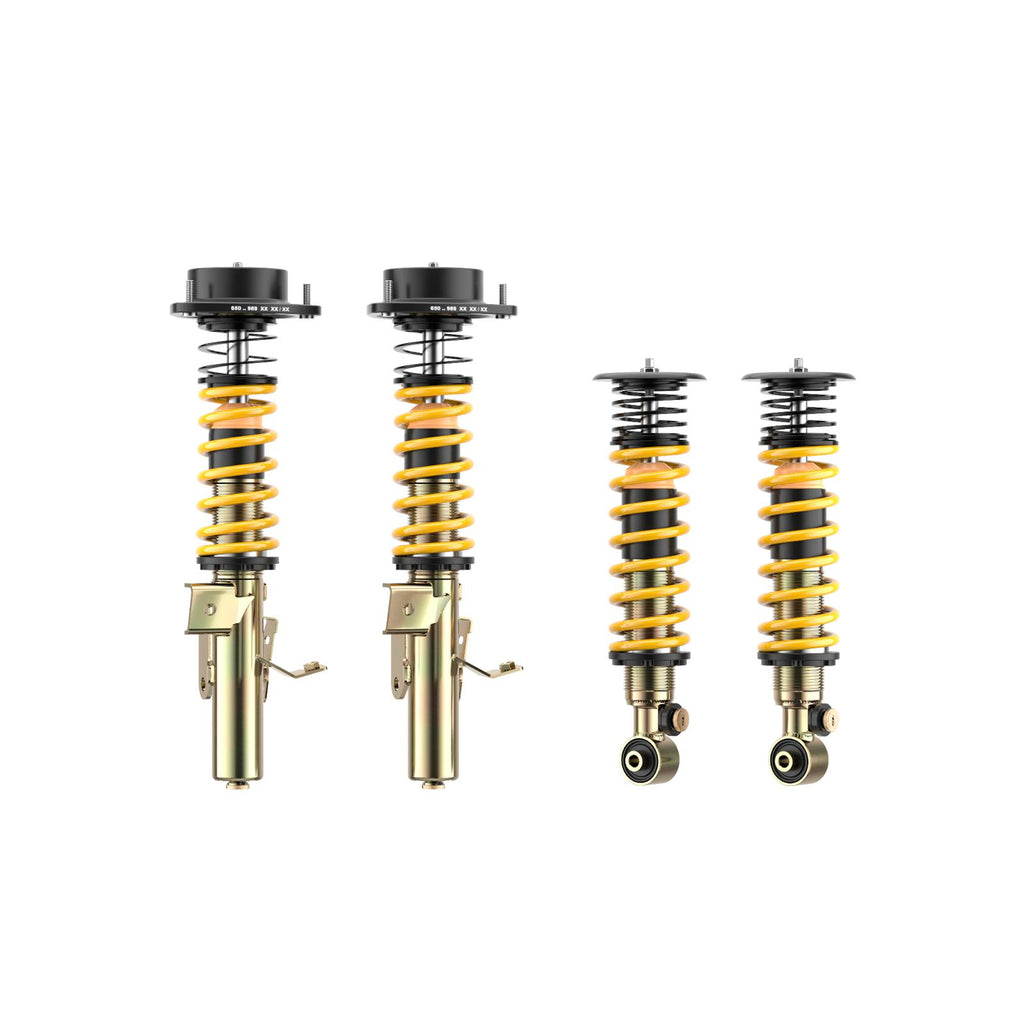

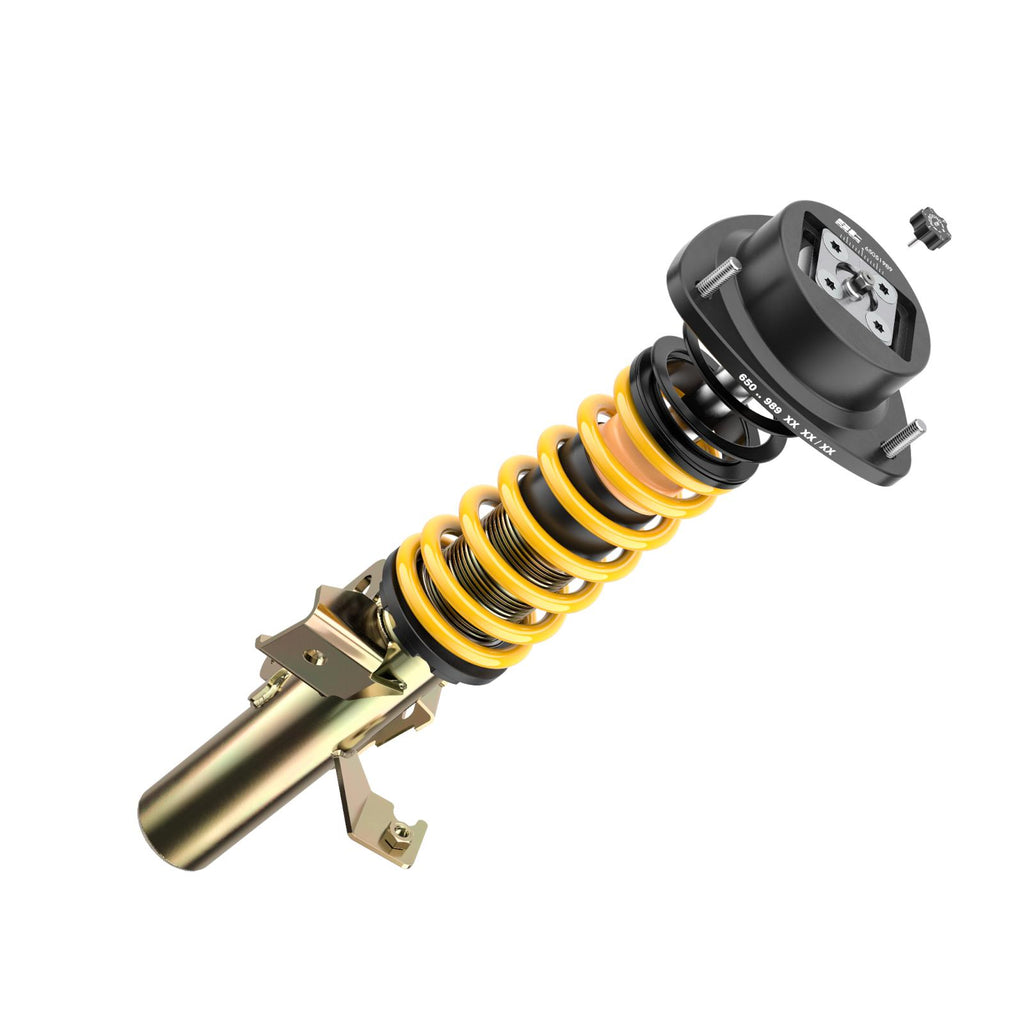

ST XTA-Plus 3 Adjustable Coilovers Subaru/Scion/Toyota BRZ/FRS/86

The XTA plus 3 coilover kit gives your car maximum performance for the road and the tools you need for any challenge.

From the factory, the XTA plus 3 coilover kit is equipped with KW dampers that are adjustable in high- and lowspeed compression as well as adjustable rebound damping. With 24 clicks of adjustment for each, high speed and low speed compression damping and 18 clicks of rebound adjustment, your suspension knows no limits. It doesn't matter if you bolt in an aftermarket roll cage, weld in a cage, modification to PU bushings upgrade to spherical bushing or changed wheel loads - the XTA plus 3 coilover has what it takes to keep your car dialed! Of course, the XTA plus 3 also includes a parts approval certificate, race springs and aluminium unibal top mounts.

Easy lowering adjustment

Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower!

KW Engineering: Exclusive for ST suspension

The high-quality ST XTA plus 3 coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.

Latest damping technology for maximum longevity

Reduced system friction for effective damping adjustment

Individual lowering within the tested adjustment range

Front and rear axle (when possible) with thread adjustment

Galvanized coilover struts with additional coating for an optimized corrosion protection

Complete solution with adjustable spring plate, race spring system and bumpers with dust protection

Aluminium adjustable uniball top mounts (when possible)

Scaled camber adjustment (optionally also caster), when possible

3-way adjustable dampers:

18 clicks low speed rebound damping

24 clicks low speed compression damping

24 clicks high speed compression damping
