JE Piston

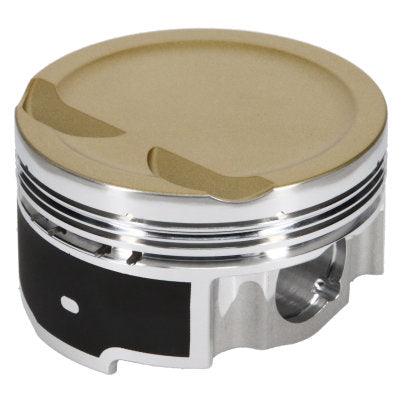

JE Pistons VW 2.0T TSI Ultra Series 23mm PIN - Set of 4 Pistons

$1,260.00

Shipping calculated at checkout.

Additional Product Specifications
Bore Diameter	82.50
Compression Height	1.155
Piston Head Type	Dish
Piston Volume	-5.7
Cylinder Head	2.0 TFSI
Piston Pin Outside Diameter	0.905
Piston Pin Length	2.250
Piston Pin Material	9310
Ringset Included	Yes
Top Compression Ring Thickness	0.04
Second Compression Ring Thickness	0.048
Oil Ring Thickness	0.111
Piston Material	2618
Forging Type	FSR
Piston Avg Weight	286
Pin Wall Thickness	0.210
Product Market	Sport Compact
Product Types	Piston Kits
Prop 65 Yes/No	Yes
