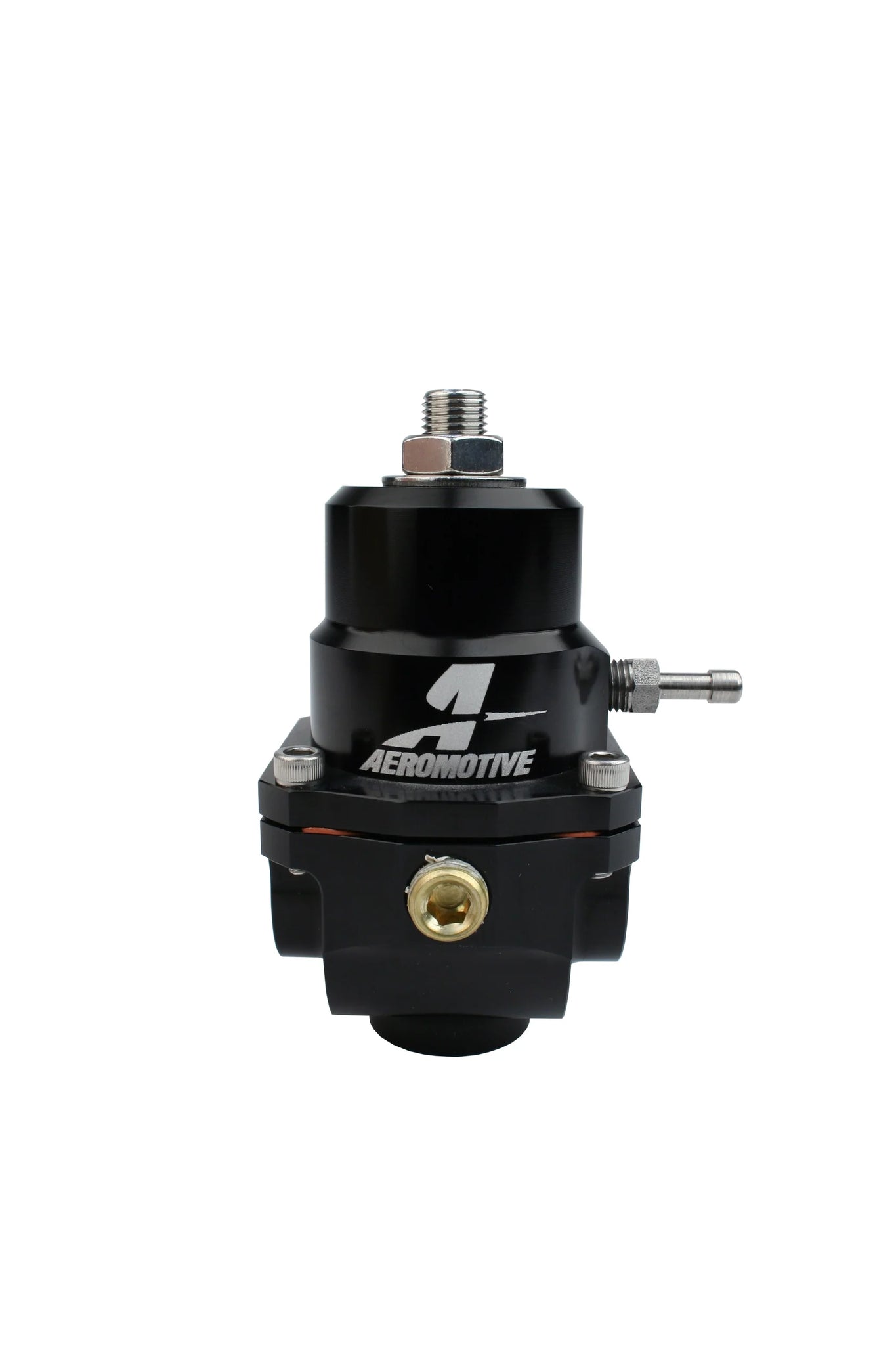

X1 Series Standard Return Style EFI Fuel Pressure Regulator

EFI return style Regulator for Return Style Systems

• Base fuel pressure adjustable from 35-75 PSI.

• Vacuum/Boost reference capability.

• 1:1 rising rate for forced induction engines.

• Gasoline, ethanol, alcohol and diesel compatible.

• 2 - ORB -08 inlet/outlet ports on the sides.

• 1 - ORB-08 return port on the bottom port.

• 1 - 1/8" NPT Gauge Port with plug.

• 1/16" NPT Boost Port with 5/32" hose barb.

• Compatible with X1 High Flow EFI Conversion kit.

• Compatible with X1 Carb Conversion kit.

• 0.188" return style with matching spring and poppet.

• Handles up to 150 GPH with AN-08 return line.

• Suitable for any Aeromotive Pump up to A1000.

• Mounting bracket included (not shown).

• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
