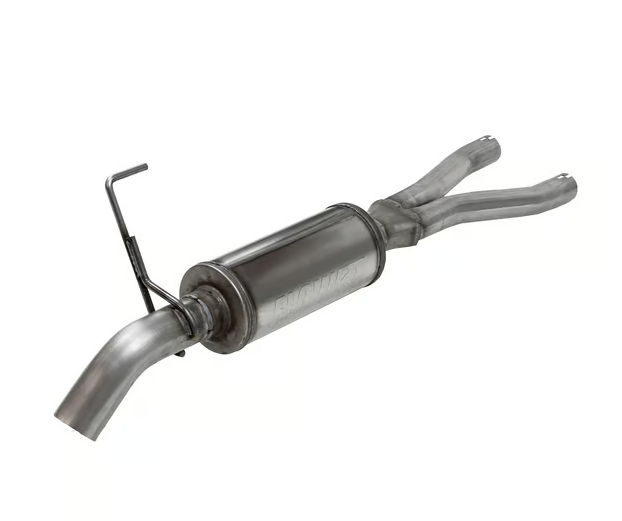

Flowmaster introduces our Flow FX Extreme stainless steel cat-back exhaust system for the 2004-2015 Nissan Titan with the 5.6-liter engine. This system uses a Flow FX series muffler for an aggressive to moderate sound level and increased performance. 3.00-inch mandrel bent 409 stainless steel tubing allows for maximum exhaust flow and durability. Dyno tests resulted in an extra 16 hp and 23 lb-ft of torque at the rear wheels over stock. The system has a turndown style, dump exit right after the muffler to eliminate the over-axle tailpipe. This elimination of the tailpipe helps improve ground clearance and departure angle when you are driving in more extreme off-road situations. All of the necessary hardware is included, and factory-mounting locations are used for an easy installation. Backed by Flowmaster's Lifetime Limited Warranty.
Features:
- Up to 16 hp and 23 lb-ft of torque over stock at the rear wheels
- 3.00-inch mandrel bent 16-gauge stainless steel tubing maximizes exhaust flow for better power
- 409 Stainless steel construction delivers durability and improved long-term corrosion resistance
- Includes complete hardware and factory styled hangers in the stock locations for an easy installation
- FlowFX Series performance muffler offers an aggressive to moderate sound level with increased performance
- Dump style exit allows for better ground clearance when in extreme off-road conditions
- Backed by Flowmaster’s Lifetime Limited Warranty
| Brand |
Flowmaster |
| Catalytic Converter Quantity |
0 |
| Category |
Exhaust |
| Clamping Type |
Flat Band |
| Clamps Included |
Yes |
| Emission Code |
5 |
| Exhaust Series |
FlowFX |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Tip Color |
Silver |
| Exhaust Tip Connection |
Welded |
| Exhaust Tip Cut |
Straight |
| Exhaust Tip Diameter |
3.00 IN |
| Exhaust Tip Edge |
Slash Cut |
| Exhaust Tip Finish |
Natural |
| Exhaust Tip Intercooled |
No |
| Exhaust Tip Material |
409 Stainless Steel |
| Exhaust Tip Quantity |
1 |
| Exhaust Tip Resonated |
No |
| Exhaust Tip Shape |
Round |
| Exhaust Tip Wall |
Single Wall |
| Exit Position |
SOD (Single Out Dump) |
| Exit Style |
Single Out Dump |
| Finish |
Natural |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| Hangers Included |
Yes |
| Inlet Type |
Clamp-On |
| Main Piping Diameter |
3.00 IN |
| Material |
409 Stainless Steel |
| Mount Type |
Uses factory hangers |
| Mounting Bracket Included |
No |
| Muffler Body Diameter |
6.00 IN |
| Muffler Body Length |
14.00 IN |
| Muffler Body Material |
409 Stainless Steel |
| Muffler Body Shape |
Round |
| Muffler Color |
Silver |
| Muffler Finish |
Natural |
| Muffler Flanged Inlet |
No |
| Muffler Flanged Outlet |
No |
| Muffler Inlet Connection |
Slip-Fit |
| Muffler Inlet Diameter |
3.00 IN |
| Muffler Inlet Inside Diameter |
3.00 IN |
| Muffler Inlet Location |
Center |
| Muffler Inlet Outside Diameter |
3.13 IN |
| Muffler Material |
409 Stainless Steel |
| Muffler Outlet Diameter |
3.00 IN |
| Muffler Outlet Location |
Center |
| Muffler Outlet Quantity |
1 |
| Muffler Overall Length |
48.78 IN |
| Muffler Part Number |
Kit Only |
| Muffler Quantity |
1 |
| Muffler Series |
FlowFX |
| Muffler Shape |
Round |
| Muffler Type |
Absorption |
| part type |
Exhaust System Kit |
| Pipe Material |
409 Stainless Steel |
| Product Type |
Exhaust System |
| Single Dual |
Single |
| Sound Level |
Aggressive |
| Spring Bolt Kit Included |
No |
| Sub Category |
Exhaust and Tail Pipes |
| System Type |
Cat-back |
| Tail Pipe Outlet Outside Diameter |
3.00 IN |
| Tail Pipe Quantity |
1 |
| Tail Pipe Tapered Outlet |
No |
| Tip Cut |
Turndown |
| Tip Diameter |
3.00 IN |
| Tip Edge Style |
Cut |
| Tip Shape |
Round |
| Tip Style |
Not Included |
| Tubing Diameter |
3.00 IN |
| Tubing Material |
409 Stainless Steel |
| Type |
Cat-Back |
| Valve Included |
No |
| Valve Type |
Not Applicable |
| UPC |
090127135020 |
