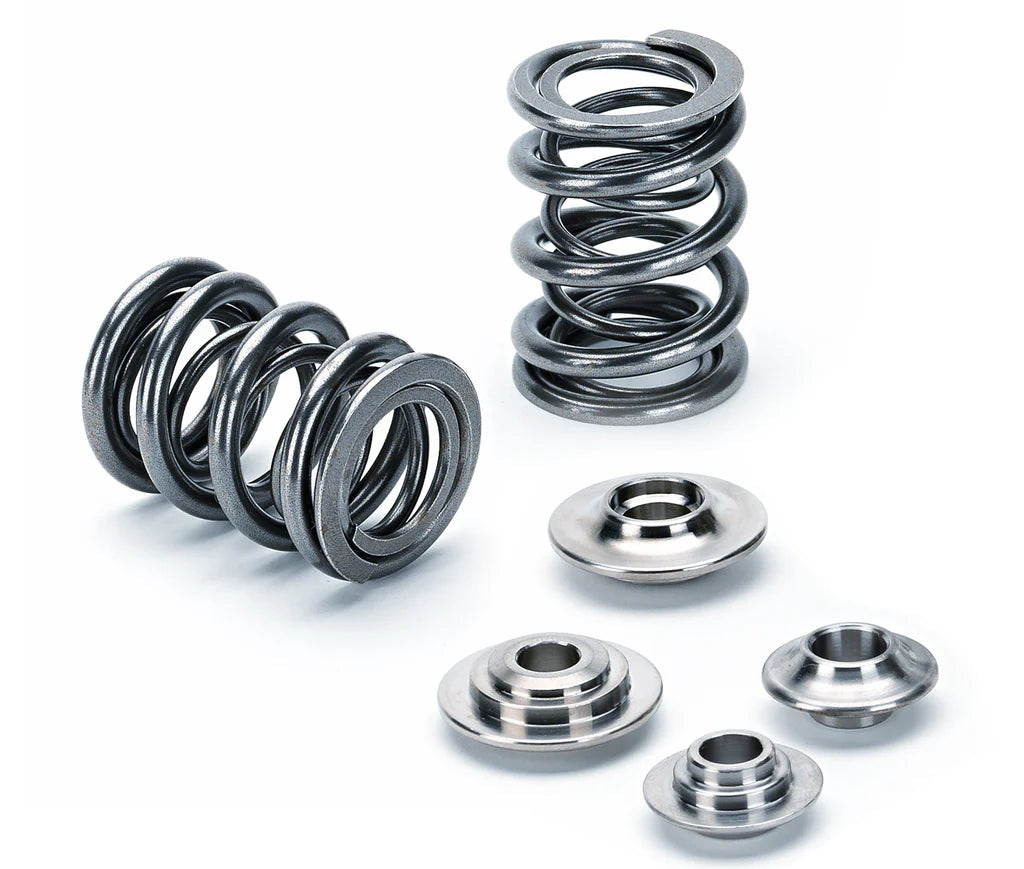

Supertech valve springs are computer designed to ensure smooth harmonics under high RPM and load. The stress levels are kept under control and fatigue is reduced for long durability under extreme conditions. These springs are made of premium Superclean Chrome Silicon Vanadium steel alloy, which is a tough alloy that was designed for higher performance and durability at high RPM's and memory retention.
Specifications:
- For Hydraulic Lifter
- Outer Spring O.D.: 27.50mm
- Outer Spring I.D.: 20.00mm
- Seat: 85 @ 30.6 (lbs@mm)
- Open (lift): 171 @ 9 (lbs@mm)
- Max net lift: 9.90mm
- Coil bind: 20.70mm
- Rate: 9.60 lbs/mm
Retainer P/N: RET-NVG1015/T1 (24) + Intake OE seat (12 for Intake) + Exhaust SS-2820-E+OE (12 for Exhaust)
Note: This is for a complete set of single intake and exhaust valve springs. Retainers and spring seats are included if they are part of the kit.
