ICON 2003 - 2012 Dodge Ram 2500/3500 4WD 2.5in Lift Stage 1 Suspension System
ICON

ICON 2003 - 2012 Dodge Ram 2500/3500 4WD 2.5in Lift Stage 1 Suspension System

Regular price $1,915.00 Unit price per
Shipping calculated at checkout.
 More payment options

K212501

ICON 2003-12 Ram 2500/3500 4WD, 2.5" Lift, Stage 1 Suspension System

overview

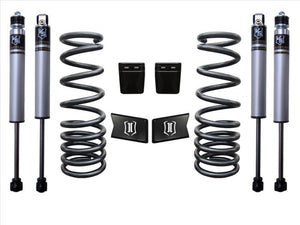

2003-2012 Ram 2500/3500 2.5 Inch Stage 1 Suspension System is ICON's entry level system. This system not only levels out the stance, it increases ride quality and performance both on and off road. The Stage 1 System is comprised of dual rate coil springs, polyurethane bumpstops, sway bar drop brackets, and ICON 2.0 Aluminum Series internal reservoir shocks. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

features & Benefits

  • ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Level stance front to rear
  • Less body roll than stock
  • No drive shaft modifications needed

download installation guide

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
  • APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
  • APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • Ships in Multiple Boxes

System Components:



  • 212500 (QTY: 1) | 03-12 RAM HD 4WD 2.5" DUAL RATE SPRING KIT
  • 216521 (QTY: 2) | 03-12 RAM HD 2.5" FRONT 2.0 VS IR
  • 216522 (QTY: 2) | 03-12 RAM HD 0-3" REAR 2.0 VS IR
