Superlift 2011 - 2016 Ford F-250/F-350 SuperDuty 4WD 4in Lift Kit w/ Bilstein Shocks

Superlift Suspension Systems now available with Superlift Shocks or Bilstein Shocks or Fox Shocks:

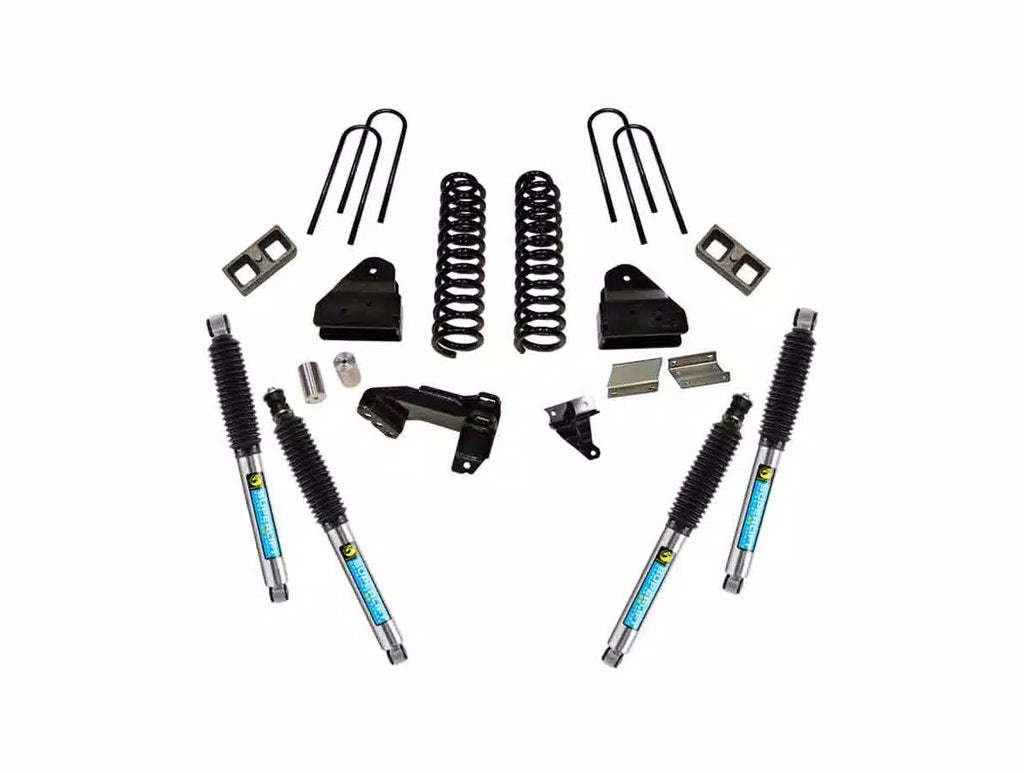

This 4" Lift for the2011-2016Ford Super Duty F-250 | F-350 4WD features Superlift'engine specific coil springs to ensure proper lift height and maintain factory ride quality. Radius arm lowering brackets are used to restore proper caster angle and alignment. Other components included with this 4-inch suspension system are front compression travel-stop relocation brackets, track bar relocation bracket, front anti-sway bar extensions, and steering stabilizer bracket. Rear lift isachieved by 2.5 inch blocks.
OEM CAD models and the latest 3D design software were used to precision engineer a suspension system that includes a track bar relocation bracket, front sway bar correction, bump stop extension brackets, brake hose relocation brackets.

Complete your 4-inch Ford F-250 | F-350 with the most extensive variety of shocks on the suspension market. Shocks for this kit are available in the following: Superlift or Bilstein 5100 Series or Fox Performance Series 2.0 IFP Shocks.

Features:

Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
Radius Arm lowering brackets
Front Compression Travel-Stop Brackets prevent suspension over-compression
Track bar relocation bracket prevents stud bind, resulting roll and yaw, and steering wheel kick
Threaded front anti-sway extensions do not require cutting or welding
Front and Rear Shock Options: Superlift Shocks or Bilstein 5100 Series Shocks or Fox Performance Series 2.0 IFP Shocks
Backed by our limited lifetime warranty

Benefits:

Aligns to
Maintains ride quality and handling characteristics

NOTES:

If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9649
This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250 | F-350 with the factory 1 7/8 inch blocks WITHOUT top mount overloads. If your Ford is equipped with top is equipped with the factory 3.71 inch blocks or top mount overloads, a long rear u-bolt will be required. For Super duty's equipped with 1-7/8 inch blocks and top mount overloads, part # 11724 will need to be purchased in addition to the lift kit. If the truck is equipped with 371 inch block and top mount overloads, part # 11734 is required.
