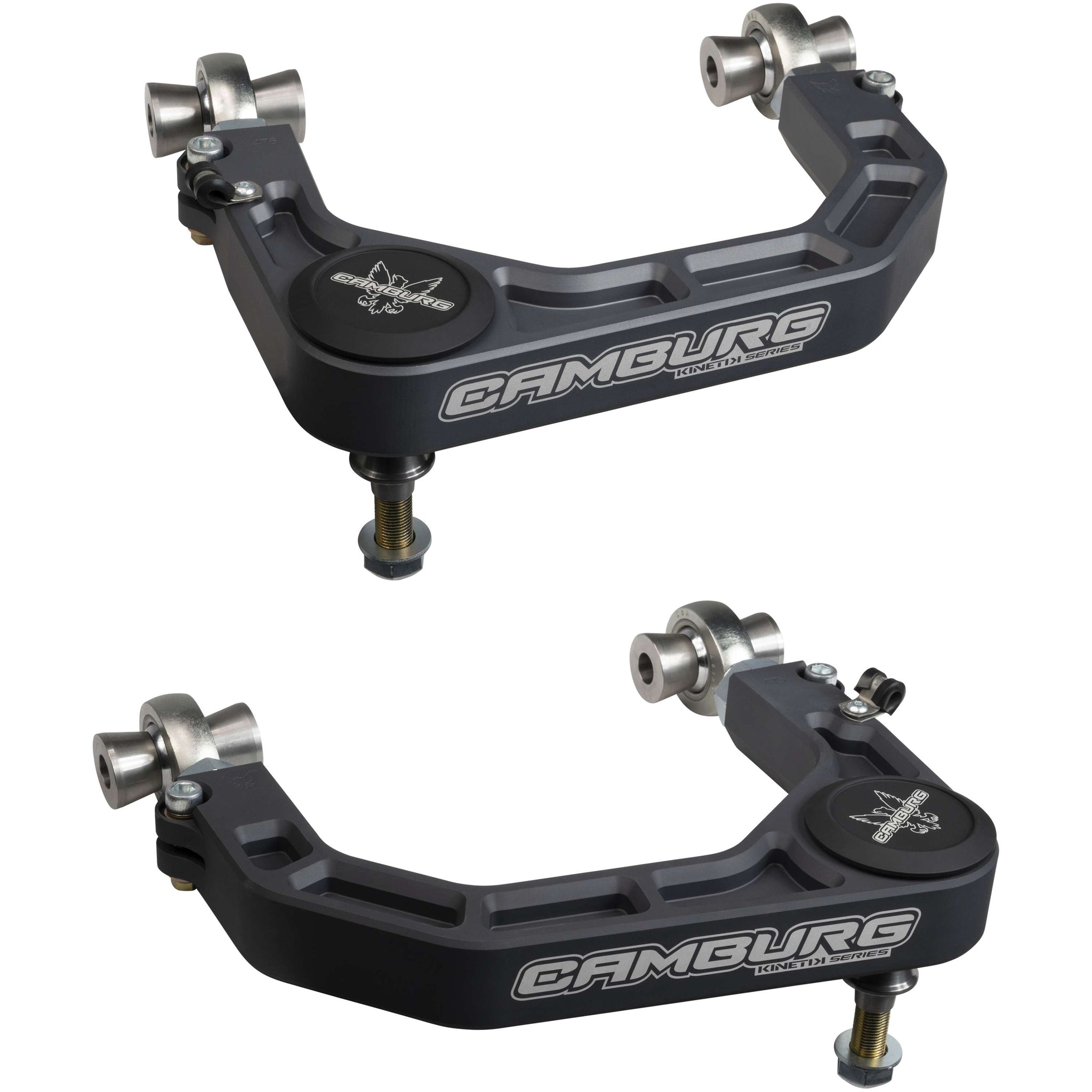

Camburg Toyota Tacoma 2005 - 2023 / 4-Runner 2003 - 2023 / FJ 2007 - 2014 KINETIK V2 Billet Uniball Upper Arms
CAM-310184-GRY
These arms are meticulously designed and crafted using CAD and CNC machining. They are made from aerospace quality 6061 billet aluminum and undergo bead blasting, Type II anodizing, and laser etching for a sleek gun metal gray finish. The arms feature a larger FK 1.25" uniball with a PTFE liner for increased strength and misalignment, allowing for maximum wheel travel. They are made in the USA and are superior to cheaper imports. The uniball is adapted to the spindle/knuckle using model-specific spacers made from heat-treated stainless steel. No drilling or modifications are required. The arms also utilize larger and stronger FK 7/8" chromoly heim joints for additional camber and caster adjustment. These heim joints eliminate flexing/deflection and provide zero binding under hard use and braking. The arms come with AN/Mil-spec hardware, including a single pinch bolt and secondary jam nut for secure attachment. The V2 design of these arms increases usable wheel travel, corrects camber and caster, and eliminates weak factory ball-joints. They are designed for 1-3" of lift and come with all necessary hardware for installation.
Fitment Notes
Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.
Technical Details
- May be used with most aftermarket coilovers
- OE Wheels can be reused
- 0 Offset Wheels Recommended
- May Require Trimming to Eliminate Tire Rubbing
- with 6 Stud Hub
Specifications
-
Ball Joint Cover IncludedYes
-
Ball Joint IncludedYes
-
Ball Joint TypeUniball
-
Control Arm ColorGray
-
Control Arm ConstructionCNC Machined
-
Control Arm Material6061-T6 Billet Aluminum
-
Grade TypePerformance
-
Grease Fitting IncludedNo

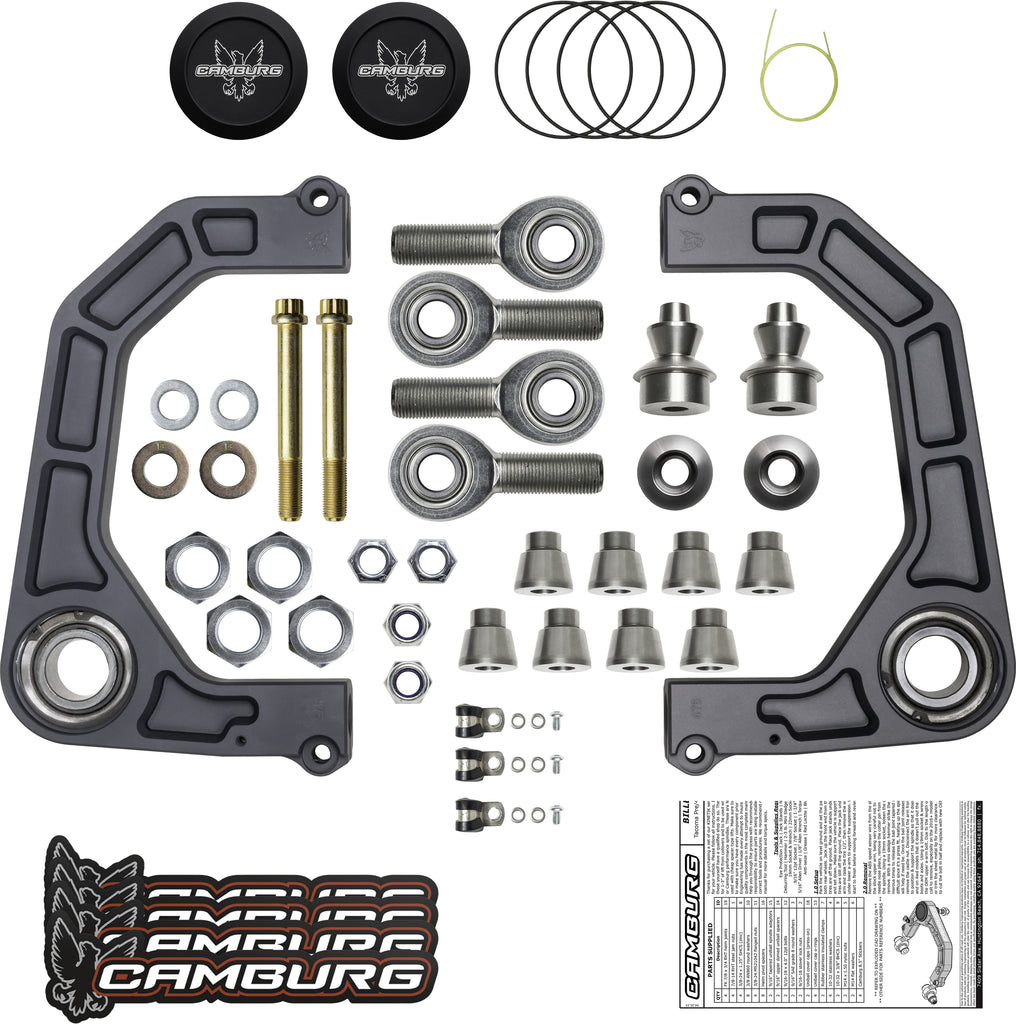

Hardware
-
Round Washer8
-
Heim Joint4
-
Flat Washer2
-
Nyloc Nut2
-
Jam Nut4
-
Domed Uniball Spacer2
-
Stainless Rubber Clamp2
-
Flanged Nut4
