BorgWarner
BorgWarner Turbocharger SX S200 T4 A/R .83 46mm Inducer
Regular price
$1,160.00
Shipping calculated at checkout.
177258

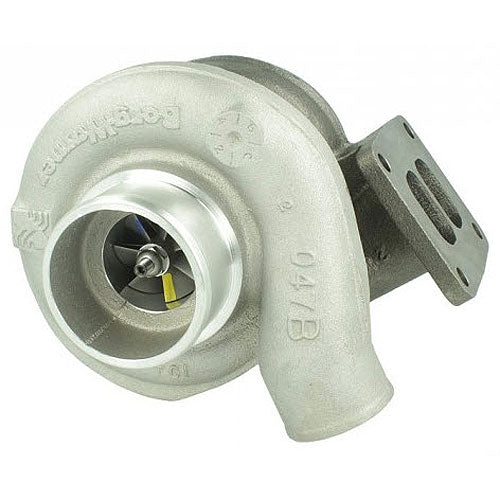

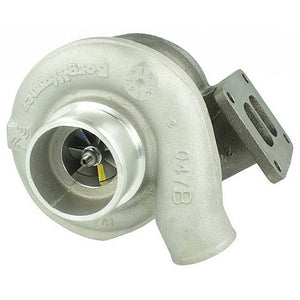

BorgWarner S200SX Turbo
BorgWarner Airwerks S200SX-46, S200SX, S246, S247 with .83 A/R Twin Scroll Turbine Housing. FREE SHIPPING Rated at 220 to 370HP Compressor flow is rated at over 37lb/min Wheel Dimensions: Compressor: 45.9mm inducer / 69.6mm exducer, with exclusive Extended Tip Technology. Turbine: 69.6mm inducer / 61.5mm exducer. Cast in Inconel 713 for high-temperature operation. Housings: Compressor: 3.00 air inlet / 2.00 charge pipe outlet Turbine: T4 .83 A/R Twin Scroll, with 'T4-style', divided entry, and 4.21 v-band discharge.
BorgWarner S200SX Key Turbo Features
- Twin hydrodynamic journal bearings
- Extended Tip Technology Compressor Wheel
- Twin scroll turbine housing
- Adjustable compressor and turbine housing orientation
BorgWarner S200SX Turbo 177258
Features:
- Comp Wheel OD (in): 2.74
- Comp Wheel Inducer (in): 1.81
- Turbine Wheel OD (mm): 70
- Turbine Wheel Exducer (in): 2.420
- Turbine Wheel Exducer (mm): 61
