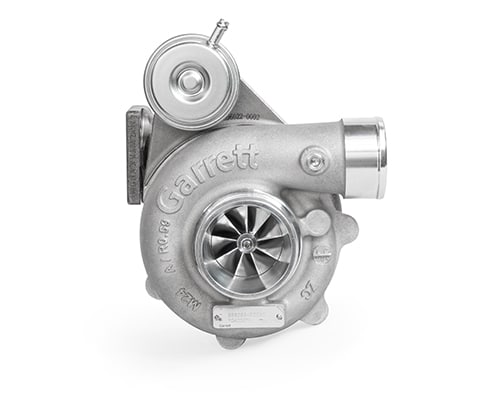

Club Line is a product engineered for small engine displacements. This includes powersports, personal watercraft, and automobiles. These turbochargers feature internally wastegated turbine housings and journal bearing rotating groups. GBC stands for GARRETT BOOST | CLUB LINE. The first two numbers indicate the turbo frame size. The larger the number the larger the turbine wheel. The numbers following the dash indicate the peak potential flywheel horsepower rating. GBC20-300
39mm compressor inducer | 52mm compressor exducer
Outline interchangeable with GBC 17 / 22
150 –300 horsepower capability
Internal wastegate assembly with calibrated actuator
Billet compressor wheel with extended tip design for higher pressure ratio capability
GTX Gen II compressor aero with modern gasoline turbine wheel aero
Journal bearing rotating group
Engineered for small displacement engines including powersports, personal watercraft and automobiles
Read About Turbo System Optimization: A guide to setting up your turbocharger
The maximum power stated for each turbocharger has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. Please consult with your local distributor before making a purchase.
HP: 170-300 Disp: 0.8L-2.0L
Garrett Boost | Club Line Features
Frame sizes => 17, 20, and 22
17, 20 and 22 outline interchangeable
150 –350 horsepower capability
Integrated wastegate assembly with calibrated actuator
Billet compressor wheel with extended tip design for higher pressure ratio capability
GTX Gen II compressor aero with modern gasoline turbine wheel aero
Inconel turbine wheel material
Ductile iron (SiMo+) turbine housing material
Latest generation of journal bearing rotor group
360-degree thrust bearing
Oil-cooled center housing
Boost signal port with installed plug
Designed to use existing 480009 actuators
GBC Competitor Product Summary
Club Line compared to BorgWarner S1BG
Billet compressor wheel with extended tip aerodynamic design
20% higher compressor flow
Aero maps available for all frame sizes to assist in turbocharger selection
Actuators with higher pressure settings available
Micro size turbo (GBC14) to meet requirements of the smallest engines
Club Line compared to TurboneticsTNX
Billet compressor wheel with extended tip aerodynamic design
Aero maps available to assist in turbocharger selection
Three outline interchangeable frame sizes to enable different stage kits
