8374

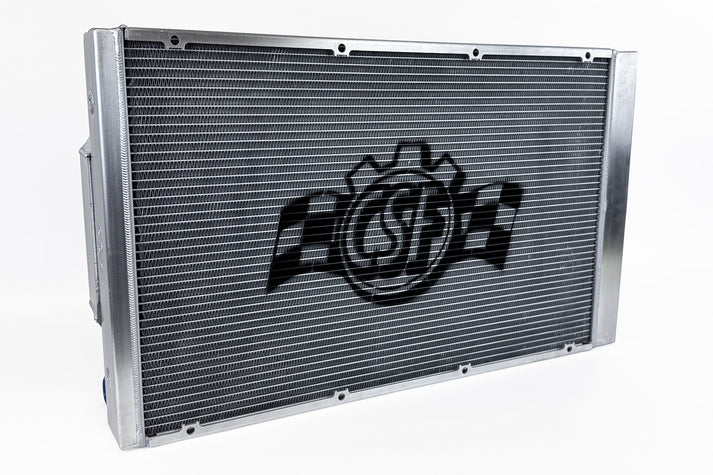

The CSF engineering team has spent over a year working with companies like Drift HQ as well as Pro/Am Drifters to develop and refine the ultimate Drift Radiator. This new Universal Radiator can be used in any racing or motorsport application, but it was purpose built for Drift Vehicles. The size makes it ideal for rear mounted setups and offers an optional shroud with fans capable of keeping the hottest cars cool when sideways. This is the largest Drift Radiator Module on the market and delivers the cooling performance you need to compete.

CSF has been heavily involved in motorsports for years supporting teams and enthusiasts in Time Attack, GTC, SRO, Drifting, along with Drag and Roll Racing. Many of CSF's "Drop-In" fit cooling systems are used in competition in addition to the Universal Systems. One thing that has been missing from the CSF catalog though was a large motorsport radiator; until now.

Key Features:

• Largest Motorsport Radiator on the market
• Overall Dimensions Including Shroud & Fans (WxHxD): 794.10 x 470.00 x 172.56 mm (31.264 x 18.661 x 6.749 inches)
• Overall Dimensions Radiator Only (WxHxD): 794.10 x 470.00 x 90.00 mm (31.264 x 18.661 x 3.543 inches)
• 100% TIG Welded Construction
• Massive 705mm x 448mm x 68mm Core
• CSF's Exclusive B-Tube Technology and 8mm super-efficient multi-louvered fins
• Dual Pass Core for maximum efficiency
• 20AN ORB Inlet/Outlet fittings for maximum flow
• 12AN ORB ports for sensor mounting and bleeding
• 8 (4 per tank) M8 x 1.25 Bosses Mounting Bosses

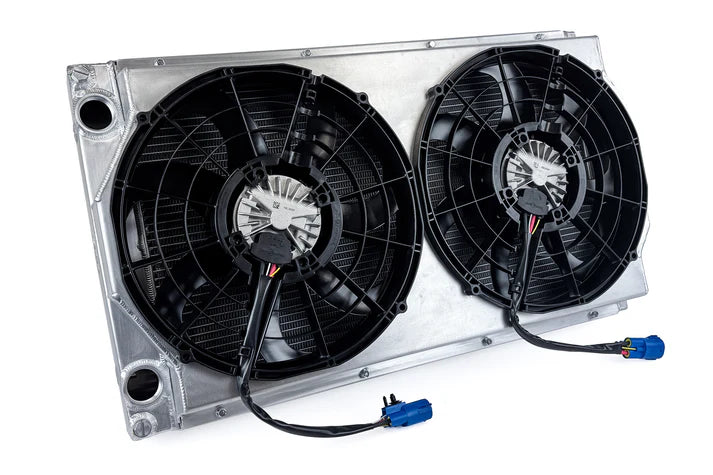

• Full Cooling Module that includes a Shroud, 14" SPAL Brushless Fans, and Jumper Harnesses
