Flowmaster

Flowmaster 2009-2024 RAM 1500 4.7L/5.7L (19-24 1500 Classic) FlowFX Dual Same Side Out Cat-Back Exhaust System

$980.00

Shipping calculated at checkout.

717993

Fits 2009-2024 Dodge RAM 1500 (19-24 1500 Classic) 4.7/5.7-Liter, Flow FX Cat-Back, Dual Same Side Out Exit, Stainless Steel Exhaust System

Overview

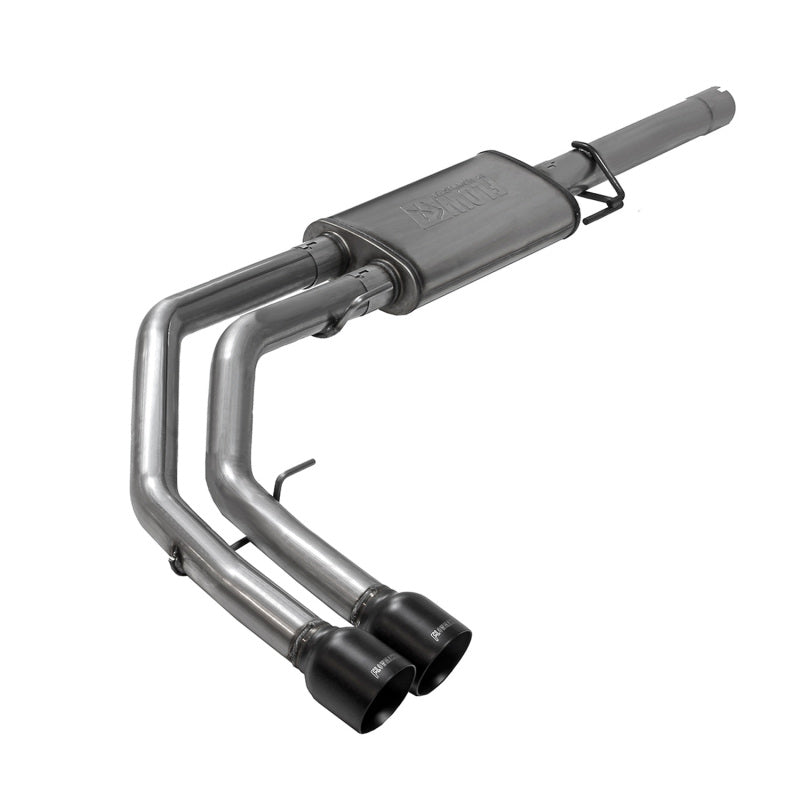

This Flowmaster® Flow FX® cat-back exhaust system for the 2009-2024 Dodge RAM 1500 trucks (19-24 1500 Classic only) with the 4.7 or 5.7-liter engine is manufactured using durable 409 stainless steel throughout and features 3.00 to dual 2.50-inch mandrel bent pipes for better exhaust gas flow. A Flow FX "straight-through" muffler is used for an aggressive to moderate sound level and maximum performance. Maximum increases on the dyno revealed +16 hp and +22 lb-ft at the rear wheels. This system exits out the same side, in front of the rear wheel on the passenger with dual 4.00-inch black ceramic tips for added style and a custom look. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster's Lifetime Limited Warranty.

Features:

Max increases of up to 16 hp and 22 lb-ft over the stock exhaust at the rear wheels
3.00 to dual 2.50-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability
Dual 4.00-Inch black ceramic coated tips add a custom look to the truck
Includes complete hardware and factory styled hangers in the stock locations for an easy installation
Flow FX “straight through” performance muffler delivers a deep, aggressive to moderate performance tone and improves exhaust flow

Specs

Brand	Flowmaster
California Proposition 65	Yes
CARB (California) Compliant	Yes
Catalytic Converter Included	No
Catalytic Converter Quantity	0
Category	Exhaust
Clamping Type	Flat Band
Clamps Included	Yes
Emission Code	5
Exhaust Series	Flow FX
Exhaust Tip Color	Black
Exhaust Tip Connection	Welded
Exhaust Tip Cut	Angled
Exhaust Tip Diameter	4.00 IN
Exhaust Tip Edge	Angle Cut
Exhaust Tip Finish	Black Ceramic Coating
Exhaust Tip Intercooled	No
Exhaust Tip Length	5.25 IN
Exhaust Tip Material	304 Stainless Steel
Exhaust Tip Quantity	2
Exhaust Tip Resonated	No
Exhaust Tip Shape	Round
Exhaust Tip Wall	Double Wall
Exit Style	Dual Out Same Side
Finish	Natural
Gasket Or Seal Included	No
Grade Type	Performance
Hangers Included	Yes
Inlet Type	Clamp-On
Main Piping Diameter	2.50 IN
Mount Type	Uses factory hangers
Mounting Bracket Included	Yes
Muffler Body Height	4.00 IN
Muffler Body Length	18.00 IN
Muffler Body Material	409 Stainless Steel
Muffler Body Shape	Oval
Muffler Body Width	9.00 IN
Muffler Color	Silver
Muffler Finish	Natural
Muffler Flanged Inlet	No
Muffler Flanged Outlet	No
Muffler Included	Yes
Muffler Inlet Connection	Slip-Fit
Muffler Inlet Inside Diameter	3.00 IN
Muffler Inlet Location	Center
Muffler Inlet Outside Diameter	3.13 IN
Muffler Outlet Connection	Slip-Fit
Muffler Outlet Diameter	2.50 IN
Muffler Outlet Location	Dual
Muffler Outlet Quantity	2
Muffler Overall Length	24.00 IN
Muffler Part Number	Kit Only
Muffler Quantity	1
Muffler Series	Flow FX
Muffler Type	Absorption
part type	Exhaust System
Pipe Color	Silver
Pipe Material	409 Stainless Steel
Product Type	Exhaust System
Sound Level	Aggressive / Moderate
Spring Bolt Kit Included	No
Sub Category	Exhaust and Tail Pipes
Tail Pipe Outlet Outside Diameter	2.50 IN
Tail Pipe Quantity	2
	Dual
Tail Pipe Tapered Outlet	No
Tip Logo	Laser
Type	Cat-Back
Valve Included	No
Valve Type	Not Applicable
UPC	090127614471
California Proposition 65 Chemical Name	Chromium (hexavalent compounds)
	Nickel (Metallic)
Part Number	717993

Flowmaster 2009-2024 RAM 1500 4.7L/5.7L (19-24 1500 Classic) FlowFX Dual Same Side Out Cat-Back Exhaust System
