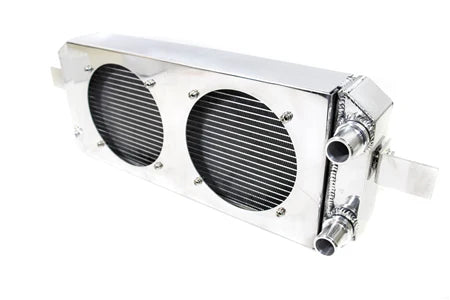

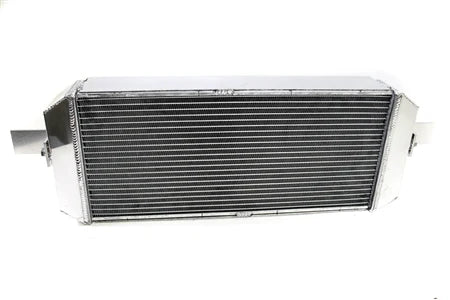

PLM Power Driven Tucked Radiator - Honda Acura

The PLM Power Driven Aluminum Tucked Radiator offers unmatched value with versatile threaded inlet and outlet fittings for AN or clamp-on hoses, and adjustable, non-welded mounting brackets for universal fitment, maximizing engine space by tucking the radiator underneath the support.

• Removable mounting brackets & bolted on, allowing the radiator to be easily adapted for various applications.
• Removable fittings for OEM style hose fitting or AN fittings.
• Two (2) x 16AN fittings.
• Two (2) x slip on fittings.
• Mounting brackets
• Brackets hardware

• Size: 24" x 9.5" x 3.5" (without fans)
• Size: 24" x 9.5" x 5.5" (with fans)
• Overall length: 30" with end brackets
• Drain plug size is 1/4 NPT

• Common fitment for Honda B-Series, K-Series cars.
• Also used as a universal fitment for many other vehicles. (Refer to size dimension under specifications)
• Honda Acura B-Series B20B B20Z B16A B18C1 B18A B18B B18C5
• Honda Acura K-Series K20 K24 K20A K20Z

• If you use it for other universal application, it is strongly recommended that you use a set of rubber grommets for vibration isolation.
• Excessive vibration on the bracket and/or mounting holes can cause breakage.
