S&S Cycle Harley Davidson 2017+ M8 Models 475C Chain Drive Camshaft Kit
S&S Cycle Harley Davidson 2017+ M8 Models 475C Chain Drive Camshaft Kit
S&S Cycle

S&S Cycle Harley Davidson 2017+ M8 Models 475C Chain Drive Camshaft Kit

$430.00 $0.00
Shipping calculated at checkout.

330-0641

Features & Benefits

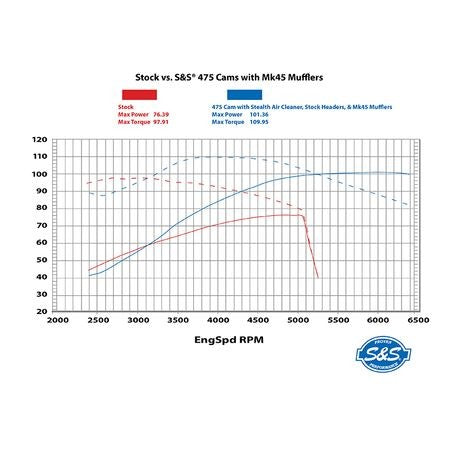

  • The 475C is a 100 HP Bolt-in Cam (When coupled with intake and exhaust)
  • Bolt-in! Compatible with all stock valve train components

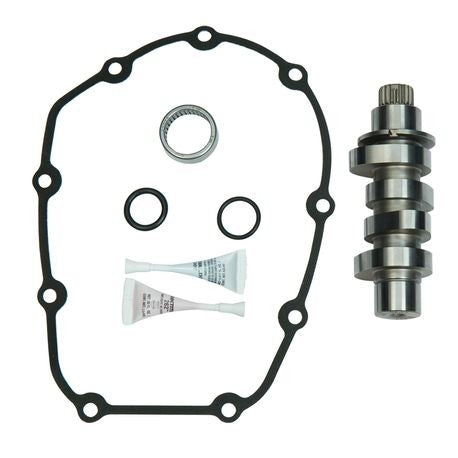

  • Kits include all required bearings, o-rings, and hardware
  • Made in the USA



Suggested:
 Quickee Adjustable Pushrods with Cover Keepers for 2017-19 M8 Models (Save labor and time! Eliminate the need to remove the rocker boxes and coolant lines)
Precision Tappets for 2017-19 M8 1999-17 big twins and 2000-19 XL Models (Tappets should be replaced every time that the cam is replaced)

Cylinder Valve Timing Valve Duration Valve Lift Lobe Center Line Valve Lift @ TDC
Intake Exhaust Intake Exhaust
Open BTDC/ Close ATDC Open BBDC/ Close ATDC Intake Exhaust Intake Exhaust Intake Exhaust
Front 6.2/27.2 55.5/28.5 213.5 263.9 .475 .475 100.5 103.5 .107 .208
Rear 2.2/31.2 52.5/20.2 213.5 252.5 .475 .475 104.5 106.0 .093 .170
