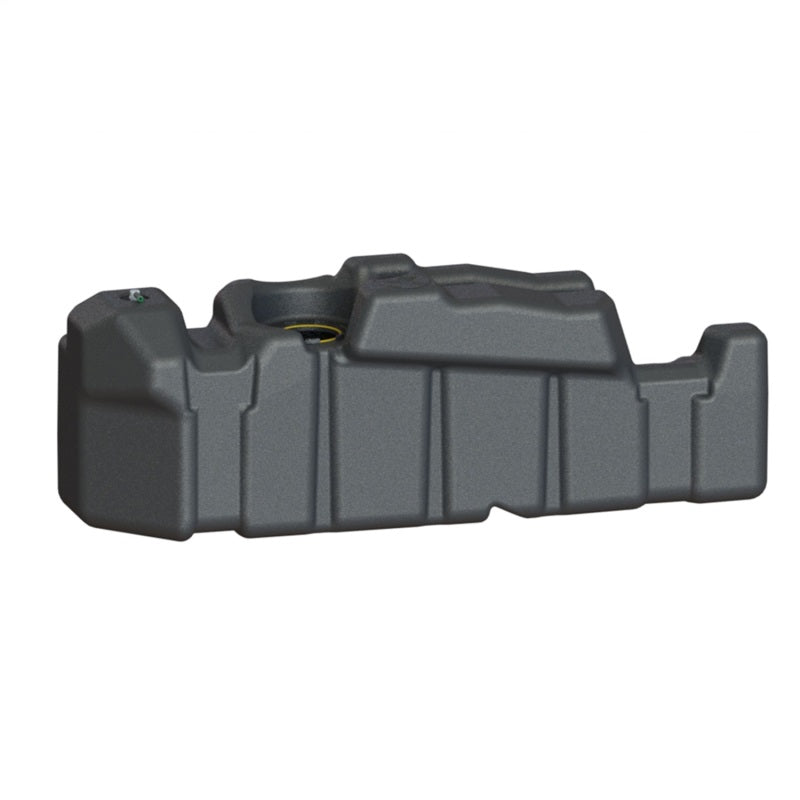

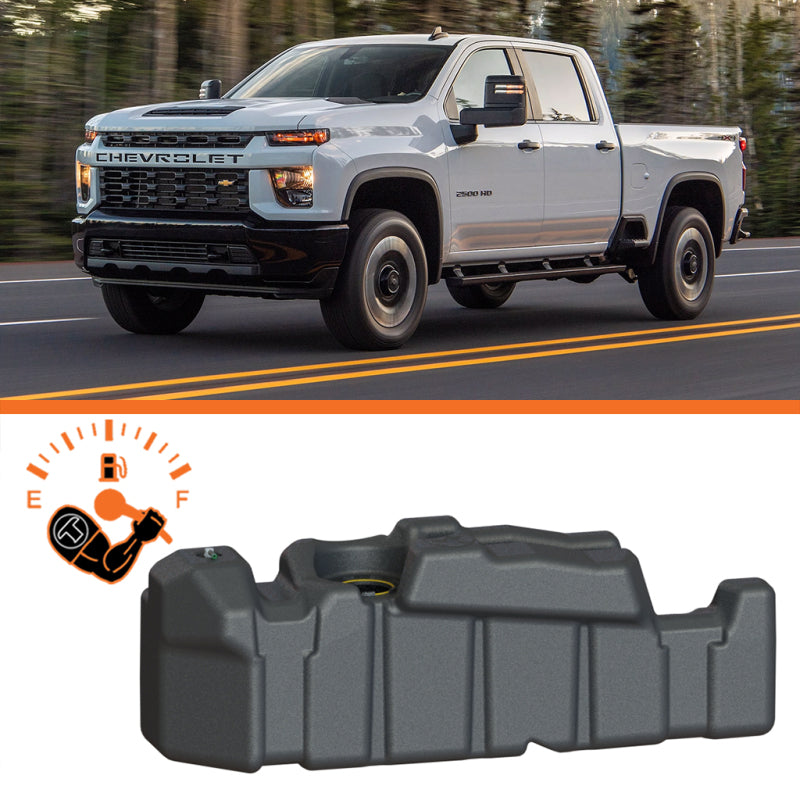

Titan Fuel Tanks 2020 - 2026 GM Silverado / Sierra 2500/3500 Duramax Crew Cab Short Bed 56 Gallon XXL Mid-Ship Fuel Tank

Fuel Gauge:
Your in-dash fuel gauge will remain accurate. Because your TITAN Tank holds more fuel, the gauge will simply stay on “Full” longer before beginning to drop

Distance-to-Empty (DTE) / Range:
Programming the DTE is not required, as your fuel gauge will continue to read accurately. However, customers who want their Distance-to-Empty (range) display to reflect the new tank capacity can update it on most trucks. Until programming is completed, the DTE reading may be inaccurate.

When it comes to programming, Titan keeps it simple, there is no need to have us ship you an expensive programmer that you send back. We have our own Titan Tech programmer available for some make and models, while other truck models can be done with very affordable and easy to use software.

Programming Options

• 2025-2026 Ford Trucks:
Use ForScan, a Ford-specific software that allows the vehicle computer to be adjusted for the increased TITAN tank capacity.
• 2017-2024 Ford Trucks:
Use the Titan Tech programmer (available directly from TITAN Fuel Tanks) to update the DTE in seconds.
ForScan software may also be used.
• 2011–2016 Ford Trucks:
Use the Titan Tech programmer (available directly from TITAN Fuel Tanks) to update the DTE in seconds.
ForScan or Ford dealership IDS software may also be used.
• 2019-2024 RAM Trucks:
Use AlfaOBD, a RAM-specific software that allows the vehicle computer to be updated for the increased TITAN tank capacity.

Third-party programming tools and software are independent of, and not guaranteed by, TITAN Fuel Tanks™.

For model year: 2020-2026
For 2500HD and 3500HD Models with Duramax Engines.
For use with diesel fuel ONLY.

•    The TITAN tank is 20 gallons larger at 56 gallons. The stock tank is only 36 gallons.
•    Will not interfere with powered steps, air bag systems.
•    Curt trailer hitch P/N 60642 and 60611 are not compatible with this tank. We recommend using B&W trailer hitch P/N GNRK1020 as an alternative.
•    Hellwig aftermarket rear sway bar #7782 is not compatible with this tank
•    Our mid-ship, direct replacement fuel tanks are designed to use your trucks stock/OE sending unit. However, our tanks are compatible with Fleece, AirDog, FASS, etc.

Affected vehicles: 2019+ GM 6.6L diesel trucks.

Issue: Fuel gauge drops to empty after Initial Install and during normal operation.

Explanation: GM trucks have the ability through programming and monitoring to know exactly how much fuel is in the tank, as well as fuel consumption based on miles driven and fuel economy. Any large capacity fuel tank causes the float to move slower than the computer thinks is acceptable. When the computer sees this, it will run a system check and drop the fuel gauge to empty. When the fuel level comes off full, the gauge should return to the correct position after restarting the vehicle.

Solution: Although we were told early on that trucks have fixed themselves after several tanks of fuel when following a specific process, we are no longer able to confirm this or any other permanent fix for this issue. If this is a concern for you, we recommend using an aftermarket digital monitor to confirm accurate fuel level when this occurs.
