Ready Lift Suspensions - 3" SST Lift Kit - Toyota Tacoma 2024+

69-54300

The all-new 69-54300 2024+ Toyota Tacoma 3” SST lift kit is an excellent choice for those who want to run larger tires. The maximum size for use with this kit (without trimming) is a 285/75R17 on an 8” wide and +35 offset wheel.

Features and Benefits:

- Bolt-on installation – no modifications required.

- 3” front lift with a 2” rear coil spring spacers.

- Allows for up to 285/75R17 on an 8" wide and +35 offset

- Allows for up to 295/55R20 on an 8.5" wide and +35 offset

- Allows for 315/70R17 with minor trimming

- Allows for 35x12.50 R17 with minor trimming

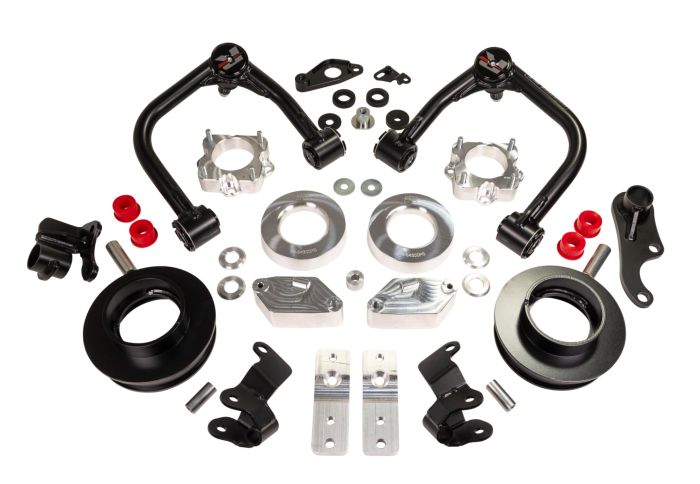

- Includes strong tubular steel Upper Control Arms with market best heavy duty high angle proprietary ball joint.

*Note:  Kit does not fit Tacoma’s equipped with rear leaf springs, TRD PRO, models equipped with Adaptive Variable Suspension (AVS), and Trail Hunter. ReadyLIFT has not tested or confirmed fitment on the optional sway bar disconnect.

Wheel Tire  Note

Stock (17x7 +60)  285/70R17  No Trim (Widest tire you can put on, Knuckle clearance)

17x8 +35  285/70R17  No Trim

17x8 +35  285/75R17  No Trim

17x8.5 +47  285/70R17  No Trim

17x8.5 +47  285/75R17  No Trim

17x8.5 +25  285/70R17  No Trim

17x9 +1  285/70R17  May require trimming. (4mm clearance)

Tire Size Comparison:

18x8 +35  285/65R18  No Trim

18x8 +35  285/70R18  No Trim

18x8.5 +47  285/65R18  No Trim

18x8.5 +47  285/70R18  No Trim

18x8.5 +25  285/65R18  No Trim

18x9 +1 285/65R18  May require trimming. (4mm clearance)

20x8.5 +35  295/55R20  No Trim

20x9 +18  295/55R20  No Trim

20x9 +1   295/55R20  May require trimming. (4mm clearance)
