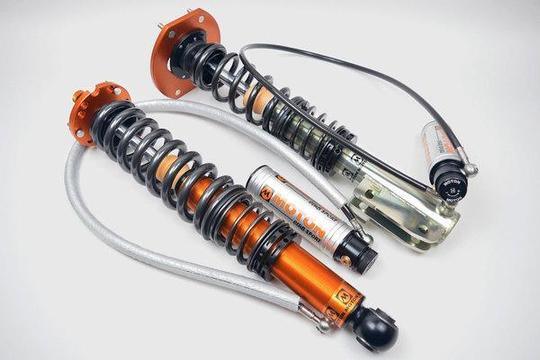

Moton 2-Way Clubsport Coilovers BMW 1 Series E82 1M Steel Front - Street

The Moton 2 Way Sport line for the 2011-2012 BMW 1M 3.0 Steel Front (E82) is designed for the serious club racer and high performance street driver.

Featuring remote reservoirs for superior fluid temperature control, quick release hydraulic lines (on most models) for easy installation, separate compression and rebound damper valving adjustment and height adjustable spring perches, this kit is beyond the more common coil-over systems on the market.

If your driving can benefit from the ultimate in suspension tuning, then this kit is for you.

BENEFITS

• Easy to adjust to a real race setup
• Easy to work with
• Minor adjustments are very noticeable to the driver
• Proven reliability
• Wide range of springs can be used
• Shafts are induction hardened and chrome plated
• Top camber mounts supplied where possible/available
• Improved platform stability
• Improved traction, higher grip level
• Improved rumble strip and bumpy track control
• Rebuildable/Revalveable

FEATURES

• Separate Bump (15) and rebound (15) control
• Ride height adjustable
• Unique blow off valve system in remote reservoirs
• Large piston rod diameter for more fluid displacement
• Adjustable gas pressure for added lifting force
• Canister pressure can be varied between 6-16 BAR (100-300 psi)
• Variable canister pressure helps support the car in high speed cornering with soft springs
• Large main piston for quick response
• No pre-loaded valve stacks needed for low speed damping control
• Swivel banjo hoses for easy installation of remote reservoirs
• DDP (double digressive pistons) are available as an option
• Double Digressive Pistons are recommended for use on the non-driven wheels
• 4WD/FWD vehicles: DDP for both rear axle struts/shocks
• RWD vehicles: DDP for both front axle struts/shocks

PRODUCT SPECIFICATIONS

• Part Number: M 505 115
• Product: Moton Suspension 2-Way Clubsport Coilovers (True Rear)
• System: Steel front, QD FR, true rear
• Model Years: 2011-2012
• Make: BMW
• Model: 1M
• Chassis: E82
• Vehicle Note: Coupe/Convertible
• Spring Kit: Included
• Top Mounts: Front Included - Rear Included
• Front Top Mounts: Camber Adjustable
• Rear Top Mounts: Solid - No camber adjustment (CO Only)
• Adjustable Droplinks Needed? Yes
• Adjustable Front Droplinks (Additional Cost): Part Number: DLA-BMW3-S
• DDP Pistons Included? No
• DDP Pistons Available (Additional Cost): Yes
• QDC Included? Yes (Front Only)
• QDC Part Number:
• TUV Approved?
• Comments:

VEHICLE FITMENT

• 2011 BMW 1M 3.0 Steel Front (E82)
• 2012 BMW 1M 3.0 Steel Front (E82)
