CXRacing Version 2 Intercooler Piping Kit 2006-2010 BMW 3 Series E90/E91/E92/E93 335i N54
KIT-N54-E92-N-IC-BKS
CXRacing Version 2 Intercooler Piping Pipe Tube Kit for 2006-2010 BMW 3 Series E90/E91/E92/E93 335i with N54 Twin Turbo Engine
This Kit is an Updated Version of the Old N54 Kit, We Have Redesigned the Kit with Improved Fitment and Performance, Such As:
Larger 3" Charge Pipe.
Better Positioning of the Air Temp Sensor Flange, So That It Does Not Need to Stretch Wiring Harness to Reach the Flange.
New Larger 50mm BOV.
Nicer Mandrel Bent Pipes, Better Fitment.
This Kit Also Maintains the Same Features of the Old Kit:
Completely Developed from Ground Up, Keeps Factory Bumper. Only Needs to Cut/Trim Minor Plastic Bumper.
Both Top and Bottom Brackets Hold the Intercooler Securely.
Aluminum Air Duct/Shroud Provides Better Air Flow, Maximize Cooling Efficiency.
This is CXRacing's Newest Product for The Application Stated. All Products Are Developed from The Ground up in Our R&D Center Based in The USA. Our Parts Are Designed and Built for Improved Performance Gains, with Excellent Fitment and Ease of Installation.
Application(s):
- Chassis: 2006-2010 BMW E90/E91/E92/E93
- Motor: N54 Twin Turbo Engine

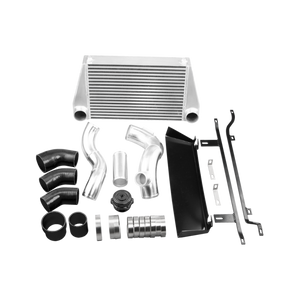

PRODUCT(S):
- 1x Aluminum Intercooler, With Mounting Brackets
- 1x Aluminum Piping Kit
- 1x Set of Silicon Hose (Black)
- 1x Set of T-bolt Clamp
- 1x Blow Off Valve
Note: Air Intake Pipe Is NOT Included
Technical Specifications:
- Intercooler: Bar & Plate Intercooler, 18"x12"x3.5" Core Size, 24"x12"x3.5" Overall Size, 3.5" Thickness Core, 2.5" Inlet/Outlet
- Piping Kit: Mandrel Bent Aluminum Pipe, 2.5" Hot Side Pipe and 2.5" and 3" Cold Side Pipes, Comes with BOV, Silicon Hoses, and T-Bolt Clamps
Installed Photos:
