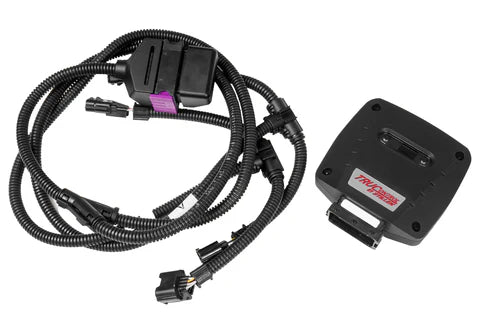

STILLEN 2020-2024 Ford Bronco Sport 2.0T TruControl Inline Tuning Module - TC202011

TC202011

Bring your Ford Bronco Sport's 2.0L to life with the TruControl by STILLEN Inline Power Module! STILLEN proudly presents this state-of-the-art enhancement, meticulously crafted to elevate your Bronco Sport 2.0L's performance with minimal effort. By seamlessly integrating the Power Module into your vehicle's wiring system and refining essential parameters, we unleash heightened boost pressure, delivering substantial boosts in power and torque throughout the entire power spectrum. And guess what? You'll be back on the road in just 15 minutes, without the hassle of specialized tools, cutting, or soldering.

But wait, there's more – we also provide tailored tuning files for Stillen performance components. With our expert tuning solutions, you can fine-tune your Bronco Sport's 2.0L performance to match your individual driving preferences.

Here's the icing on the cake - the TruControl by STILLEN Inline Power Module won't jeopardize your factory warranty! Simply remove the module before heading to the dealership for service, and your warranty remains fully intact. So, revel in the perks of enhanced power and performance worry-free. The TruControl by STILLEN Inline Power Module offers the simplest and most cost-effective horsepower upgrade for your Bronco Sport 2.0L. Feel the difference and unlock your vehicle's true potential today!

Features and Benefits:

• +22 flywheel Horsepower gain*
• +41 flywheel ft. lbs. Torque gain*
• Very easy installation; Does not alter the factory ECU
• Bluetooth integration
• Free app with smartphone integration
• No wiring or specialty tools required
• Easy removal and reversible to maintain factory warranty
• Over-the-air Custom Tuning file for aftermarket parts (exhaust, intake, etc)

• Not for sale in California

*Results may vary

The Numbers

Straight from the factory, the Ford Bronco Sport 2.0L boasts a rating of 250 horsepower. On our dyno, we recorded a maximum stock wheel horsepower output of 229 hp*. However, after integrating our TruControl by STILLEN Inline Power Module, the dynamometer revealed a significant increase, with a peak horsepower output of 245 horsepower at the wheels. Notably, the most substantial gains were observed towards the top end, with a boost of 15 wheel horsepower. This results in an overall enhancement of more than 20 horsepower at the flywheel across the RPM's. With 4wd drivetrain loss calculated, this translates to a total peak engine output of nearly 270 horsepower*.

In terms of torque increases, our TruControl truly excels. The stock dyno indicated a maximum torque of 309 ft lbs. Yet, with the TruControl by STILLEN Inline Power Module in place, our test Bronco Sport showcased a remarkable increase, delivering 340 ft. lbs of torque*. The most significant surge over stock figures occurred towards the mid range, with an additional 40 ft lbs recorded at the wheels!

These enhancements provide substantial advantages, especially for off-roading and obstacle clearing. With increased low-end torque, navigating tough terrain becomes notably easier, offering improved traction and responsiveness. Additionally, the heightened top-end horsepower provides extra passing power, allowing the engine to truly excel on the straights or flat spots off-road, ensuring a thrilling driving experience for this peppy 2.0.

*Results may vary

Easy to Use

With the engine on or with the key on, you can go through and [-/+] select which calibration you want to run at any point in time. You can use the Tuning: Pro App which also controls and resets all calibrations based on what you input in the application.

The TruControl by STILLEN Inline Power Module comes preloaded with up to 7 different maps for your Bronco. These maps are going to range anywhere from Race mode to Sport mode and even Eco mode.
