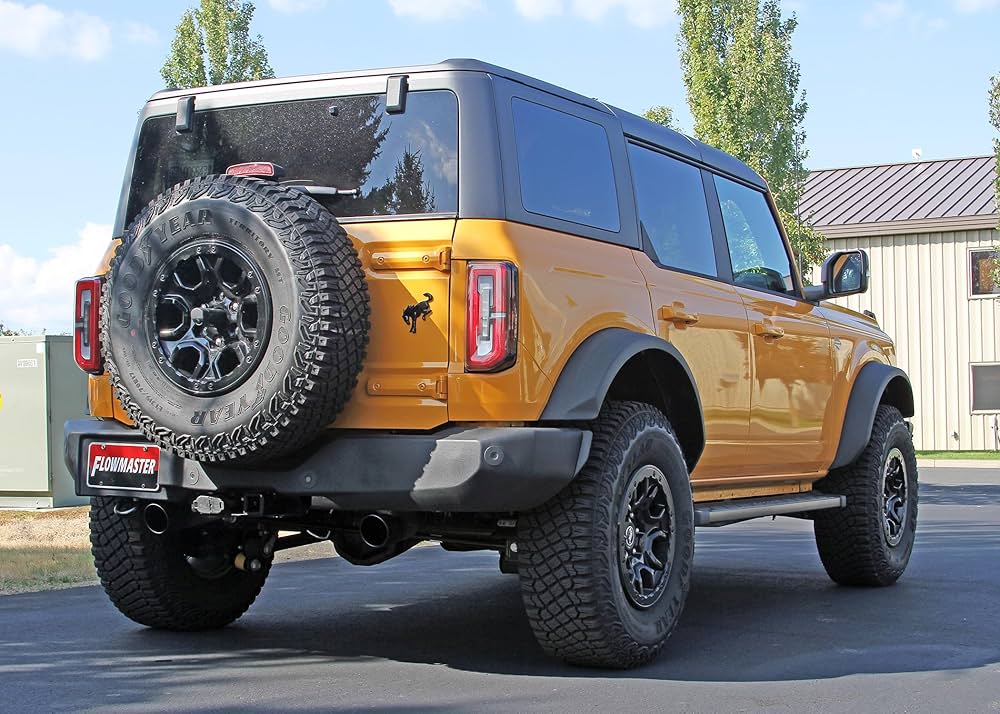

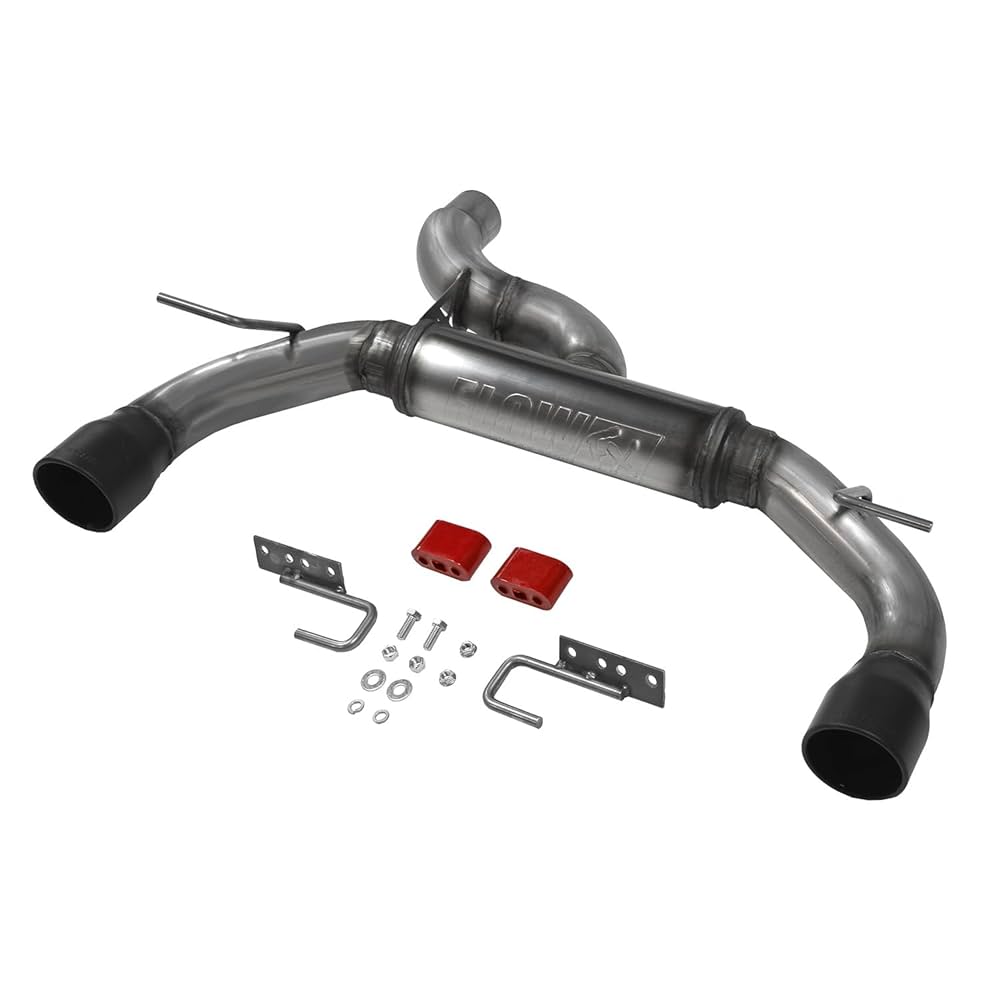

Flowmaster introduces our Flow FX axle-back exhaust system for the 2021-2025 Ford Bronco with the 2.3 or 2.7-Liter engine. This system uses a Flow FX style muffler for a deep exhaust tone with an aggressive to moderate sound level and increased performance. Maximum dyno gains of 17 hp and 18 lb-ft. were measured at the rear wheels. 3.00-inch mandrel bent 409 stainless steel tubing is used to maximize exhaust flow and durability. Dual 4.00-inch black ceramic coated tips are used to add a custom look to this iconic vehicle. All of the necessary hardware is included and factory mounting locations are used for an easy installation. Backed by Flowmaster's Lifetime Limited Warranty.
Features:
- FlowFX series performance muffler offers a deep powerful sound and increased performance
- 409 stainless steel construction delivers extra durability and improved long-term corrosion resistance
- Uses factory hanger locations for easy installation
- 3.0-inch 16-gauge mandrel bent stainless steel tubing helps maintain maximum exhaust flow for better power
- Includes all necessary hardware for an at home installation
- Dual 4.00-inch black ceramic coated tips adds a custom look
- Lifetime Limited Warranty
| Brand |
Flowmaster |
| Catalytic Converter Quantity |
0 |
| Category |
Exhaust |
| Clamping Type |
Flat Band |
| Clamps Included |
Yes |
| Emission Code |
5 |
| Exhaust Series |
FlowFX |
| Exhaust Tip Color |
Black |
| Exhaust Tip Connection |
Clamp-On |
| Exhaust Tip Cut |
Angled |
| Exhaust Tip Diameter |
4.00 IN |
| Exhaust Tip Edge |
Rolled Edge Angle Cut |
| Exhaust Tip Finish |
Black Ceramic Coating |
| Exhaust Tip Intercooled |
No |
| Exhaust Tip Length |
5.25 IN |
| Exhaust Tip Material |
304 Stainless Steel |
| Exhaust Tip Quantity |
2 |
| Exhaust Tip Resonated |
No |
| Exhaust Tip Shape |
Round |
| Exhaust Tip Wall |
Single Wall |
| Exit Position |
DOR |
| Exit Style |
Dual Out Rear |
| Finish |
Natural |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| Hangers Included |
Yes |
| Inlet Type |
Clamp-On |
| Main Piping Diameter |
3.00 IN |
| Material |
409 Stainless Steel |
| Mount Type |
Uses New Hangers (Included) |
| Mounting Bracket Included |
Yes |
| Muffler Body Diameter |
4.00 IN |
| Muffler Body Length |
14.00 IN |
| Muffler Body Material |
409 Stainless Steel |
| Muffler Body Shape |
Round |
| Muffler Color |
Silver |
| Muffler Finish |
Natural |
| Muffler Flanged Inlet |
No |
| Muffler Flanged Outlet |
No |
| Muffler Inlet Connection |
Slip-Fit |
| Muffler Inlet Diameter |
3.00 IN |
| Muffler Inlet Inside Diameter |
3.00 IN |
| Muffler Inlet Location |
Side |
| Muffler Inlet Outside Diameter |
3.13 IN |
| Muffler Material |
409 Stainless Steel |
| Muffler Outlet Diameter |
3.00 IN |
| Muffler Outlet Location |
Dual |
| Muffler Outlet Quantity |
2 |
| Muffler Overall Length |
25.00 IN |
| Muffler Part Number |
Kit Only |
| Muffler Quantity |
1 |
| Muffler Series |
FlowFX |
| Muffler Shape |
Round |
| Muffler Type |
Absorption |
| part type |
Exhaust System Kit |
| Pipe Material |
409 Stainless Steel |
| Product Type |
Exhaust System |
| Single Dual |
Dual |
| Sound Level |
Aggressive / Moderate |
| Spring Bolt Kit Included |
No |
| Sub Category |
Exhaust and Tail Pipes |
| System Type |
Axle-back |
| Tail Pipe Outlet Outside Diameter |
3.00 IN |
| Tail Pipe Quantity |
2 |
| Tail Pipe Tapered Outlet |
No |
| Tip Cut |
Angle |
| Tip Diameter |
4.00 IN |
| Tip Edge Style |
Rolled |
| Tip Finish |
Black Ceramic Coating |
| Tip Length |
5.25 IN |
| Tip Logo |
Embossed |
| Tip Material |
304 Stainless Steel |
| Tip Quantity |
2.00 |
| Tip Shape |
Round |
| Tip Style |
Single wall |
| Tubing Diameter |
3.00 IN |
| Tubing Material |
409 Stainless Steel |
| Type |
Axle-Back |
| Valve Included |
No |
| Valve Type |
Not Applicable |
| UPC |
090127140253 |
