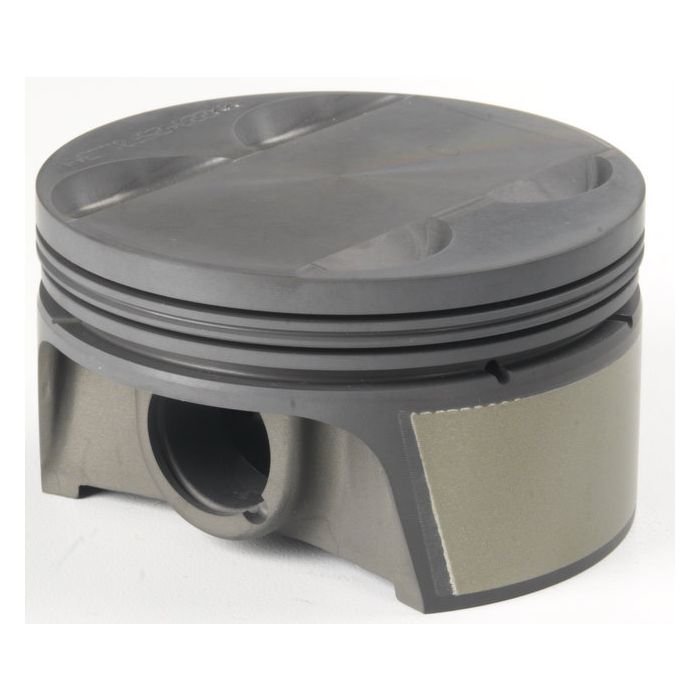

Mahle MS Piston Set Honda H22 87mm Bore 90mm Stroke 143mm Rod -1cc 10.5 CR Set of 4
930082325
Honda H22 Gold Series 2.2L, Bore 87.0mm, Stroke 90.7mm, Rod Length 143.0mm, Flat Top -1cc, 309 Grams Advertised Weight, Set of 4 Pistons and Rings Included.
For Use In Factory FRM (Fiber Reinforced Matrix) Cylinders Only
| Vehicle Make | Honda H22 |
|---|---|
| Bore Size | 3.425 |
| Crankshaft Stroke | 3.571 |
| Rod Length | 5.630 |
| Piston Type | Flat Top |
| Compression Height | 1.220 |
| Piston Material | 4032 Forged |
| Piston Ring Size | 1.2 1.2 2.8mm |
| Wrist Pin Size | 22mm |
MAHLE is the world's leading manufacturer of high quality performance pistons and engine components. With a long heritage in Formula 1 and other profile race series worldwide, it was a natural evolution to introduce a line of products to the North American market. A new division, MAHLE Motorsport, was formed in 2000 to develop performance piston and related components specifically designed for all US racers and performance enthusiasts.
The MAHLE PowerPak is a complete, race proven piston assembly kit composed of hand deburred, forged, performance coated pistons, high quality steel pins, round wire locks and low drag performance rings. Performance coasting include a phosphate dry lubricant that is used to protect against ring micro-welding and pin galling during initial startup and break in. For added performance, MAHLE applies its proprietary Grafal anti-friction coating to each piston skirt.
