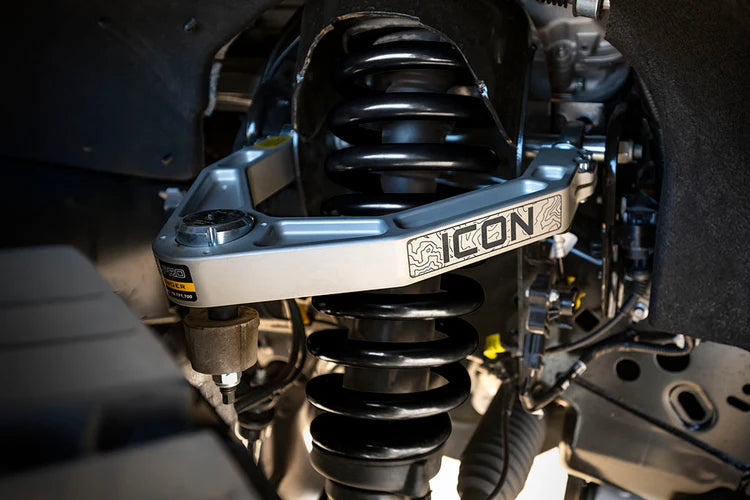

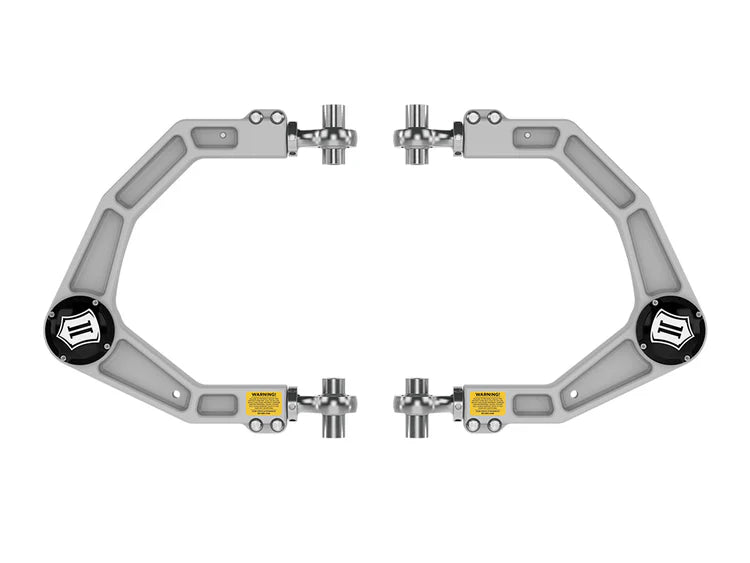

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new Gen3 Ford Raptor with corrected front end geometry, adjustable camber and caster, and improved suspension component clearance. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties. Replacing the OE ball joint with the ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 7/8” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect upgrade for the 2021-2025 Ford Raptor.

Key Features

• CNC machined 6061 billet aluminum construction with satin anodized finish
• Corrects suspension geometry and allows for proper wheel alignment on Gen3 Raptors with up to 3” of front lift
• Quick, precise, on-vehicle adjustment for both caster and camber
• Patented Delta Joint PRO (U.S. Pat. 10,731,700) allows maximum articulation without binding
• Delta Joint PRO is 100% serviceable and rebuildable
• FK Rod Ends at chassis pivots for strength and precision driving characteristics
• Built in O-ring sealed dust cover cap



Technical Notes

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5" Backspace/6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 5.25" Backspace/6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20" x 9" with 5.625" Backspace/16mm Offset
• Recommended Aftermarket Tires: 35X12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
