Radium 2013 - 2020 Subaru BRZ / Toyota 86 / 2013 - 2016 Scion FRS Fuel Hanger (Pumps Not Included)
Radium Engineering

Radium 2013 - 2020 Subaru BRZ / Toyota 86 / 2013 - 2016 Scion FRS Fuel Hanger (Pumps Not Included)

$541.34
Shipping calculated at checkout.
 More payment options

20-1073

20-1073 COMPATIBILITY
12-21 Toyota GT86
12-20 Subaru BRZ
12-16 Scion FR-S

20-1074 COMPATIBILITY
2022+ Toyota GR86
2022+ Subaru BRZ

OVERVIEW

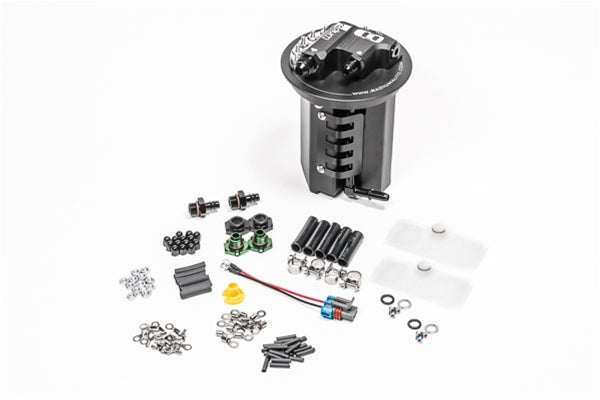

The new Radium Engineering fuel pump hanger has been redesigned for improved fuel collection and for ease of installation. It completely replaces the factory in-tank fuel pump module and allows 1 or 2 aftermarket fuel pumps to be used. The OEM level sender is retained in order to maintain factory functionality.

Part number 20-1073 (shown above) is specific to the 12-21 Toyota GT86, Subaru BRZ, and Scion FR-S fuel tanks.

Part number 20-1074 (shown above) is specific to the 2022+ Subaru BRZ and Toyota GR86 fuel tanks.

FUEL PUMP COMPATIBILITY
*Ti Automotive Walbro F90000267
*Ti Automotive Walbro F90000274
*Ti Automotive Walbro F90000285
**Deatschwerks DW440 (brushless)
**Deatschwerks DW810 (brushless)
**Fuelab 49614 (brushless)
**Protec 11928 (brushless)

There will be enough components included to use 1 or 2 fuel pumps. Depending on the setup, some parts will simply not be used.
*Sock filters are provided in these kits for these fuel pumps.
**Sock filters are included from the fuel pump manufacturer.

FEATURES
-8AN ORB to 8AN Male Pump-Out Fitting
-6AN ORB to 6AN Male Return Fitting
-Collector Box with 1-Way Fill Valve
-Venturi Jet Pump Siphon
-High Current Electrical Connections
-Anodized Fuel Level Sender Mount
-Twin Fuel Pump Compatibility
-Brushless Pump Compatibility
-Single Merged Fuel Pump Outlet
-Stainless Hardware and Clamps
-Alternative Fuel Compatibility
-New Anti-rotation Electrical Terminals

PREVENTING FUEL STARVATION
The kit includes a 1-piece anodized aluminum collector box that makes installation a breeze and keeps fuel trapped around the pump inlet(s). There is a 355 LPH 1-way fill valve incorporated in the bottom of the collector that allows fuel in, but not out.

Furthermore, the collector box is constantly replenished with fuel returning from the pressure regulator.
