Manley 93.5-99 Mitsubishi Eclipse GST GSX / 2003 - 2006 Evo 8/9 Pro Series I Beam TT Rods w ARP 625+ Bolts
14400R6-4

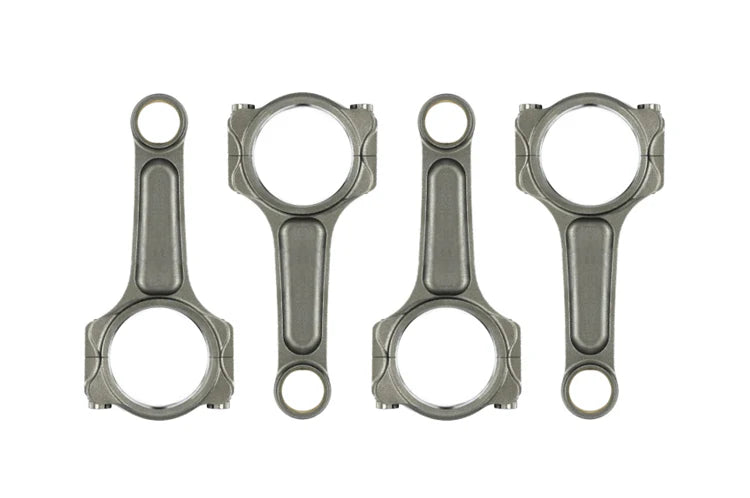

Manley Mitsubishi 03-05 Evolution VIII 2.0L 4G63 Pro Series I-Beam Connecting Rod Set – 5.905 in. Length
Manley Performance Pro Series I-Beam Turbo Tuff rods for the 7-Bolt 4G63 DSM and Evo are available with the standard Turbo Tuff 4340 material or the upgraded 300M alloy to handle an additional 400 HP. The I-Beam rods come with 3/8" ARP 2000 rod bolts or upgrade to the ARP 625+ bolts. Includes a full set of 4 rods with Manley assembly lube.
Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
1992.5-1992 Galant VR4
Standard I-Beam Turbo Tuff Features:
• Forged from 4340 aircraft quality vacuum degassed material
• Shot peened after machining to MIL spec and 100% individually magnafluxed
• Specifically designed to handle high horsepower
• Flywheel horsepower range is 1000
300M I-Beam Turbo Tuff Features:
• Forged from 300M Alloy
• Shot peened after machining to MIL spec and 100% individually magnafluxed
• Specifically designed to handle high horsepower
• Flywheel horsepower range is 1400
Includes:
Set of 4 Rods
Manley Lube
| Product Market |
Sport Compact |
|---|---|
| Average Gram Weight |
625 GR |
| Big End Bore |
1.890 IN |
| Center To Center Length |
5.905 IN |
| Journal Size |
Stock |
| Length |
Stock |
| Pin End Bore |
0.8671 IN |
| Wrist Pin Diameter |
0.866 IN |
| Connecting Rod Series |
Pro Series I-Beam |
| Connecting Rod Sub-Series |
Turbo Tuff® |
| Product Type |
Engine Connecting Rod Set |
| Rod Quantity |
4 |
| Connecting Rod Type |
I-Beam |
| Connecting Rod Material |
4340 |
| Engine Detail – Web |
2.0L 4G63, 2.0L 4G63T |
