CXracing Turbo Kit - 2005 - 2013 Chevrolet Corvette C6 - Intercooler and Radiator Included

TRB-KIT-LS-C6-GT45-IC

CXRACING TURBO + INTERCOOLER + RADIATOR KIT FOR 2005-2013 CHEVROLET CORVETTE C6

GT45 Big Turbo Supports 800 HP. Can't Keep A/C.

This Is Our Innovated Design for Corvette C6, No Cut, Bolt On Fitment. Easy Install and Makes Big Power.

GT45 Ball Bearing Turbo, Supports 800 HP

Dual 44mm Vband Wastegates, One for Each 4 Cylinders

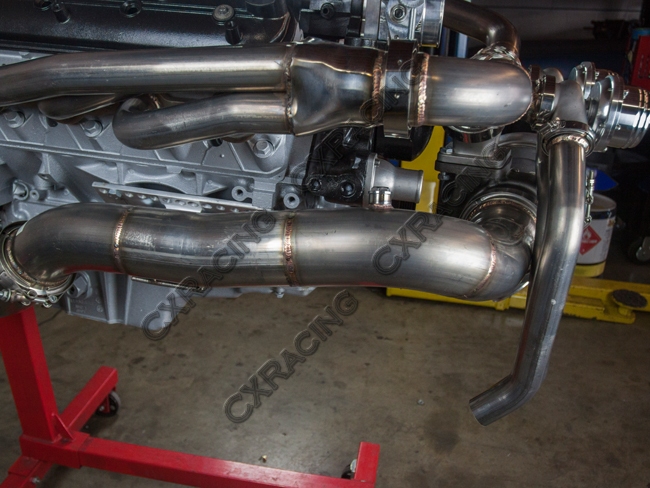

Turbo Headers Connected via A Perfectly Merged Turbo Adapter for The Best Air Flow

- 3.5" Big Turbo Downpipe
- 2.5" Header Cross Pipe
- 50mm BOV
- Bolt On Fitment, Comes with Brackets to Mount Intercooler, Radiator

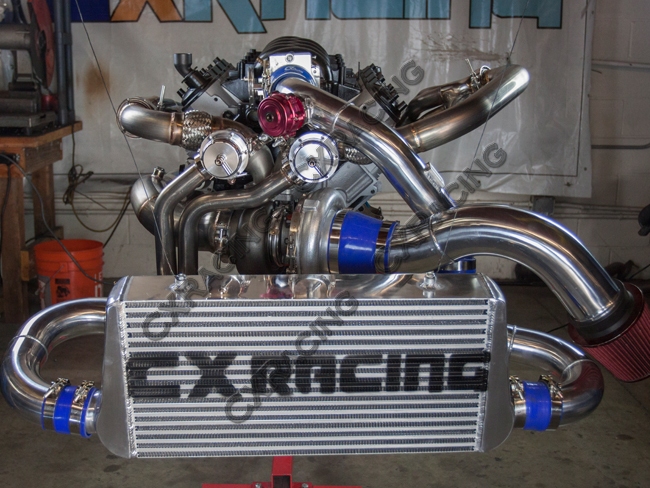

- Big 4" Core Intercooler
- 3" Intercooler Piping Kit
- Comes with New Radiator, Shroud and Fans, Replaces Restrictive Stock Radiator

NOTE:
1. This Kit Needs to Remove Stock Radiator, Replaces It with Our New Radiator.

2. Needs to Remove A/C (Don't Have Room For A/C Condenser).

3. Need to Drill Oil Return Port on the Oil Pan for Turbo Oil Return.

4. Need to Work On the Exhaust System to Connect to the Downpipe (Due to Many Exhaust Options, The Downpipe Is NOT Connected to Stock Exhaust).

5. This Kit Is For Turbo Hardware ONLY, You Will Need to Upgrade Engine's Fuel System and Tune the Engine.

6. For Automatic Transmission, Need to Add An External Oil Cooler, NOT Included. For Manual Transmission, It Is Highly Recommended to Upgrade the Oil Cooler As Well.

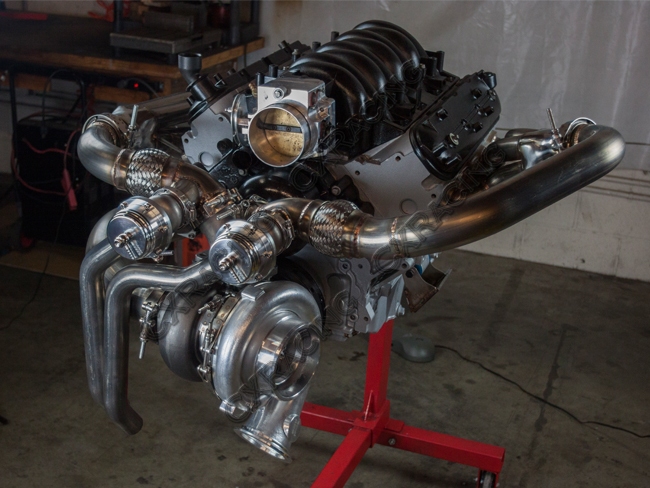

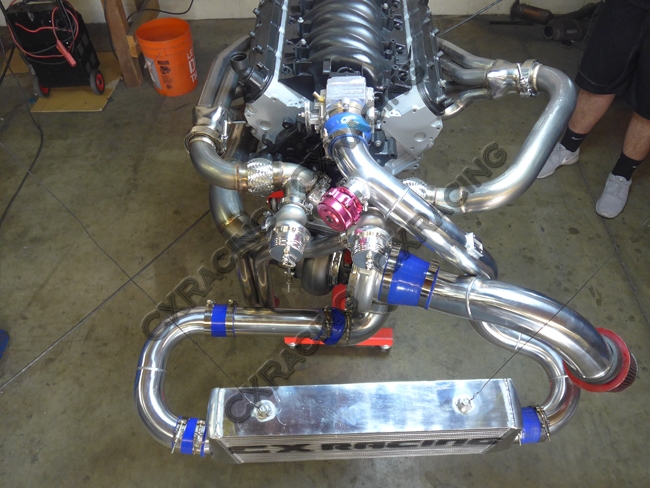

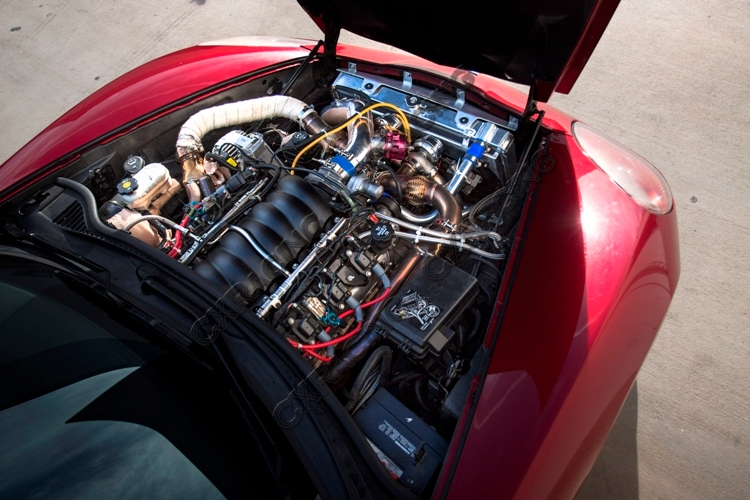

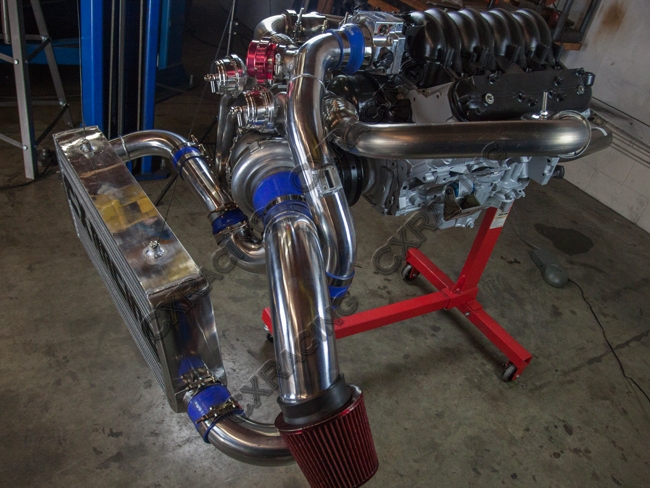

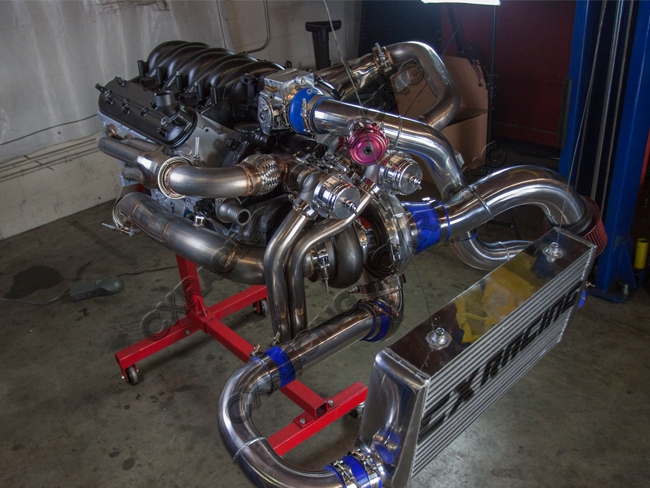

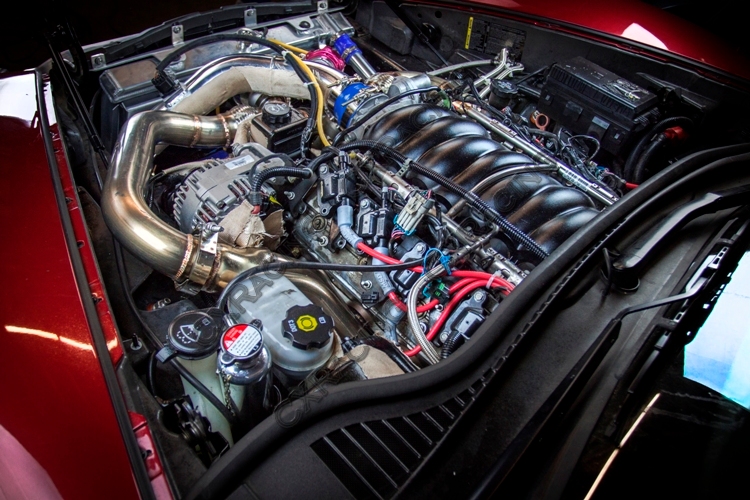

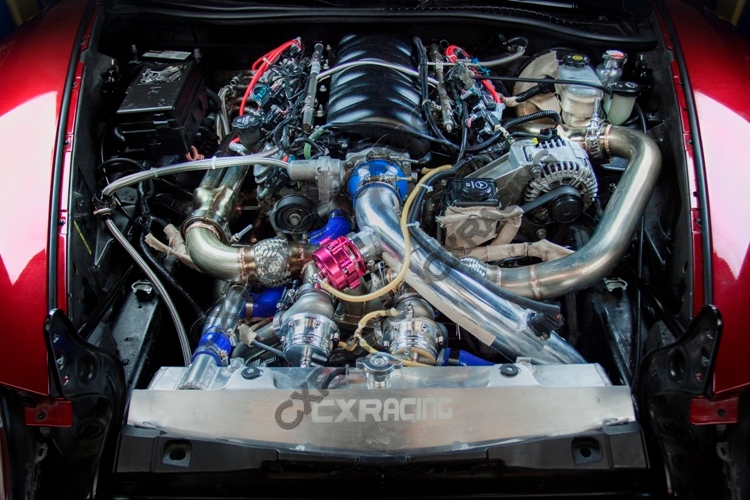

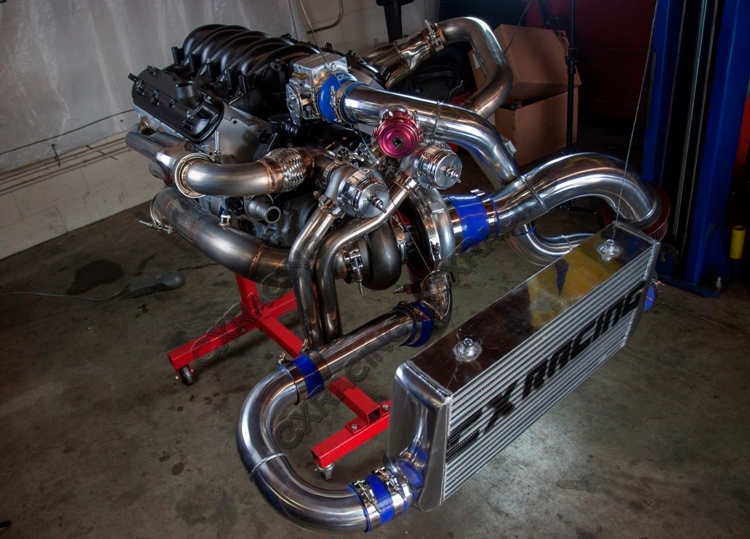

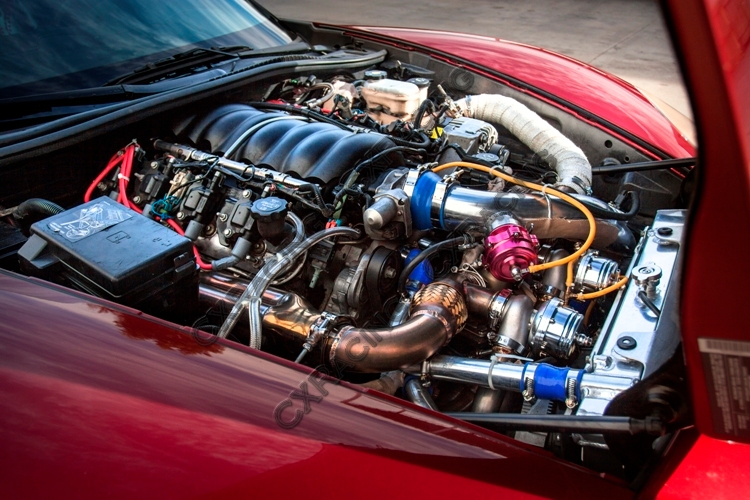

7. There Is NO Installation Guide Provided, However, We Show Many Installed Pictures On Car and On Engine Stand.

8.This Product was developed based on US model Left-Hand-Drive chassis. For Right-Hand-Drive, due to potential conflict with steering shaft, fitment most likely will be an issue and we don’t guarantee fitment. Modification is needed and we won’t accept return due to Right-Hand-Drive fitment issues.

APPLICATION:

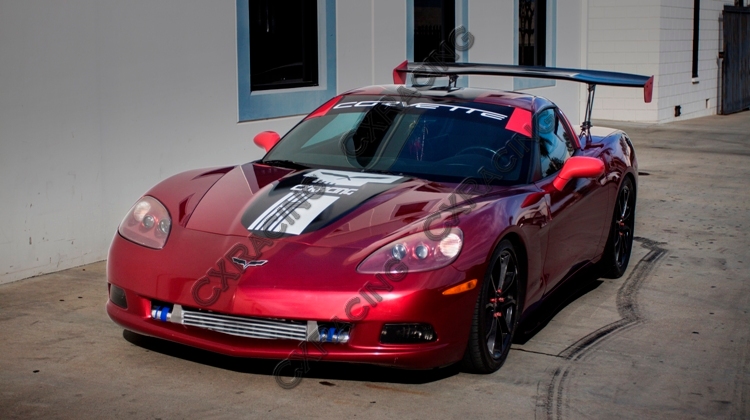

- Chassis: 2005-2013 Chevrolet Corvette C6
- Engine: LS3

PRODUCT BEING SOLD:

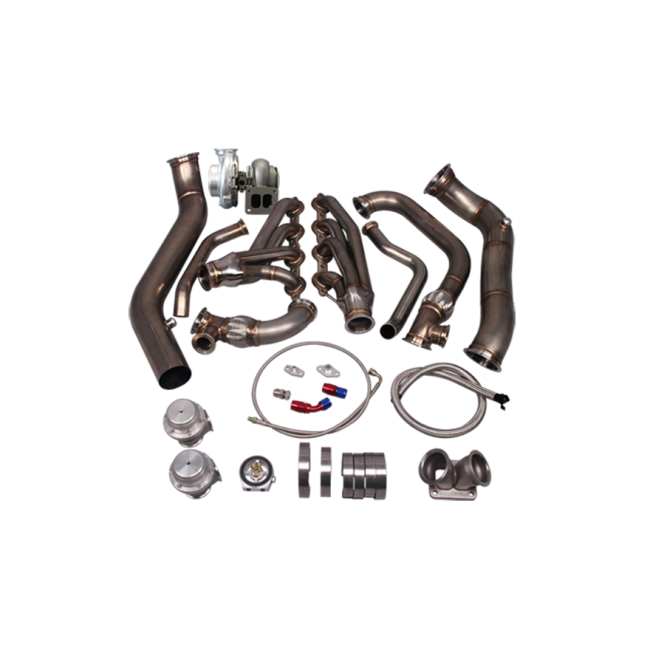

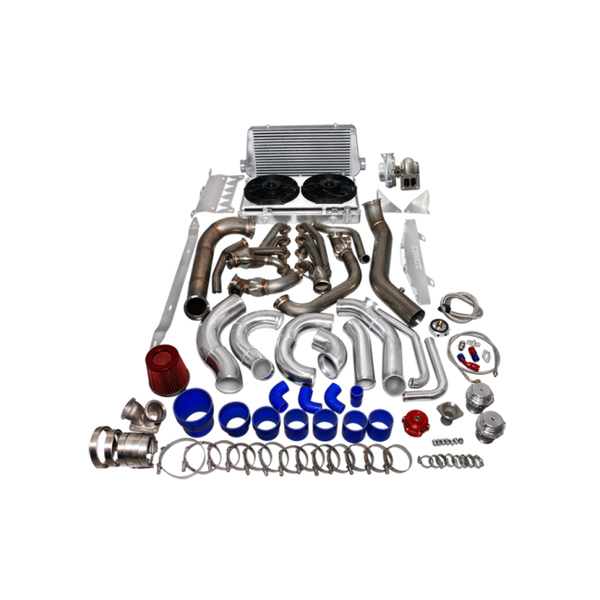

Turbo Headers + Cross Pipe + Turbo + Wastegates + Downpipe + Intercooler + Piping Kit + Radiator + Shroud+ Fans + Mounting Brackets

PRODUCT INFO AND SPEC:

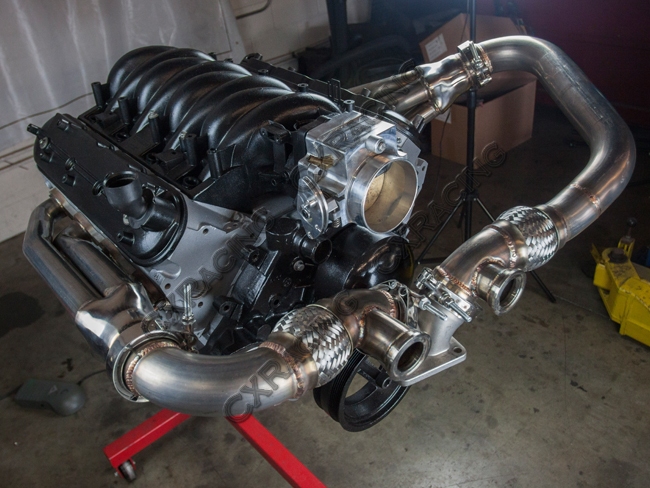

HEADERS/MANIFOLD：

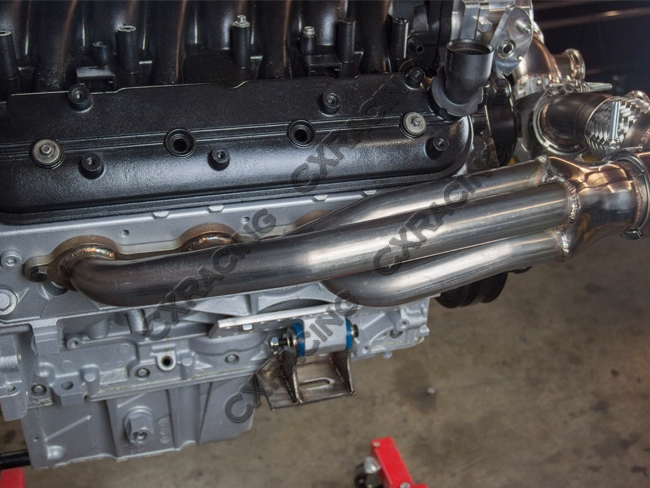

- 304 Stainless Steel Headers, 1.65" Runners

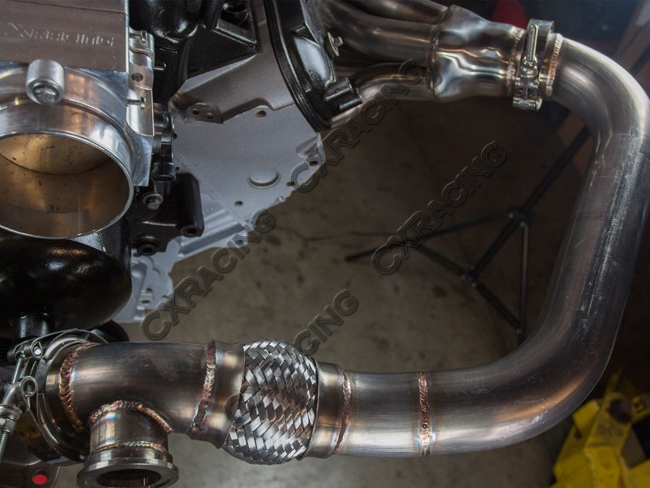

- 2.5" Cross Pipe
- Bolt On Fit, No Need To Cut or Relocate Other Parts

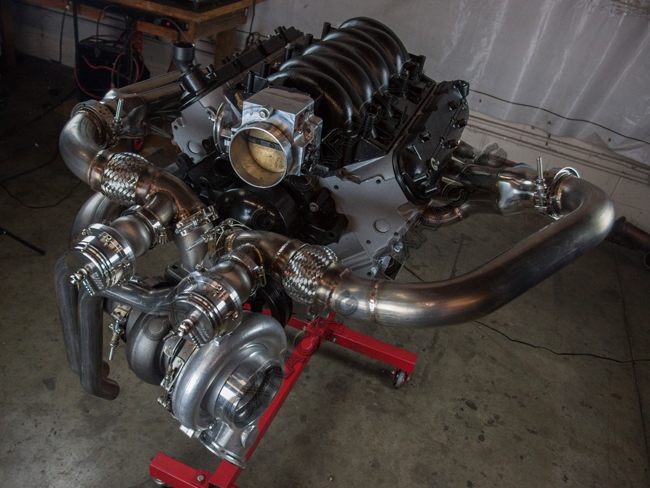

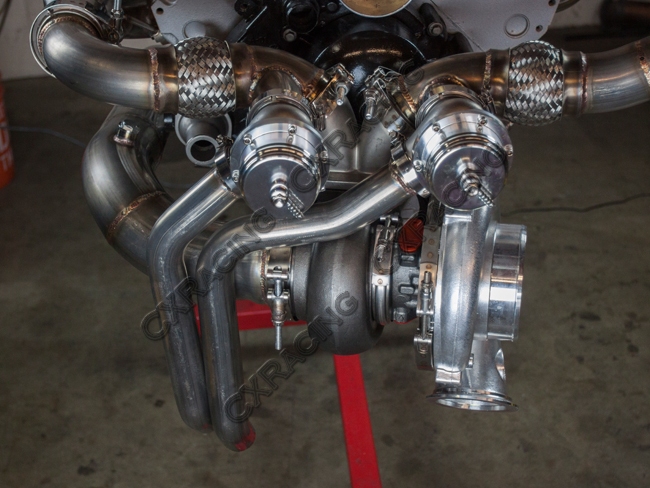

GT45 TURBO AND WASTEGATES:
- 5" Air Inlet
- Ceramic Ball Bearing on Compressor Side Compressor
- Standard T4 Turbine Housing Flange
- 3.5" V-Band Exhaust Outlet
- Oil Cooled
- 0.60 A/R Compressor
- 1.15 A/R Turbine
- Dual 44 mm Vband 8 PSI Wastegate

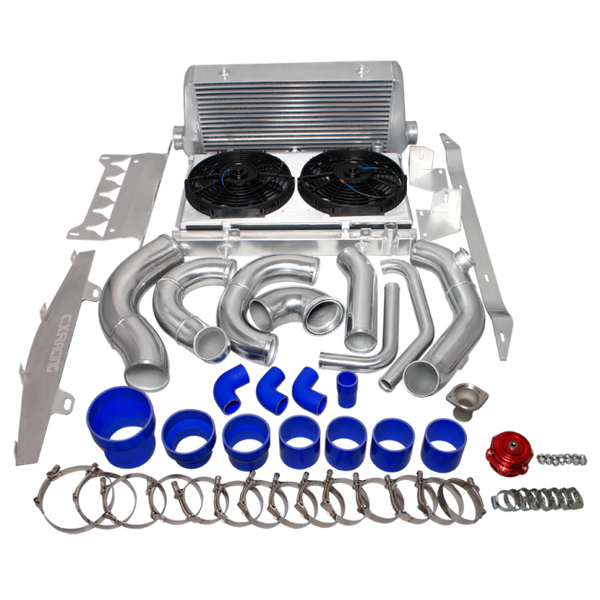

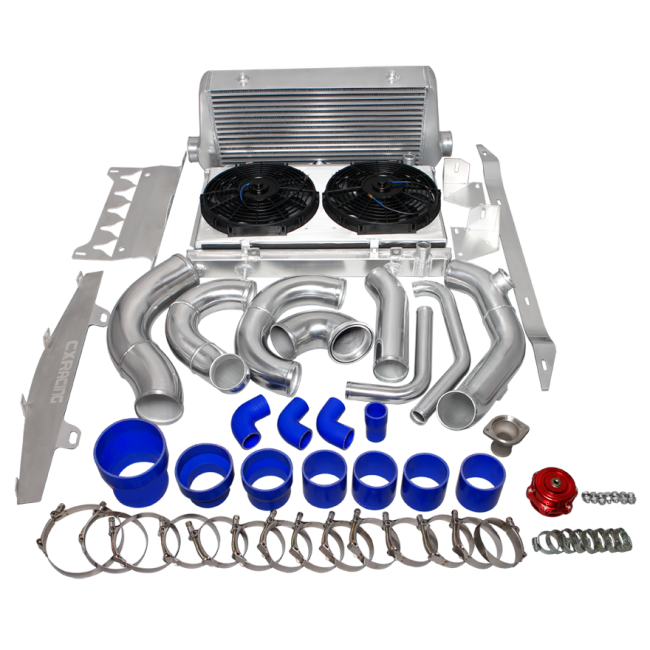

INTERCOOLER KIT:
- Bar & Plate Construction
- Core Size: 24"x12"x4"
- Overall Size: 31"x12"x4"
- 3" Inlet & Outlet
- Mandrel Bent Aluminum Piping Kit
- 3" Mandrel Bent Pipe
- Intercooler Comes with Aluminum Brackets
- 50mm BOV, Silicon Hoses and Clamps

RADIATOR + SHROUD + FANS:
- Overall Size:26"x20"x2"
- Core Size: 25"x14"x2"
- 1.25" Inlet & Outlet:1.25"
- Rows: 2
- Pressures Released Cap: 1.1 Bar or 16 Lbs
- Aluminum Shroud
- Two High Performance Slim Electric 12" Fans

NOTES:
- Off Road or Track Use ONLY, NOT for Street Use.
- Due to The Complexity of Swapping a Motor to Different Chassis, Please Make Sure that You Understand the Application Stated Here are the Right Parts for Your Project.
- Parts Being Sold are The Kit Being Advertised ONLY. Other Parts Shown On Pictures are For Demo Only (of Our Complete Swap Kit). Check Our Other Website Items.
　

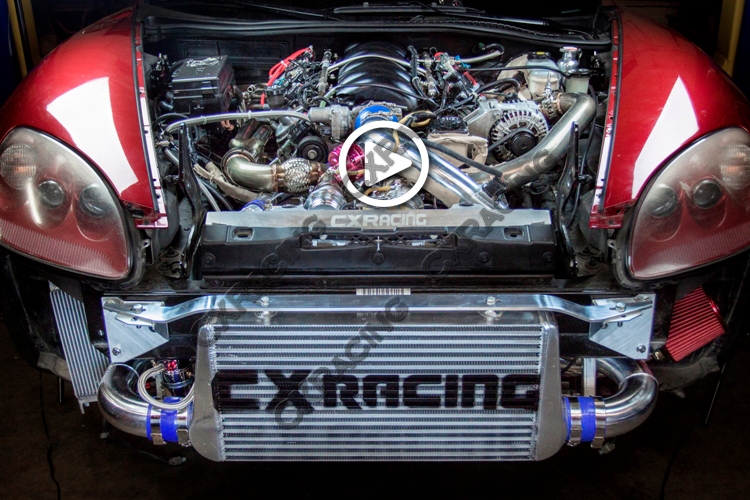

CLICK BELOW PICTURE TO SEE VIDEO:

CLICK BELOW PICTURE TO SEE FLOWBENCH TEST:  　

HIGHLIGHTS:
- Especially Designed, Made for the Application Stated.
- Fully Tested, Simple Easy Installation.
- Offers Excellent Performance Gains.

ITEM(S) INCLUDED:

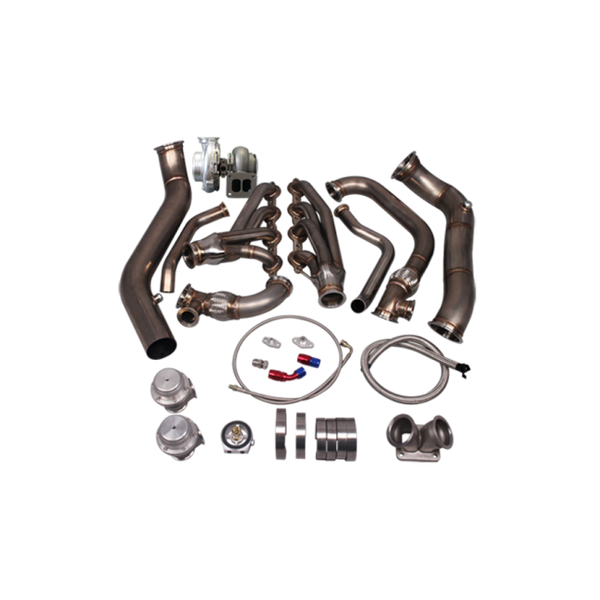

- GT45 Turbo Charger + 2x 44 mm WG + Oil Line kit
- Headers + Cross Pipe+ Downpipe
- Intercooler + Brackets + 50mm Blow Off Valve
- Aluminum Piping Kit with Silicon Hoses and Clamps
- Air Filter
- Radiator + Shroud + Fans
- Intercooler and Radiator Mounting Brackets
