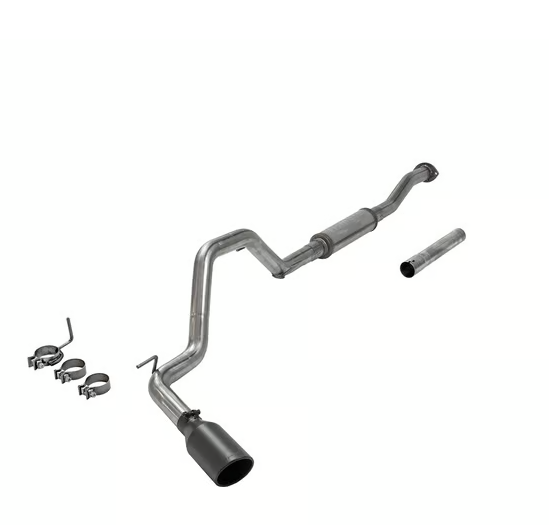

The new Flowmaster® Flow FX® cat-back exhaust system for the 2016-2023 Toyota Tacoma with the 3.5L engine is manufactured using durable 409 stainless steel throughout and features 2.50-inch mandrel bent pipes for better exhaust gas flow, and a Flow FX "straight-through" muffler for a great moderate sound level and maximum performance. The system is finished off with a 3.50-inch diameter black ceramic-coated 304S stainless steel tip, giving your Tacoma a custom look that goes hand in hand with that deep performance Flow FX sound. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster's lifetime Limited Warranty.
Features:
- Increases of up to 9 hp and 10 lb/ft over the stock exhaust
- 2.5-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability
- Includes a large 3.5-inch black ceramic coated tip for an aggressive look
- Includes complete hardware and factory styled hangers in the stock locations for an easy installation
- FlowFX “straight through” performance muffler delivers a deep, moderate performance tone and improves exhaust flow
- Backed by Flowmaster’s Lifetime Limited Warranty
| Brand |
Flowmaster |
| Catalytic Converter Quantity |
0 |
| Category |
Exhaust |
| Clamping Type |
Flat Band |
| Clamps Included |
Yes |
| Emission Code |
5 |
| Exhaust Series |
FlowFX |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Tip Color |
Black |
| Exhaust Tip Connection |
Clamp-On |
| Exhaust Tip Cut |
Angled |
| Exhaust Tip Diameter |
3.50 IN |
| Exhaust Tip Edge |
Rolled Edge Angle Cut |
| Exhaust Tip Intercooled |
No |
| Exhaust Tip Length |
11.00 IN |
| Exhaust Tip Material |
304 Stainless Steel |
| Exhaust Tip Quantity |
1 |
| Exhaust Tip Resonated |
No |
| Exhaust Tip Shape |
Round |
| Exhaust Tip Wall |
Single Wall |
| Exit Position |
Single Out Side |
| Exit Style |
Single Out Side |
| Finish |
Natural |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| Hangers Included |
Yes |
| Inlet Type |
Flanged |
| Main Piping Diameter |
2.50 IN |
| Material |
409 Stainless Steel |
| Mount Type |
Uses factory hangers |
| Mounting Bracket Included |
No |
| Muffler Body Height |
4.00 IN |
| Muffler Body Length |
14.00 IN |
| Muffler Body Material |
409 Stainless Steel |
| Muffler Body Shape |
Round |
| Muffler Body Width |
4.00 IN |
| Muffler Color |
Silver |
| Muffler Finish |
Natural |
| Muffler Flanged Inlet |
No |
| Muffler Flanged Outlet |
No |
| Muffler Inlet Connection |
Slip-Fit |
| Muffler Inlet Diameter |
2.50 IN |
| Muffler Inlet Inside Diameter |
2.50 IN |
| Muffler Inlet Location |
Center |
| Muffler Inlet Outside Diameter |
2.63 IN |
| Muffler Material |
409 Stainless Steel |
| Muffler Outlet Connection |
Slip-Fit |
| Muffler Outlet Diameter |
2.50 IN |
| Muffler Outlet Location |
Center |
| Muffler Outlet Quantity |
1 |
| Muffler Overall Length |
20.00 IN |
| Muffler Part Number |
Kit Only |
| Muffler Quantity |
1 |
| Muffler Series |
FlowFX |
| Muffler Shape |
Round |
| Muffler Type |
Absorption |
| part type |
Exhaust System Kit |
| Pipe Material |
409 Stainless Steel |
| Product Type |
Exhaust System |
| Single Dual |
Single |
| Sound Level |
Moderate |
| Spring Bolt Kit Included |
No |
| Sub Category |
Exhaust and Tail Pipes |
| System Type |
Cat-back |
| Tail Pipe Outlet Outside Diameter |
2.50 IN |
| Tail Pipe Quantity |
1 |
| Tail Pipe Tapered Outlet |
No |
| Tip Cut |
Angle |
| Tip Diameter |
3.50 IN |
| Tip Edge Style |
Rolled |
| Tip Finish |
Black Ceramic Coating |
| Tip Length |
7.50 IN |
| Tip Logo |
Embossed |
| Tip Material |
304 Stainless Steel |
| Tip Quantity |
1 |
| Tip Shape |
Round |
| Tip Style |
Single wall |
| Tubing Diameter |
2.50 IN |
| Tubing Material |
409 Stainless Steel |
| Type |
Cat-Back |
| Valve Included |
No |
| Valve Type |
Not Applicable |
| UPC |
090127107508 |
