CX Racing Turbo Kit (Header, Manifold, Downpipe, Intercooler) FOR 2005 - 2014 Ford Mustang 4.6L V8 NA-T

• Product Code: TRB-KIT-46-MUSTANG0514-IC

CXRACING SINGLE TURBO HEADER DOWNPIPE KIT + INTERCOOLER KIT FOR 5TH GENERATION 2005-2014 FORD MUSTANG 4.6L V8

Comes with T76 Turbo (0.81 AR Turbine Housing for Fast Spool), Turbo Header, Cross Pipe, Wastegate, Dump Tube, Intercooler Kit, Coolant Reservoir and Power Steering Fluid Tanks, Oval Intake Elbow, Fan Shroud.

Header Supports Single T4 Turbo with 3" Vband Exhaust Outlet and 44/46mm Vband Wastegate

Perfect Fitment, No Cut, Keeps AC. Supports Up to 700 HP Depends on Engine Build and Boost Level

NOTE:
1. Due to Limited Space for Turbo Placement, Need to Replace Stock Radiator Fan Shroud with the Fan Shroud Included. However, If You Already Have Thicker Aftermarket Aluminum Radiator, Then Can't Use This Fan Shroud, Only Can Use the Slim Fans.
2. Need to Extend Stock MAF Sensor Wire, Due to Change of Intake Location.

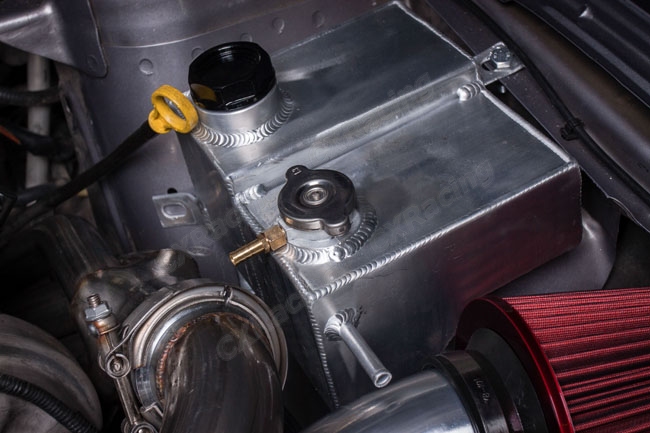

3. Need to Replace Stock Coolant Tank and Power Steering Fluid Reservoir Tank (Included)
4. Can’t Keep Windshield Washer Tank
5. Downpipe End Is 3", Need to Weld Flange or Connect to Your Existing Exhaust System.
6. This Is for Turbo Hardware Kit ONLY. You Will Need to Build Your Engine and Upgrade Your Fuel System and Re-Tune Your Engine Management System.

This is CXRacing's Newest Product for The Application Stated. All Products Are Developed from The Ground up in Our R&D Center Based in The USA. Our Parts Are Designed and Built for Improved Performance Gains, with Excellent Fitment and Ease of Installation.

APPLICATION(S):
- Chassis: 5th Generation 2005-2014 Ford Mustang
- Engine: 4.6L V8

All Other Parts Shown are NOT INCLUDED. We Do Offer Different Combination of Kits Which Include These Other Products Shown, Please Check Our Other Items or Contact Us For More Information.

PRODUCT(S):
- Pair of Header x1
- T76 Turbo Charger x1
- 44mm 8PSI Vband Wastegate x2
- Oil Filter Sandwich and Oil Line Kit x1
- Cross Pipe x2
- Downpipe x2
- WG Dump Tube x2
- Coolant/PS Fluid Tank x1
- Oval to 3" Intake Elbow x1
- T4 Turbo Y Elbow Pipe x1
- Set of Vband Clamp x1
- Intercooler, with Mounting Brackets x1
- Aluminum Intercooler Piping Kit and Radiator Hard Pipe Kit x1
- Set of Silicon Hose x1
- Set of Clamp x1
- Blow Off Valve x1
- Air Filter x1
- Radiator Fan Shroud x1
- Radiator Fan x2

TECHNICAL SPECIFICATIONS:
T76 TURBO CHARGER

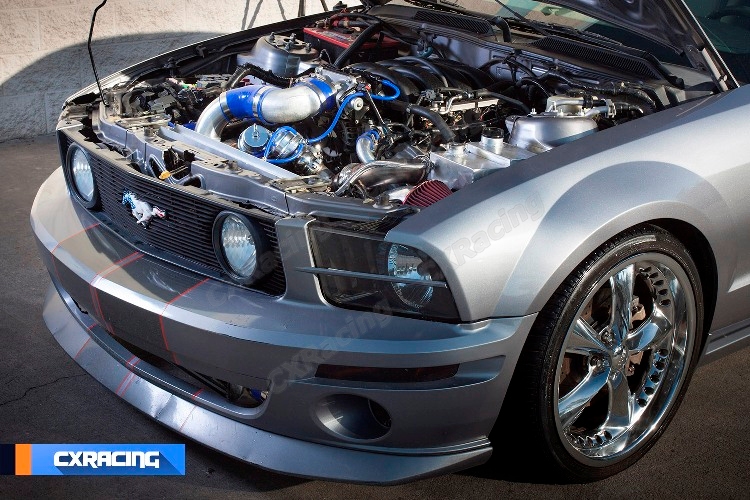

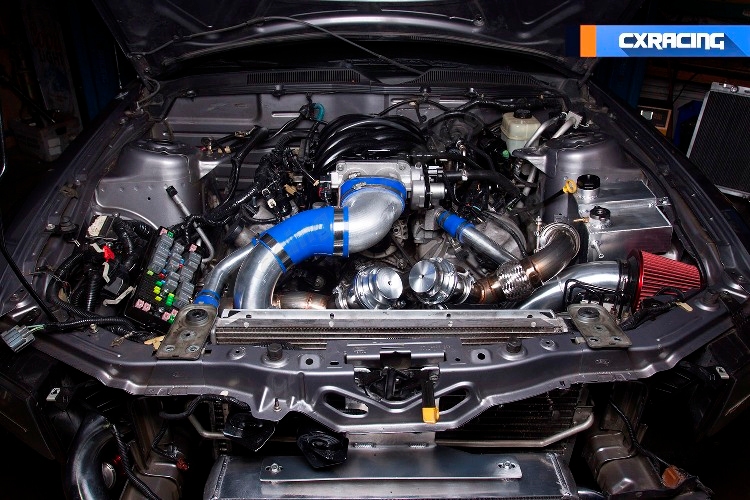

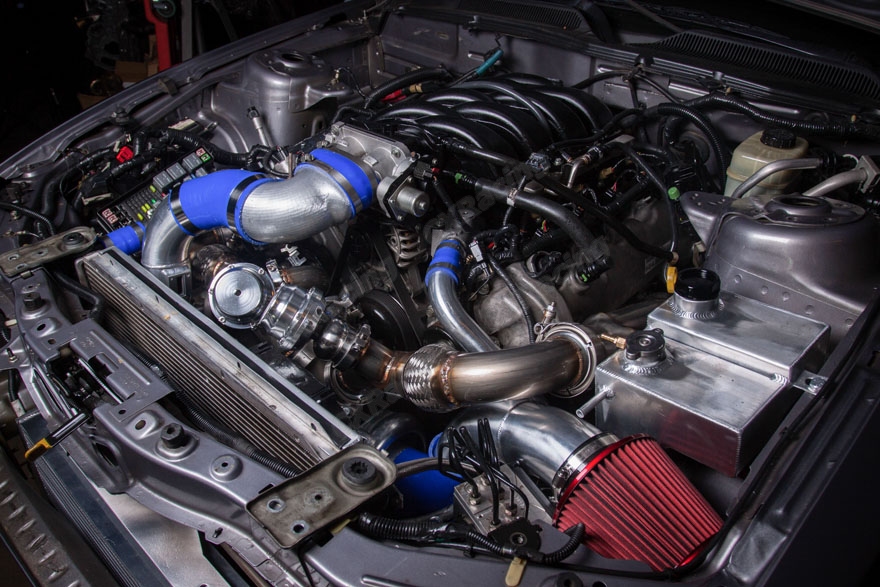

BELOW ARE INSTALLATION PICTURES:
