Mahle

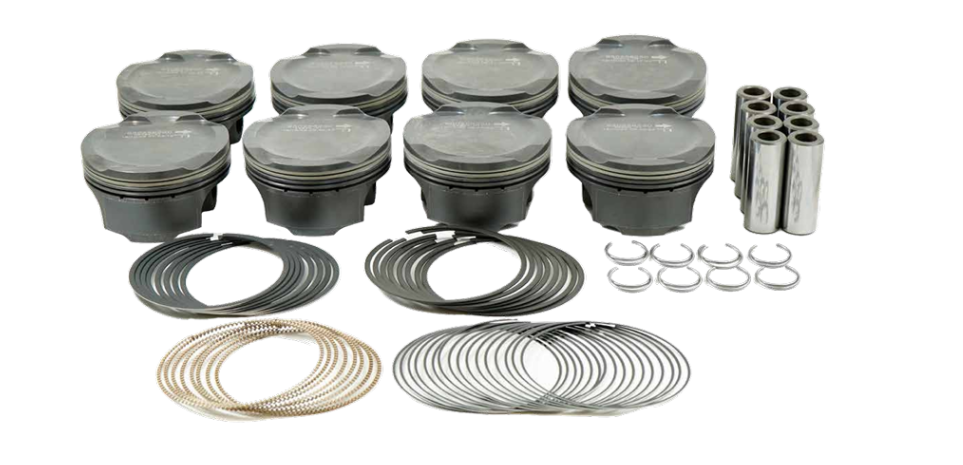

Mahle MS Piston Set Ford Coyote 314ci 3.701in Bore 3.650in Stroke 5.933in Rod .866 Pin -1cc 11CR

$1,085.15

Shipping calculated at checkout.

930258601

Mahle PowerPak Plus Forged Pistons Mustang GT 11-17 5.0L Coyote 94mm 3.701 +0.071" -1 cc 11.0:1

Model	Mustang GT 11-14 S197, Mustang GT 15-17 S550
Engine	5.0L Coyote Gen 1, 5.0L Coyote Gen 2
Rod Length	5.933" / 150.7mm
Rod Length Oversize	Standard Length
Bore Diameter	94mm
Stroke	92.7mm (Standard Stroke)
Compatible with Stock Sleeves	No
Requires Aftermarket Sleeves	Yes
Compression Ratio	11.0:1
Pin Size	0.866" / 22mm
Included Ring Set	Includes Rings
Head cc	57 cc
Face Type	Dome
Dome cc	-1 cc
Compression Height	1.167" / 29.64mm
Piston Coating	Skirt Coating
Brand	MAHLE Motorsports
Skirt Type	Slipper Skirt
Piston Material	2618
Carb Legal	No
Wrist Pin Wall Thickness	0.177"
Wrist Pin Dimensions	.866" x 2.405" x .177"
