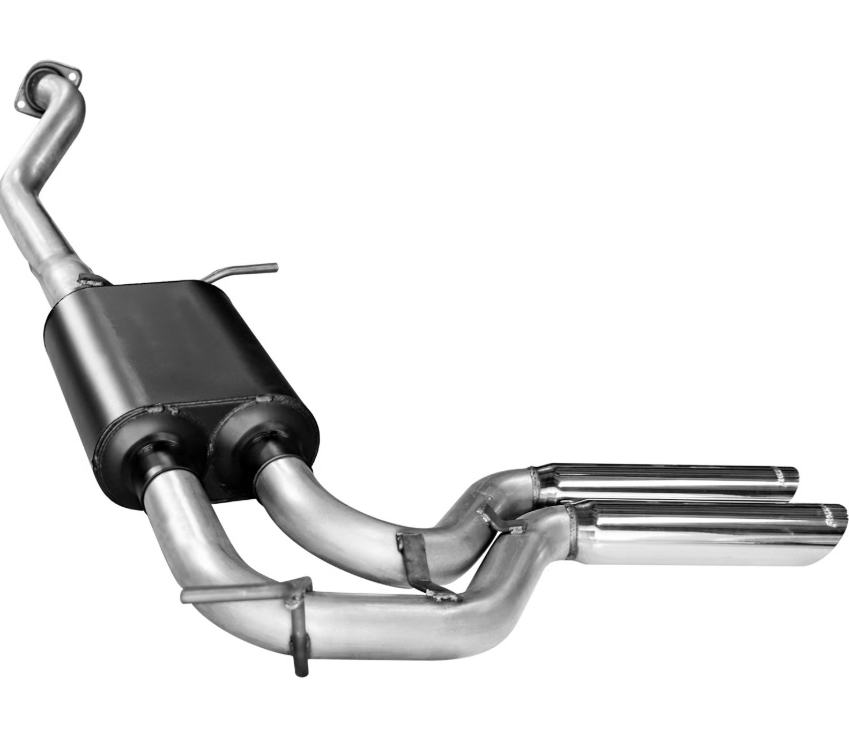

For the person who wants the aggressive look of a NASCAR race truck along with all the benefits that a Flowmaster Cat-back exhaust system provides. D.O.S.S. (Dual out same side) systems are the perfect choice. The American Thunder systems deliver a moderate to aggressive interior and exterior tone and are suited to the enthusiast who wants their performance to be heard. The exhaust system is constructed from 3.00-inch mandrel-bent aluminized steel tubing flowing into a Super 40 Series performance muffler for a deep powerful sound, then is finished off with dual 2.50-inch tailpipes and a pair of 3.00-inch polished stainless steel tips. Includes all necessary hardware, instructions and is covered by our 3-year Limited Warranty. For those who prefer full stainless steel construction and a Lifetime Limited Warranty, check out part# 817395. Notes: Fits both 2/4 wheel drive models with extended cab/short bed configuration on a 143.5-inch wheelbase.
Features:
- Includes Hangers and Hardware for an Easy Installation
- Mandrel-bent 16-gauge Aluminized Steel Tubing
- Moderate to Aggressive Exterior Exhaust Tone
- Dual 3.00-inch Polished Stainless Steel Tips
- Dyno Tuned for Maximum Performance
- Super 40 Series Performance Muffler
- Uses the Factory Hanger Locations
- Quick and Easy Installation
| 2WD/4WD |
2WD |
|
4WD |
| Brand |
Flowmaster |
| Catalytic Converter Quantity |
0 |
| Category |
Exhaust |
| Clamping Type |
U-Bolt |
| Clamps Included |
Yes |
| Emission Code |
5 |
| Exhaust Series |
American Thunder |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Tip Connection |
Welded |
| Exhaust Tip Cut |
Angled |
| Exhaust Tip Diameter |
3.00 IN |
| Exhaust Tip Edge |
Slash Cut |
| Exhaust Tip Finish |
Polished |
| Exhaust Tip Intercooled |
No |
| Exhaust Tip Length |
12.875 IN |
| Exhaust Tip Material |
304 Stainless Steel |
| Exhaust Tip Quantity |
2 |
| Exhaust Tip Resonated |
No |
| Exhaust Tip Shape |
Round |
| Exhaust Tip Wall |
Single Wall |
| Exit Position |
Dual Same Side Exit |
| Exit Style |
Dual Out Same Side |
| Finish |
Aluminized |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| Hangers Included |
Yes |
| Heat Shield |
No |
| Inlet Diameter |
3.00 IN |
| Inlet Type |
Flanged |
| Main Piping Diameter |
2.50 IN |
| Material |
Aluminized Steel |
| Mounting Bracket Included |
No |
| Muffler Body Height |
5.00 IN |
| Muffler Body Length |
13.50 IN |
| Muffler Body Material |
Aluminized Steel |
| Muffler Body Shape |
Oval |
| Muffler Body Width |
10.00 IN |
| Muffler Finish |
Black High-Temperature Paint Finish |
| Muffler Flanged Inlet |
No |
| Muffler Flanged Outlet |
No |
| Muffler Inlet Connection |
Slip-Fit |
| Muffler Inlet Inside Diameter |
3.00 IN |
| Muffler Inlet Outside Diameter |
3.13 IN |
| Muffler Outlet Connection |
Slip-Fit |
| Muffler Outlet Quantity |
2 |
| Muffler Part Number |
Kit Only |
| Muffler Quantity |
1 |
| Muffler Series |
Super 40 Series |
| Muffler Type |
Chambered |
| Outlet Diameter |
2.50 IN |
| part type |
Exhaust System Kit |
| Pipe Material |
Aluminized Steel |
| Product Type |
Exhaust System |
| Single Dual |
Dual |
| Sound Level |
Aggressive |
| Spring Bolt Kit Included |
No |
| Sub Category |
Exhaust and Tail Pipes |
| System Type |
Cat-back |
| Tail Pipe Outlet Outside Diameter |
2.50 IN |
| Tail Pipe Quantity |
2 |
| Tail Pipe Tapered Outlet |
No |
| Tip Diameter |
3.00 IN |
| Tip Quantity |
2 |
| Tip Shape |
Round |
| Tubing Diameter |
2.50 IN |
| Type |
Cat-Back |
| Valve Included |
No |
| Valve Type |
Not Applicable |
| UPC |
700042019779 |
