BorgWarner Turbo S400SX SX 74.5mm (100/83)

179174

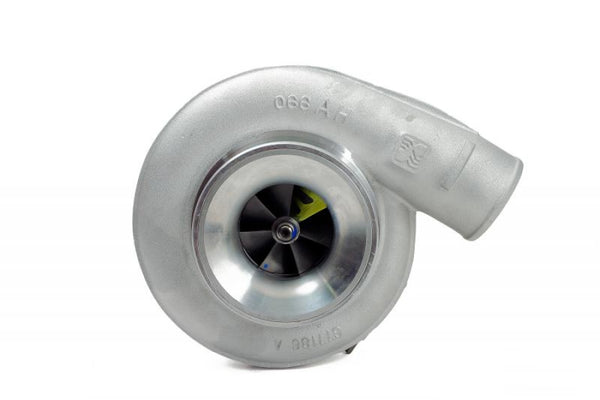

BorgWarner S474SX aka 10087 74.56mm S400SX (179174)

The 74.56mm S400SX3 is BorgWarner’s answer to offering exceptionally high value and ultra high performance turbos to the sport compact market. Using a 7-blade Extended Tip compressor wheel w/ 74.56mm inducer and 100.17mm exducer, this turbocharger is often called “S474” or “S475” and is ideal for people who require more airflow than the S400SX 71mm can deliver, but on the 87.37mm turbine wheel. Recommended for use in high power and high boost 750-1050+ whp applications.

The S400SX turbos share identical fitment as GT42R on T4 Divided turbine flange. Available with a 1.10 A/R turbine housing OR upgradeable to a 1.25 A/R for extremely high boost operations and if extra exhaust flow is required. Full-Race strongly recommends using an upgraded transmission! Journal Bearing and Oil Cooled only (Watercooling and BB CHRA not applicable).

Compressor Specifications

• Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
• Compressor Wheel OD (exducer): 100.17mm
• Compressor Wheel Inducer: 74.56mm
• Max Flow Rate: 103 lb/min
• Compressor Housing Connections:
  • Inlet: 5.5″ Hose Coupler
  • Outlet: 3″ Hose Coupler

Turbine Specifications

• Turbine Type: Inconel S400SX Turbine Wheel
• Turbine Wheel OD: 87.37mm
• Housing Material: D5S sandcast
• Housing Size and A/R ratio: S400SX 10087 (S474) is available in four (4) different turbine housing configurations:
  • 0.90 A/R T4 Single Scroll
  • 1.00 A/R T4 Twin Scroll
  • 1.10 A/R T4 Twin Scroll
  • 1.25 A/R T4 Twin Scroll (Recommended for 30+psi Boost Levels)
  •
