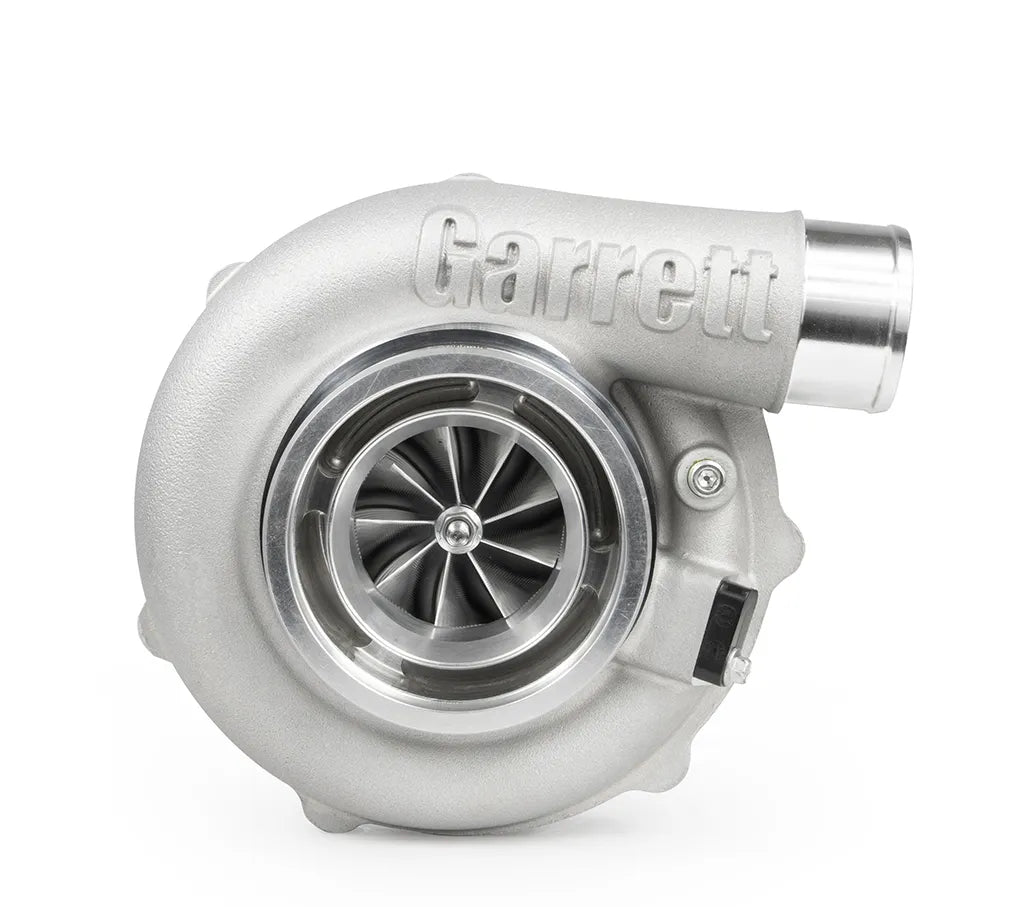

G-Series II G30-825 Turbo Standard Rotation 58MM Comp Ind 0.83A/R V-Band Turbine Inlet V-Band Turbine Outlet

roduct Description

Whether you’re a kit maker or an owner of a high-performance vehicle, now you can harness the power of motorsport legends and experience the durability of champions in your car with the NEW G-Series II universal Performance Turbos line from Garrett. Designed with the same quality and craftmanship that has powered motorsport legends for over 4 decades. G-Series II turbochargers are available in multiple frame sizes to suit your individual needs, whether as a complete new turbo or as a CHRA swap to upgrade your G-Series I Turbo.

Key Features

• G-Series II G30-825 standard rotation turbo is fully assembled and calibrated with a 0.5 bar actuator
• New compressor aero technology increases power and performance
• Direct upgrade path for Gen I customers with just a CHRA purchase
• G-Series II utilizes Gen I compressor and turbine housings
• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
• Engine calibration required to take advantage of increased flow for a horsepower upgrade
• 58mm Compressor Inducer | 71mm exducer
• Increased efficiency at high flow rates
• Mar-M alloy turbine wheel rated up to 1050° C
• Complete assembly with 0.83 V-Band Stainless steel turbine housing, rated up to 1050° C
• Oil restrictor and water fittings included
