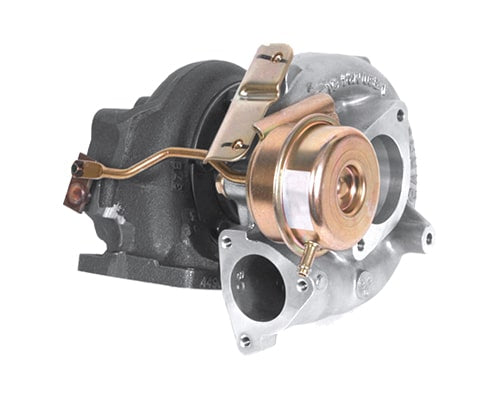

Garrett GT2560R Turbocharger
Garrett

Garrett GT2560R Turbocharger

$1,149.64
Shipping calculated at checkout.
 More payment options

836023-5004S

GT2560R Turbocharger

Horsepower: 170 - 270



Displacement: 1.4L - 2.2L

Features

  • ORIGINAL GT SERIES AERODYNAMICS
  • 46mm TURBOCHARGER COMPRESSOR OPTION
  • INTERNALLY WASTEGATED TURBINE HOUSING
  • SOLD AS A COMPLETE TURBO (INCLUDES TURBINE KIT & ACTUATOR)
  • BALL BEARING CONFIGURATION WITH WATER COOLED CHRA
Wastegate Location:
Internal
Compressor Wheel Inducer Size:
46.00mm
Turbine Wheel Exducer Size:
42.00mm
Compressor Wheel Trim:
60.00
Turbine Wheel Trim:
62.00
Compressor Housing A/R Ratio:
0.80
Turbine Housing A/R Ratio:
0.64

Compressor Map & Exhaust Flow Chart

Compressor Map

Exhaust Flow Chart
