Synergy 2018+ Jeep Wrangler (JL/JU) Rear Track Bar Relocation Bracket

The Synergy JL / JLU Rear Track Bar Relocation Bracket is an integral part of the system and contributes to improved handling and reduced body roll. In addition, it prevents interference limitations due to the increased wheel travel available with Synergy full suspension kits paired with the correct shocks. This Bracket is designed to tie into the stock track bar bracket in multiple locations to increase strength while optimizing your rear end suspension geometry.

Fitments:

• 2018+ Jeep Wrangler JL / JLU (All Models)

• Features:

  • Laser cut and CNC formed from a combination of 3/16 and 1/4 inch steel for the optimum combination of strength, durability, and performance
  • No U-bolts
  • No cutting or drilling required
  • Features an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
  • 100 percent bolt-on components assures an easy, trouble free installation with the use of basic hand tools


Benefits:

• Centers rear axle without requiring a new track bar for 2-3 inch lifts
• Improves rear track bar geometry to reduce the rear end wag experienced with a steep track bar angle
• Reduces body roll and improves handling
• Prevents interference between the rear driveshaft and gas tank skid when used with long travel shocks
• Raises rear track bar mounting location on the axle by 3.25 inches to raise the vehicle's roll center
• Ties into stock track bar bracket in multiple locations for improved strength and durability

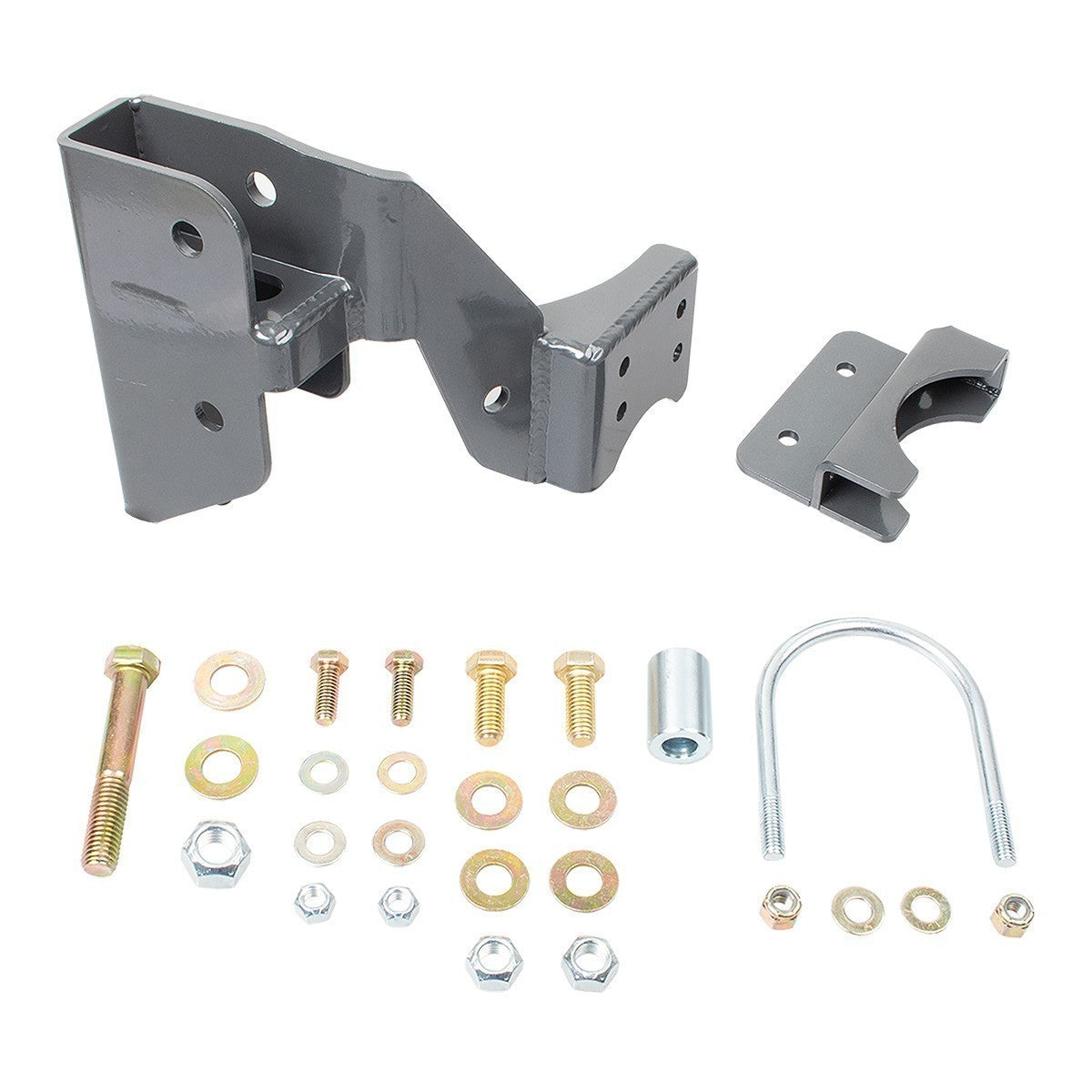

Includes:

• (1) Axle side raised rear track bar bracket (mail)
• (1) Axle side raised rear track bar bracket U-bolt Mount
• (1) U-bolt 1.58" radius x 4.38"
• (1) Track bar bushing sleeve
• (1) Hardware kit

Notes:

• Supersedes 8856-01
• Must run a minimum 2 inches of bump stop spacing
• Adjustable rear track bar recommended to be added for lifts 3 inches and taller
