CX Racing Turbo Kit (Intercooler wastegate , BOV) FOR 76-86 JEEP CJ 7 5 6 8 4.2L AMC

• Product Code: TRB-KIT-CJ

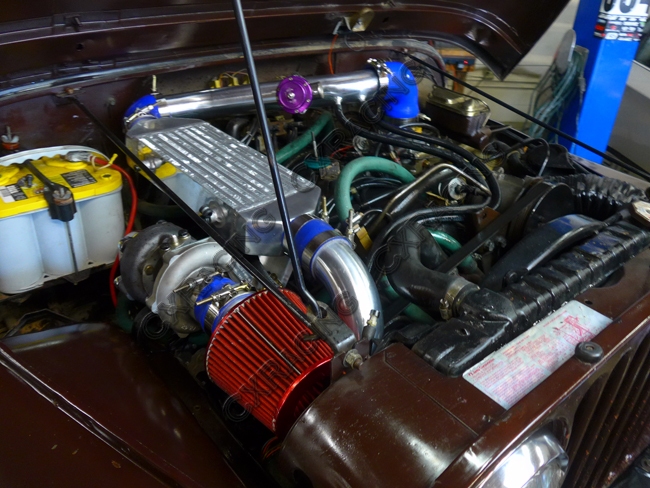

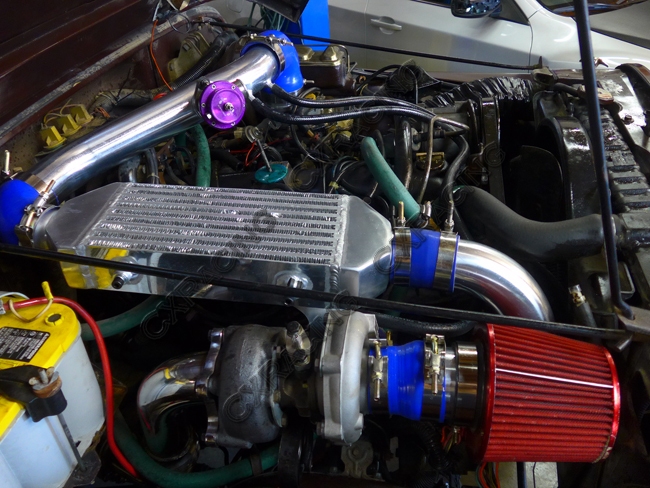

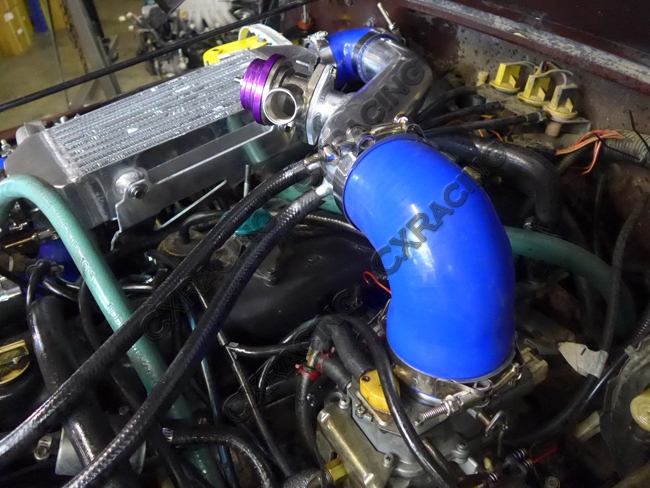

CXRACING TURBO KIT FOR 76-86 JEEP CJ 7 WITH 4.2L AMC I6 CARBURETED MOTOR

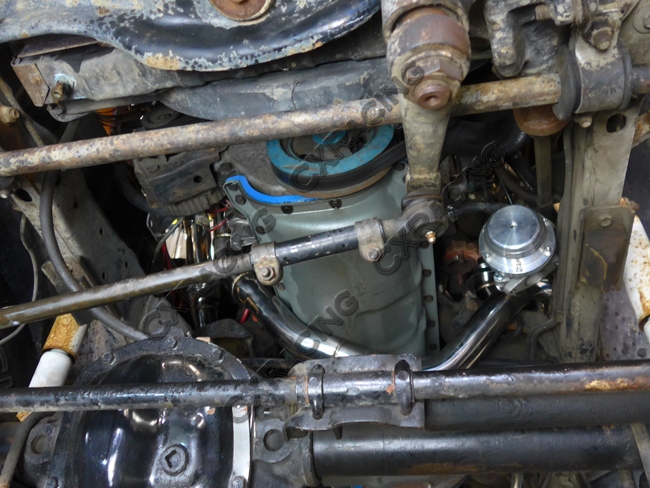

Using Existing Engine Exhaust Header, Connects to This Kit's Cross Pipe.

T3 Turbo, 38mm 8 PSI Wastegate, Comes with Intercooler Kit and BOV

This Kit Makes 138 WHP (to the Wheel), 245 Ft-lbs Torque at 5 PSI Boost, Compare to 72WHP and 133 Ft-lbs Stock Power, It Almost Doubled Factory Power. See Dyno Sheet Below.

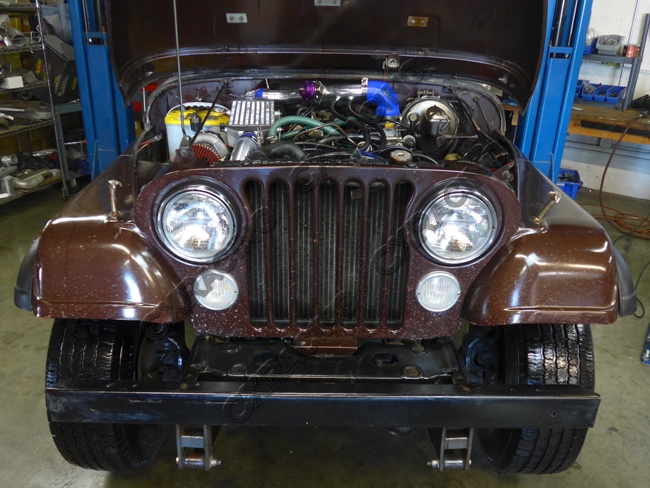

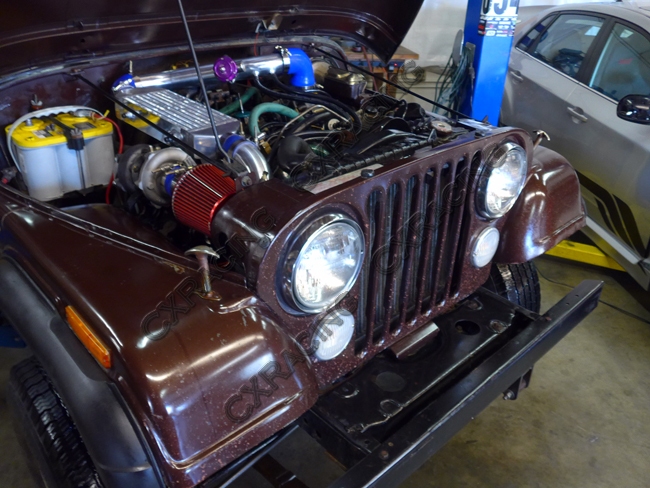

This Kit Is Based Off A CJ 7, But Should Fit CJ 5, 6, 8. However, We Have Not Tested It on CJ 5, 6, 8. Small Modification Might Be Needed.


APPLICATION:
- Chassis: 76-86 Jeep CJ
- Motor: 4.2 L AMC I6, Carbureted

PRODUCT BEING SOLD:
Header Cross Pipe + Turbo + Wastegate + Intercooler (with Mounting Bracket) + Piping + Silicon Hoses + Clamps + BOV + Oil Line Kit


PRODUCT INFO AND SPEC:
TURBO AND WASTEGATE:
- 2.75" Air Inlet, 2" Turbo Outlet
- Wet Floating Bearings
- Oil Cooled
- Standard T3 Flange
- .42 A/R Compressor
- 63 A/R Turbine
- 38 mm 8 Psi Wastegate

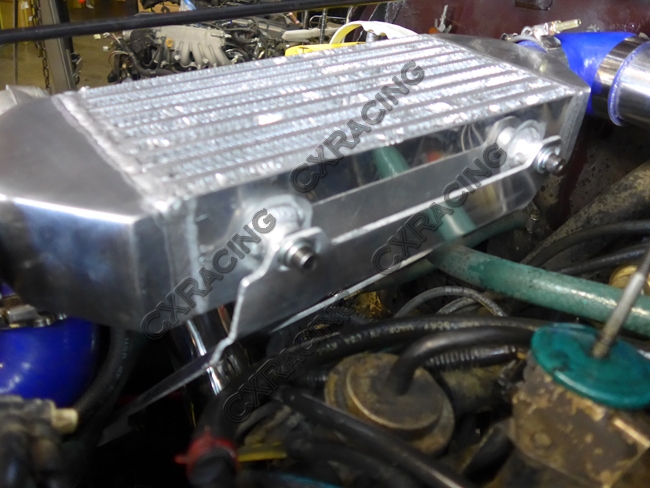

INTERCOOLER：
- Bar & Plate Aluminum Intercooler
- Core Size: 12"x6"x2.5"
- Overall Size: 19.5"x6"x2.5"
- 2.5" Inlet & Outlet
- 2.5" Thickness Core
- Comes with Mounting Brackets

PIPING KIT:
- 2.5" Aluminum Polished Piping kit, with Silicon Hoses and T-Clamps
- Comes with BOV and Turbo Air Filter

　

ITEMS_INCLUDED:
- Turbo
- Intercooler
- Aluminum Mounting Bracket
- Aluminum Polished Piping kit, with Silicon Hoses and T-Clamps
- BOV
- Air Filter
- Wastegate
- Oil Line Kit
