Manley Ford 4.6L/5.4L SOHC/DOHC (2v/4v)3.582in Bore 18cc Spherical Dish Piston Set

Ford 4.6L/5.4L SOHC/DOHC 2/4 Valve Platinum Series Pistons - Set of 8 by Manley Performance

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower.

Features

• 2618 high strength material lightweight design
• 1.2mm offset wrist pin design for quiet start-ups. Mimics OEM design
• Round wire locks
• Perfect ring groove to skirt squareness
• Pressure balance groove
• 1.5, 1.5, 3.0mm ring package
• 2.500” x .150” wall Premium Chrome Moly pin (Standard Series) included
• 9310 alloy .210” wall pin (Extreme Duty Series) included P/N 42507
• Full banded skirt design for increased skirt stability

Benefits

• "Contour forgings" provide the optimum balance between strength and weight with no grain-interrupting internal milling.
• Proprietary multi-step top ring groove machining process assures optimum control of the groove's size, geometry, flatness, and finish.
• All final turning is performed in one fixturing resulting in complete squareness of rings to the cylinder wall.
• Federal Form-Scan gauging validates ideal skirt indexing to pinhole and skirt-to-skirt polarity.
• Value - added features such as a pressure balance groove included in all series.
• Precise pinhole machining results in an exact compression distance as well as precise lock ring groove spacing, size, and concentricity.

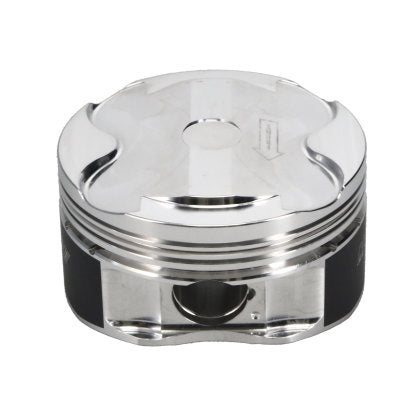

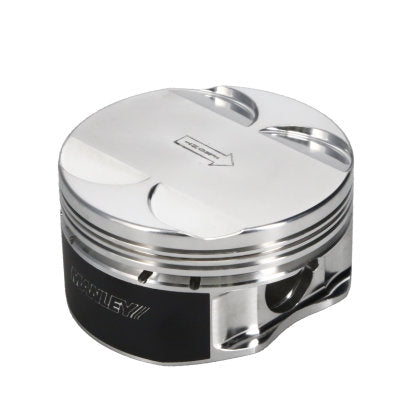

Please Note: The image provided is generic and may not be an accurate representation of the product you will receive

Applications

• 1997-2000 Ford F-150 Base
• 2007-2008 Ford F-150 FX2
• 2005-2008 Ford F-150 FX4
• 2002-2003,2006-2008 Ford F-150 Harley-Davidson Edition
• 2005-2008 Ford F-150 King Ranch
• 2005-2008 Ford F-150 Lariat
• 1999-2003 Ford F-150 Lightning
• 2008 Ford F-150 Limited
• 2005-2008 Ford F-150 XL
• 2005-2008 Ford F-150 XLT
• 2008 Ford F-250 Super Duty FX4
• 2006-2008 Ford F-250 Super Duty King Ranch
• 2006-2008 Ford F-250 Super Duty Lariat
• 2006-2008 Ford F-250 Super Duty XL
• 2006-2008 Ford F-250 Super Duty XLT
• 2008 Ford F-350 Super Duty FX4
• 2006-2008 Ford F-350 Super Duty King Ranch
• 2006-2008 Ford F-350 Super Duty Lariat
• 2006-2008 Ford F-350 Super Duty XL
• 2006-2008 Ford F-350 Super Duty XLT
• 2005-2006 Ford GT Base
• 1996-2004 Ford Mustang GT
• 2007-2008 Ford Mustang Shelby GT500
• 1999,2001 Ford Mustang SVT Cobra
• 2000 Ford Mustang SVT Cobra R
