Tomei

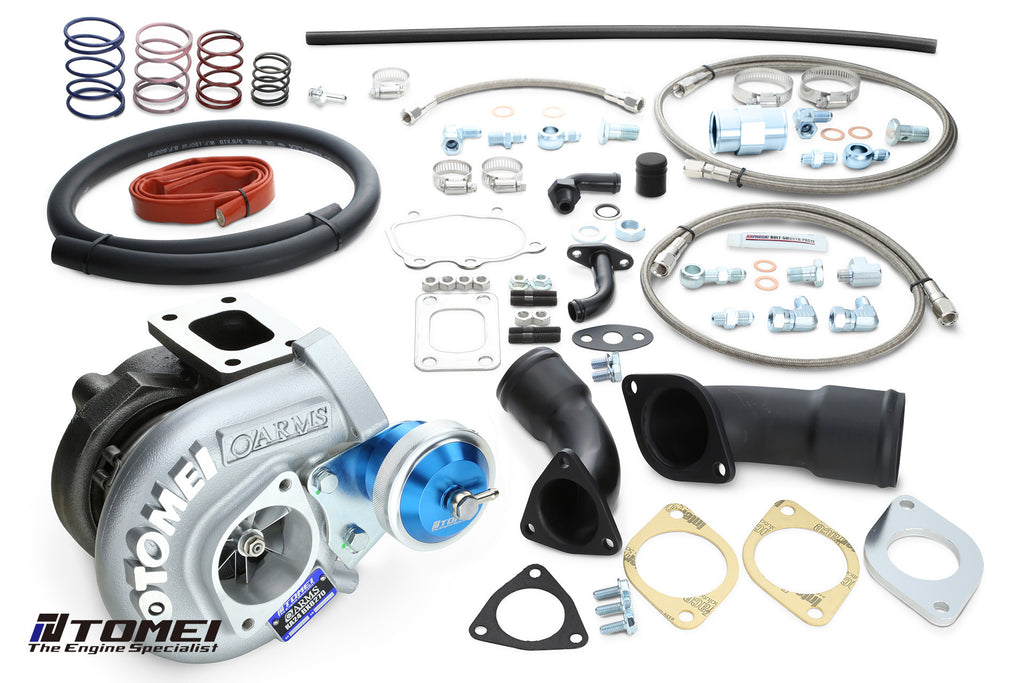

Tomei ARMS Ball Bearing Turbocharger Kit with Billet Actuator for Nissan KA24DE 1989-1998

$1,891.25

Shipping calculated at checkout.

TB403A-NS16D

Item Description

B/B TURBOCHARGER KIT ARMS BX8270 KA24DE
TARGET HP (HP)	450
BEARING TYPE	BALL BEARING
INITIAL BOOST SETTING (kgf/cm2)	1.0

COMPRESSOR WHEEL
ⒶIND(mm)	59.0
ⒷEXD(mm)	76.2
TRIM	60
BLADES	6/6
MATERIAL	A2618
PRODUCTION	CNC BILLET

TURBINE WHEEL
ⒸEXD(mm)	58.8
ⒹIND(mm)	67.0
TRIM	77
BLADES	9
MATERIAL	K418
PRODUCTION	CAST

COMPRESSOR HOUSING
IND(mm)	60.0
EXD(mm)	38.5
A/R	0.62

TURBINE HOUSING
IND(mm)	T25
EXD(mm)	SR20DET
A/R	0.57
