Wilwood

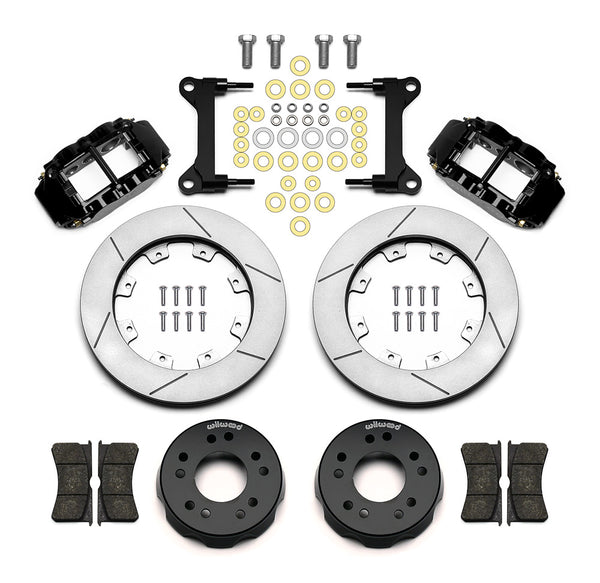

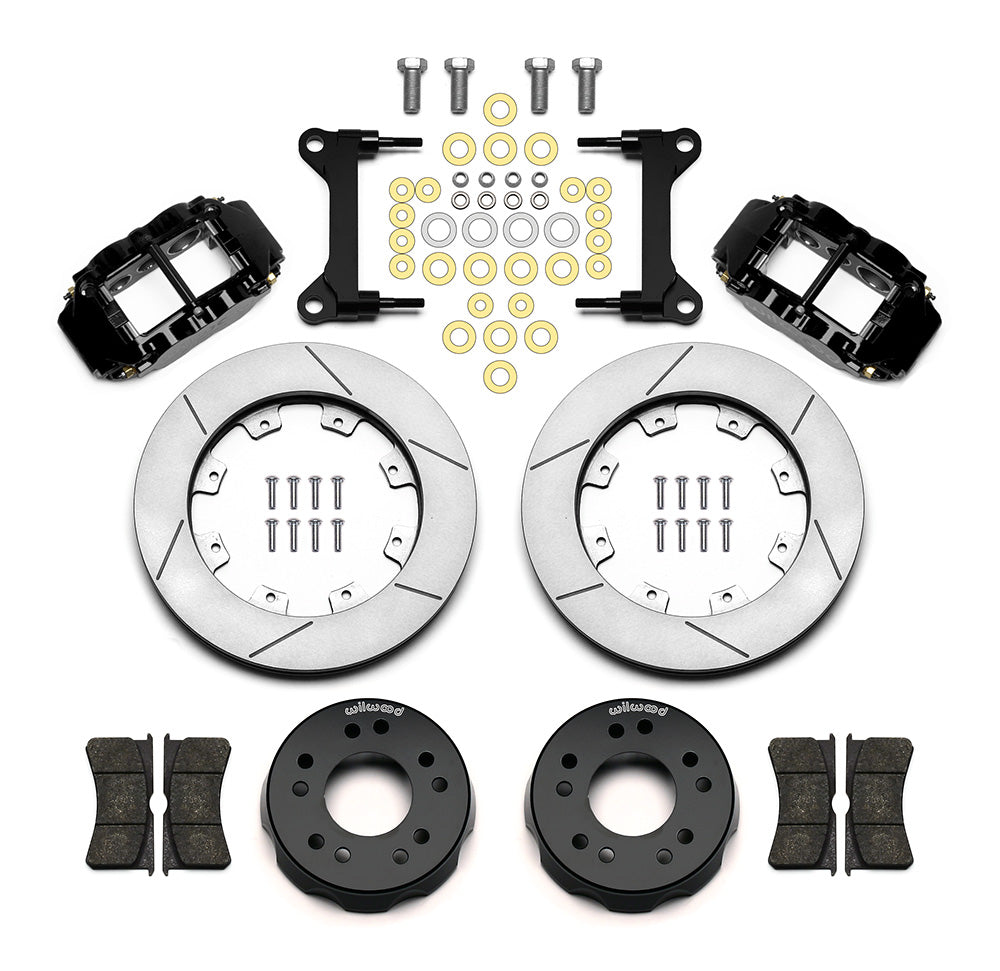

Wilwood Narrow Superlite 6R Front Kit 12.19in 63-87 C10 w/ Wilwood Pro Spindles

$1,286.07

Shipping calculated at checkout.

140-15302

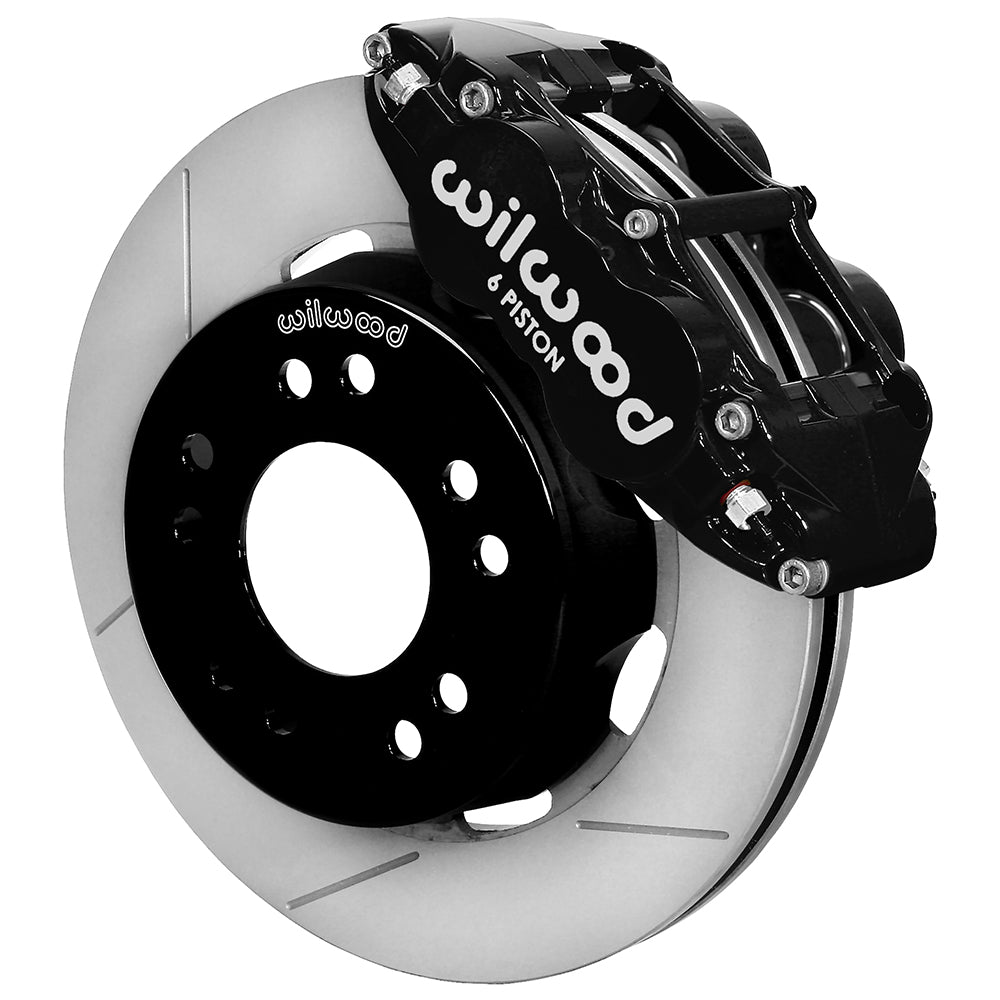

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

Kit Summary
OE Hub Offset:	+0.41
(Increase / Decrease Track Width)
Spindle Type:	Drop Spindle
Mount Type:	Radial
Caliper Type:	6 - Black Powder Coat
Rotor Diameter:	12.19
Min Wheel Diameter Req'd*:	15

VEHICLE MAKE

VEHICLE MODELS

Chevrolet

Chevrolet Blazer 1970-1974 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

Chevrolet

Chevrolet C10 1975-1986 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

Chevrolet

Chevrolet C10 Panel 1963-1967 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

Chevrolet

Chevrolet C10 Pickup 1963-1974 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

Chevrolet

Chevrolet C10 Suburban 1967-1986 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

Chevrolet

Chevrolet K5 Blazer 1975-1982 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

Chevrolet

Chevrolet R10 Pickup 1987 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

Chevrolet

Chevrolet R10 Suburban 1987 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

Chevrolet

Chevrolet Suburban 1963-1966 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

GMC

GMC 1000 1966 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

GMC

GMC 1000 Series 1963-1965 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

GMC

GMC C15 1975-1978 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

GMC

GMC C15 Suburban 1975-1978 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

GMC

GMC C15/C1500 Suburban 1967-1974 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

GMC

GMC C1500 Pickup 1967-1986 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

GMC

GMC C1500 Suburban 1979-1986 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

GMC

GMC Jimmy 1970-1982 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

GMC

GMC R1500 Pickup 1987 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

GMC

GMC R1500 Suburban 1987 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

GMC

GMC Suburban 1963-1966 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only

Wilwood

Wilwood GM C10 Alum Modular ProSpindle 1963-1970 9999 Wilwood Aluminum Modular Pro Spindles, 5 Lug only

Wilwood

Wilwood GM C10 Alum Modular ProSpindle 1971-1987 9999 Wilwood Aluminum Modular Pro Spindles, 5 Lug only

Wilwood Narrow Superlite 6R Front Kit 12.19in 63-87 C10 w/ Wilwood Pro Spindles
